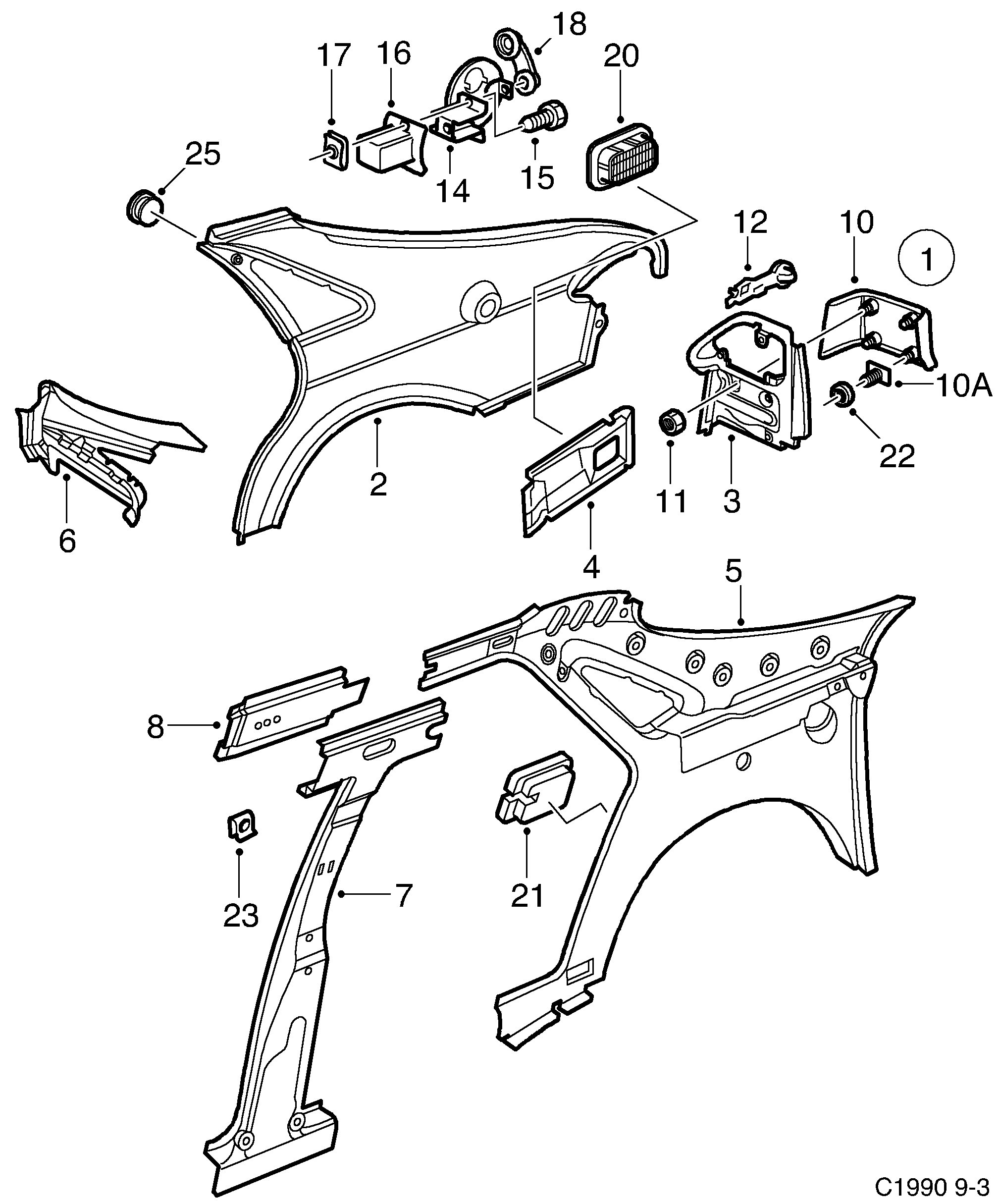

Group 8a Car body, external, section 520
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 4338117 |
| 1 | Valance | 4921565 |
| 2 | Valance | 4337838 |
| 2 | Valance | 4337846 |
| 3 | Attaching frame | 4337853 |
| 3 | Attaching frame | 4337861 |
| 4 | Filling-in plate | 4337879 |
| 4 | Filling-in plate | 4921524 |
| 5 | Valance | 4338018 |
| 5 | Valance | 4338026 |
| 5 | Valance | 4924692 (replaces 4923512) |
| 5 | Valance | 4924700 (replaces 4923520) |
| 5 | Valance | 4924692 |
| 5 | Valance | 4924700 |
| 6 | Reinforcement | 4337911 |
| 6 | Reinforcement | 4337929 |
| 7 | B-pillar | 4338794 |
| 7 | B-pillar | 4338802 |
| 8 | Cover plate | 4339297 |
| 8 | Cover plate | 4339305 |
| 8 | Cover plate | 4924270 (replaces 4923496) |
| 8 | Cover plate | 4924288 (replaces 4923504) |
| 8 | Cover plate | 4924270 |
| 8 | Cover plate | 4924288 |
| 10 | Corner filler panel | 4913414 |
| 10 | Corner filler panel | 4913406 |
| 10A | Screw | 4596979 |
| 11 | Nut | 11900451 (replaces 7977929) |
| 12 | Bracket | 4959029 (replaces 4958252) |
| 12 | Bracket | 4959037 (replaces 4958245) |
| 12 | Bracket | 4959029 |
| 12 | Bracket | 4959037 |
| 14 | Tank hatch | 5185731 (replaces 4766572) |
| 14 | Tank hatch | 5185731 |
| 15 | Hexagon screw | 92153149 (replaces 7983000) |
| 16 | Cover | 4306619 |
| 17 | Clip nut | 4858643 |
| 20 | Exhaust grille | 4541579 |
| 21 | Seal | 4340196 |
| 22 | Washer | 7981954 |
| 23 | Clip nut | 92150164 (replaces 7972573) |
| 25 | Plug | 92150200 (replaces 7982762) |
