Saab 9-3 (9400) 1998-2003 Hydraulic system Convertible

Group 8a Car body, external, section 370

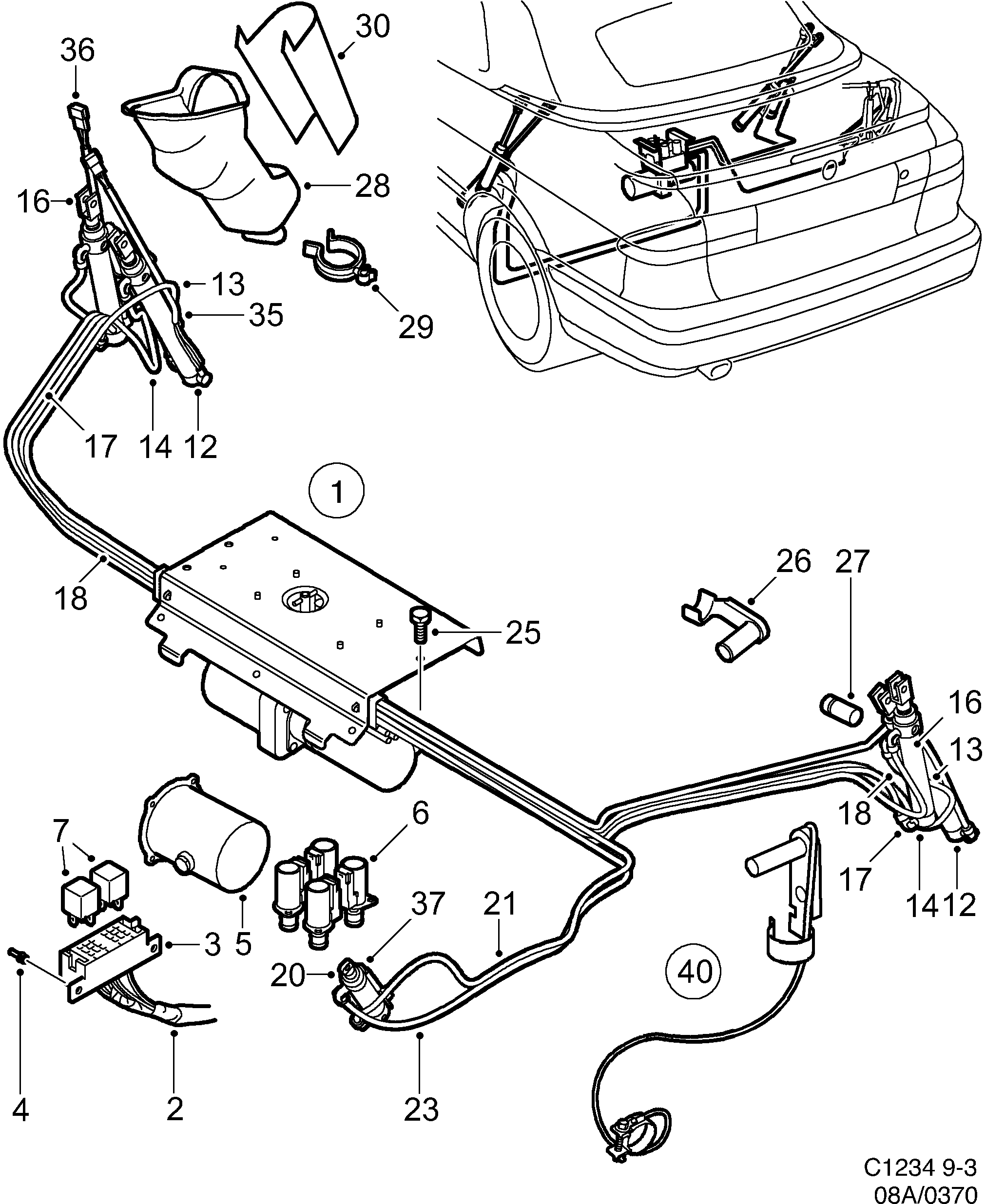

Saab 9-3 (9400) Hydraulic system Convertible diagram

Pos	Article	Part No.
1	Drive unit	4859807
2	Cable harness	4856720
3	Connector housing	9124199
4	Rivet	4448973
5	Reservoir	5360227
6	Pressure control solenoid	5360201
12	Hydraulic cylinder	5363122 (replaces 5116538)
12	Hydraulic cylinder	5363122
12	Hydraulic cylinder	5363130 (replaces 5113568)
12	Hydraulic cylinder	5363130
13	Hose	4856514
13	Hose	4856522
14	Hose	4856530
14	Hose	4856548
16	Hydraulic cylinder	5363148 (replaces 5113576)
16	Hydraulic cylinder	5363148
16	Hydraulic cylinder	5363155 (replaces 5113584)
16	Hydraulic cylinder	5363155
17	Hose	4856555
17	Hose	4856563
18	Hose	4856571
18	Hose	4856589
20	Hydraulic cylinder	5363163 (replaces 5113535)
20	Hydraulic cylinder	5363163
21	Hose	4856597
23	Hose	4856605
25	Screw	92150012 (replaces 7978182)
26	Clip	4853081
28	Drain cover	4823118
29	Clamp	7398407
30	Cover	5433883
35	Cable harness	4856662
36	Cable harness	4856670
37	Cable harness	4856688
	O-ring	5113352
	O-ring	5113360
40	Ground cable	5360581
	Ground cable	5360854
	Blind rivet	92153058 (replaces 92150177)
	Hose clamp	7968282
	Clutch kit	12833536 (replaces 5361001)
