Saab 9-3 (9400) 1998-2003 Tonneau cover Part 1

Group 8a Car body, external, section 310

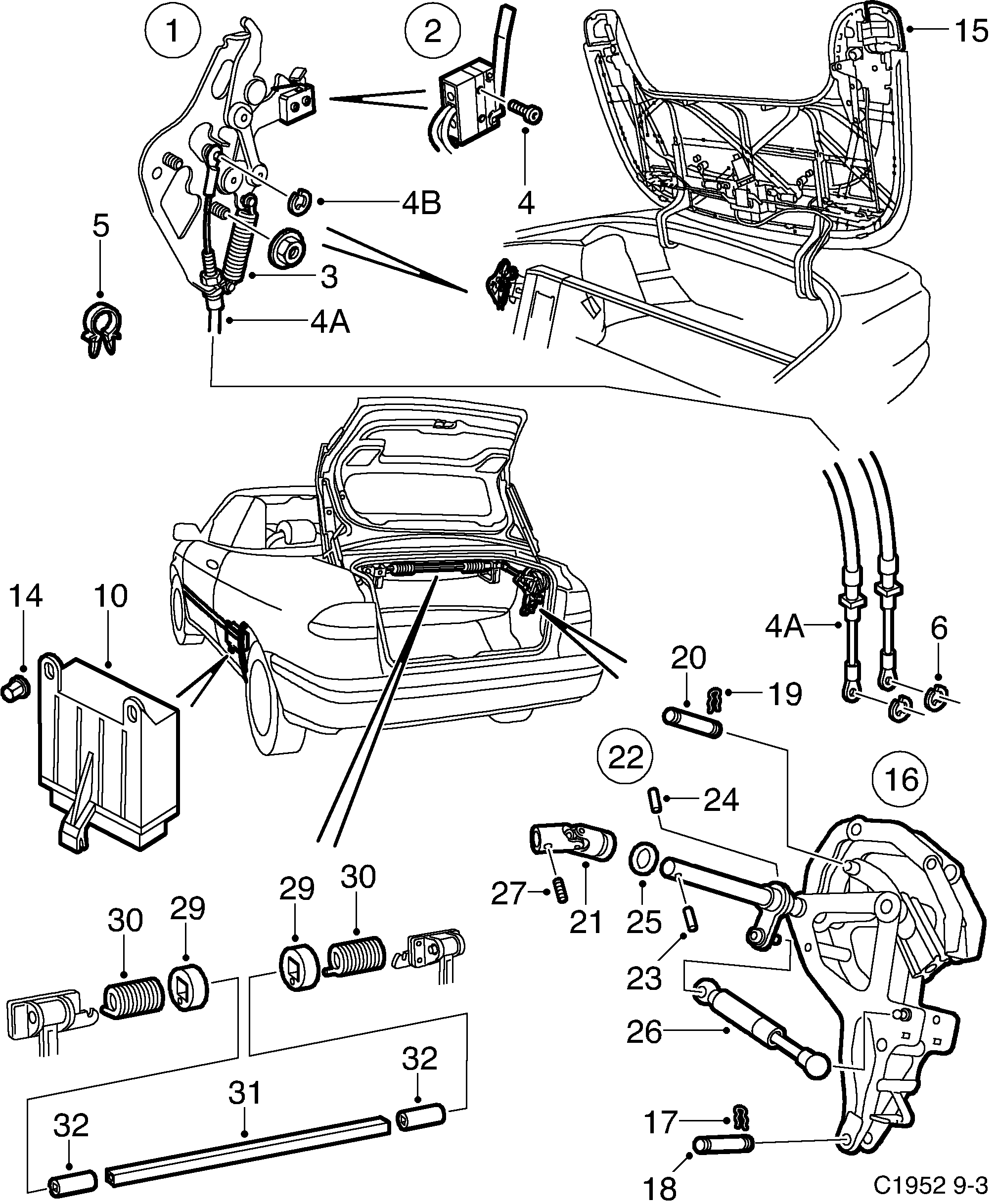

Saab 9-3 (9400) Tonneau cover Part 1 diagram

Pos	Article	Part No.
1	Lock	5184650
1	Lock	5184668
2	Microswitch	5184403
3	Tension spring	4558862
4	Screw	4559381
4A	Cable	5111653
4A	Cable	5111661
4B	Clip	8123440
5	Clip	8530917
10	Control unit	5360367 (replaces 5038575)
10	Control unit	5360367 (replaces 5182357)
10	Control unit	5360367
14	Plastic nut	92152035 (replaces 4087128)
16	Drive unit	5362710 (replaces 4768115)
16	Drive unit	5362710
17	Lock ring	5112362 (replaces 4855995)
17	Lock ring	5112362
18	Piston pin	4856019
19	Lock ring	4855987
20	Drum shaft	4856001
21	Universal joint	5362728 (replaces 4856027)
21	Universal joint	5362728 (replaces 5184221)
21	Universal joint	5362728
22	Service kit	5360912 (replaces 4613543)
22	Service kit	5360912
23	Shear pin	5184098
24	Lock pin	5184106
25	O-ring	8711707
26	Gas spring	5110119
27	Screw	7985963
29	Sleeve	4556296
30	Spring	4494514
30	Spring	4494522
31	Shaft	4492898
32	Pipe bracket	4557344
