Saab 9-3 (9400) 1998-2003 Bow 1, 2, 3, 4 and 5 Convertible

Group 8a Car body, external, section 280

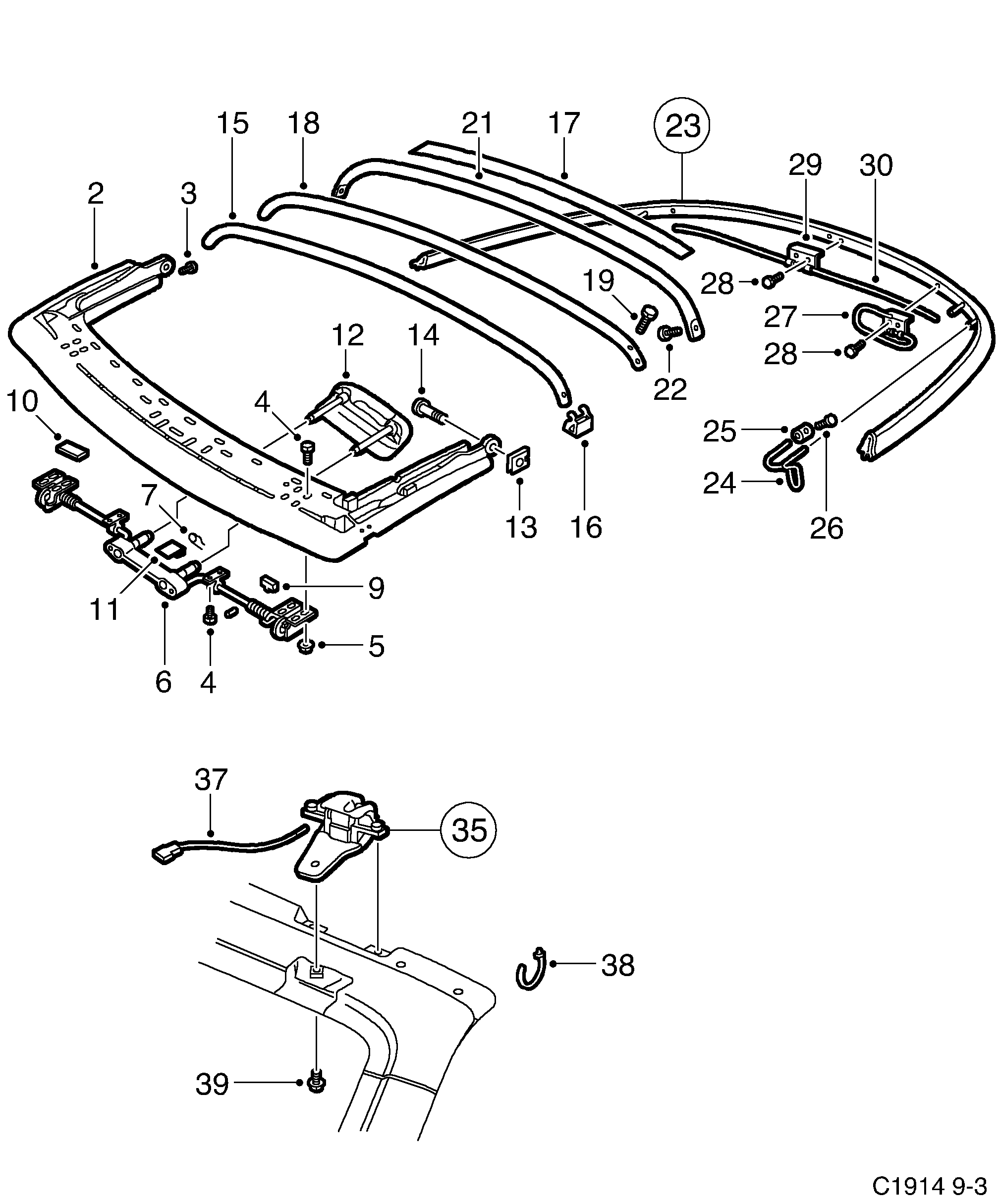

Saab 9-3 (9400) Bow 1, 2, 3, 4 and 5 Convertible diagram

Pos	Article	Part No.
2	Bow	4855888
3	Screw	5112479
4	Screw	8019911
5	Nut	11900451 (replaces 7977929)
6	Lock system	4855672
7	Locking pin	5112396
9	Magnet	4856126
10	Rubber damper	5181995
11	Clip	5182001
12	Handle	5184296 (replaces 4855680)
12	Handle	5184296
13	Clip	5112255
14	Bolt	5112222
15	Bow	4855896
16	Stop	5112206
17	Mounting strap	5360540
18	Bow	4855904
19	Screw	92151821 (replaces 8059552)
21	Bow	5360508 (replaces 4855912)
21	Bow	5360508
22	Screw	5112289
23	Bow	4855920
24	Striker	4855714
24	Striker	4855722
25	Lock ring	5112420
25	Lock ring	4924569
26	Screw	5112438
27	Hinge	5112453
27	Hinge	5112461
28	Screw	7978448
29	Holder	5112560
35	Lock fitting	4851556
35	Lock fitting	4851564
37	Sensor	4927984
38	Tie strap	8552663
39	Screw	7975451
