Saab 9-3 (9400) 1998-2003 Top cloth Convertible

Group 8a Car body, external, section 220

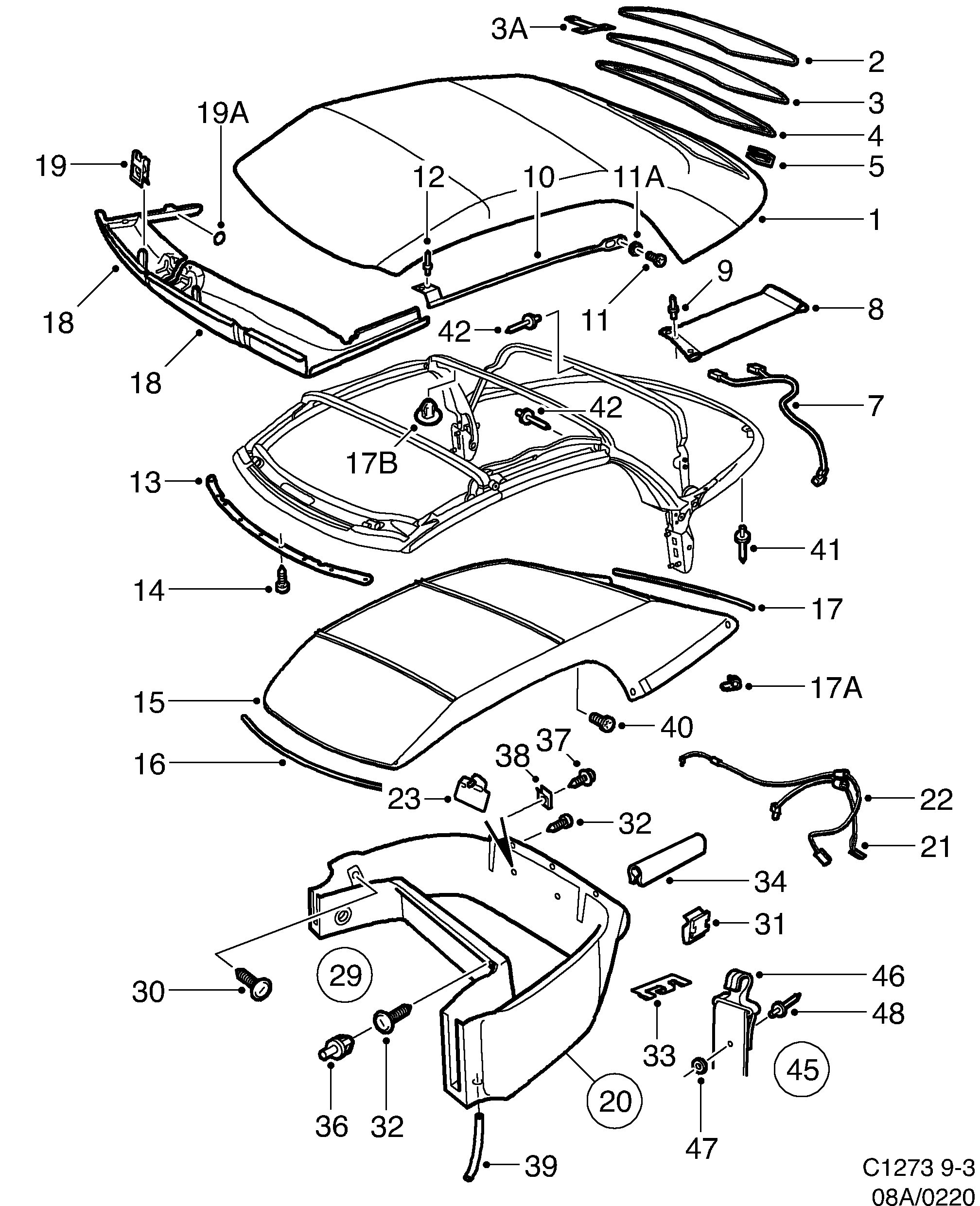

Saab 9-3 (9400) Top cloth Convertible diagram

Pos	Article	Part No.
1	Top cloth	5362579
1	Top cloth	5362587
1	Top cloth	5110101
2	Rear window frame	5362801 (replaces 5112628)
2	Rear window frame	5362801 (replaces 5360979)
3	Rear window	5184288 (replaces 5112602)
3	Rear window	5184288
3A	Connecting tab	5182985
4	Seal	5112610
5	Clip	5112636
	Mounting kit	5362561
7	Cable harness	4855805
7	Cable harness	30584249 (replaces 5183009)
8	Stay pad	4855730
8	Stay pad	4855748
9	Rivet	5112446
10	Cable	4855854
10	Cable	4855862
11	Screw	5112479
11A	Washer	5112487
13	Fixed plate	30577283 (replaces 5112511)
14	Screw	5116934
15	Headlining	4855771
15	Headlining	5363536
	Headlining	5362736
	Service kit	5363544
16	Wire rod	5112545
17	Wire rod	5360672 (replaces 5112552)
17	Wire rod	5360672
17A	Clip	5116819
17B	Clip	5112404
18	Cover	4855698
18	Cover	4855706
19	Clip	5111281
20	Cloth	5561105 (replaces 5293055)
20	Cloth	5561113 (replaces 5293063)
20	Cloth	5561121 (replaces 5292784)
20	Cloth	5294293
20	Cloth	5561113 (replaces 5294319)
20	Cloth	5561121 (replaces 5294301)
20	Cloth	5561105
20	Cloth	5561113
20	Cloth	5561121
21	Microswitch	4603213
22	Microswitch	4603221
23	Clip	4603239
29	Service kit	5436555
30	Clip	92152407 (replaces 9668153)
31	Clip	4087797
32	Clip	90283614
33	Clip	4685087
34	Protecting moulding	8564973
36	Clip	4823126
37	Hexagon screw	7978661
38	Clip	7399181
39	Draining hose	4510087
40	Screw	4767752
41	Rivet	5112537
42	Rivet	5116926
42	Rivet	4696894
45	Hook	4741971
46	Hook	4510053
47	Washer	8073090
48	Pop rivet	8235178
	Staple	6935712
	Tape	9288127
