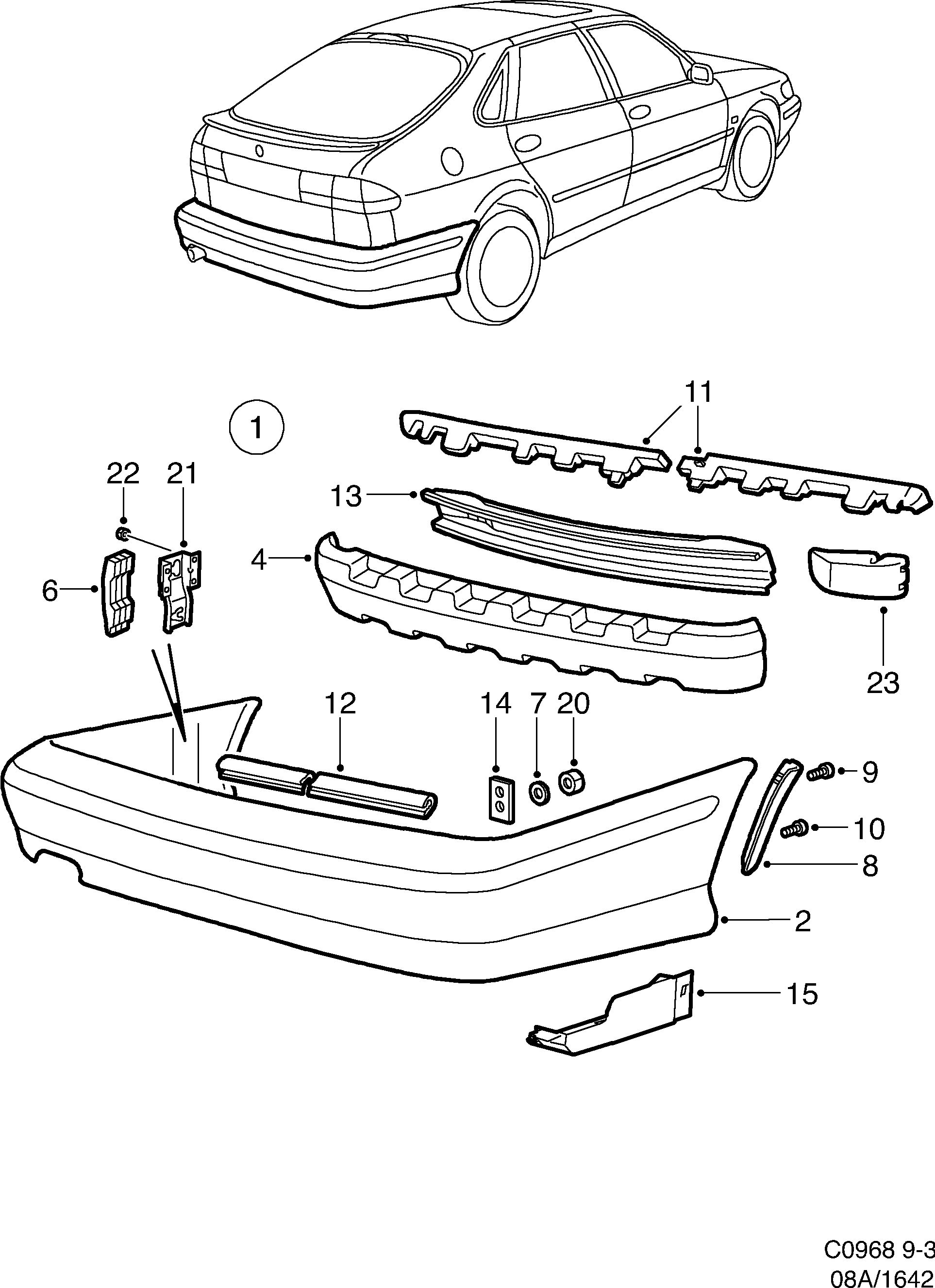

Group 8a Car body, external, section 1642
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 5332952 (replaces 5400239) |
| 1 | Bumper | 5332952 |
| 2 | Cover | 5400247 |
| 4 | Foam part | 4676508 |
| 6 | Retainer | 4675278 |
| 6 | Retainer | 4675286 |
| 7 | Seal | 9234055 (replaces 6992325) |
| 8 | Cover | 5289012 |
| 8 | Cover | 5289020 |
| 9 | Pop rivet | 4481834 |
| 10 | Screw | 7968084 |
| 11 | Support | 4914958 |
| 11 | Support | 4914966 |
| 12 | Moulding | 4959763 |
| 13 | Bumper rail | 4373510 |
| 14 | Spacer | 4399721 |
| 15 | Splash guard | 5332630 |
| 20 | Nut | 7967979 |
| 21 | Bracket | 4398632 |
| 21 | Retainer | 5332689 (replaces 4787040) |
| 21 | Retainer | 5332689 |
| 22 | Hexagon nut | 11900452 (replaces 7977952) |
| 23 | Support | 4916854 |
