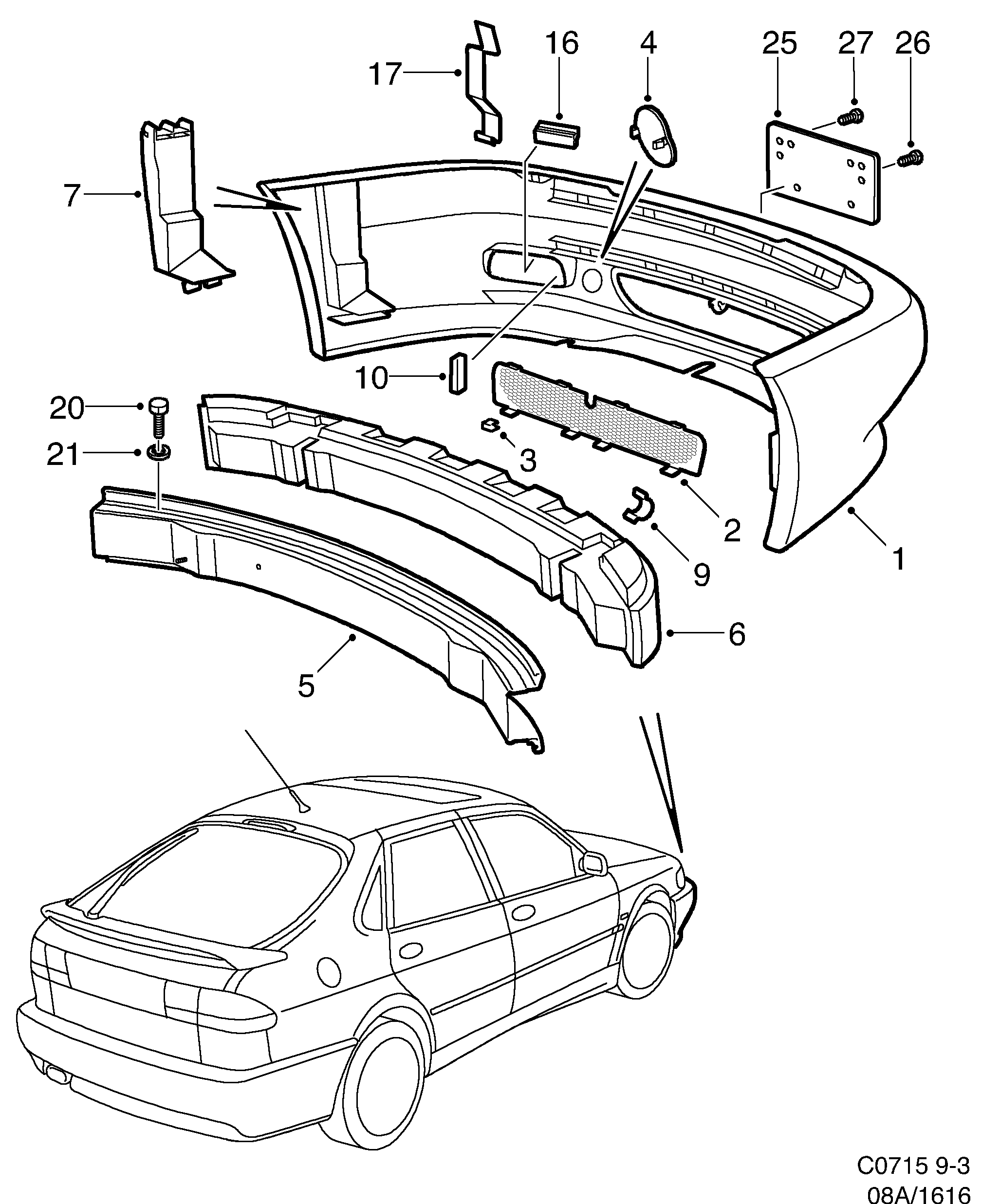

Group 8a Car body, external, section 1616
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 5120282 |
| 2 | Grille | 5400387 (replaces 5020458) |
| 2 | Grille | 5400387 |
| 3 | Clamp | 5283411 |
| 4 | Cover | 5124441 |
| 5 | Bumper rail | 4248712 |
| 6 | Foam part | 4676367 |
| 7 | Retainer | 5122668 |
| 7 | Retainer | 5122650 |
| 9 | Clip | 30550860 (replaces 4400644) |
| 10 | Seal | 5122692 |
| 16 | Adapter | 5123435 |
| 17 | Bracket | 4915252 |
| 20 | Screw | 7399884 |
| 21 | Washer | 8073108 |
| 25 | Bracket | 4562948 |
| 26 | Screw | 7922438 |
| 27 | Screw | 92153219 (replaces 7970601) |
