Saab 9-3 (9400) 1998-2003 Trunk lid lock

Group 8a Car body, external, section 1060

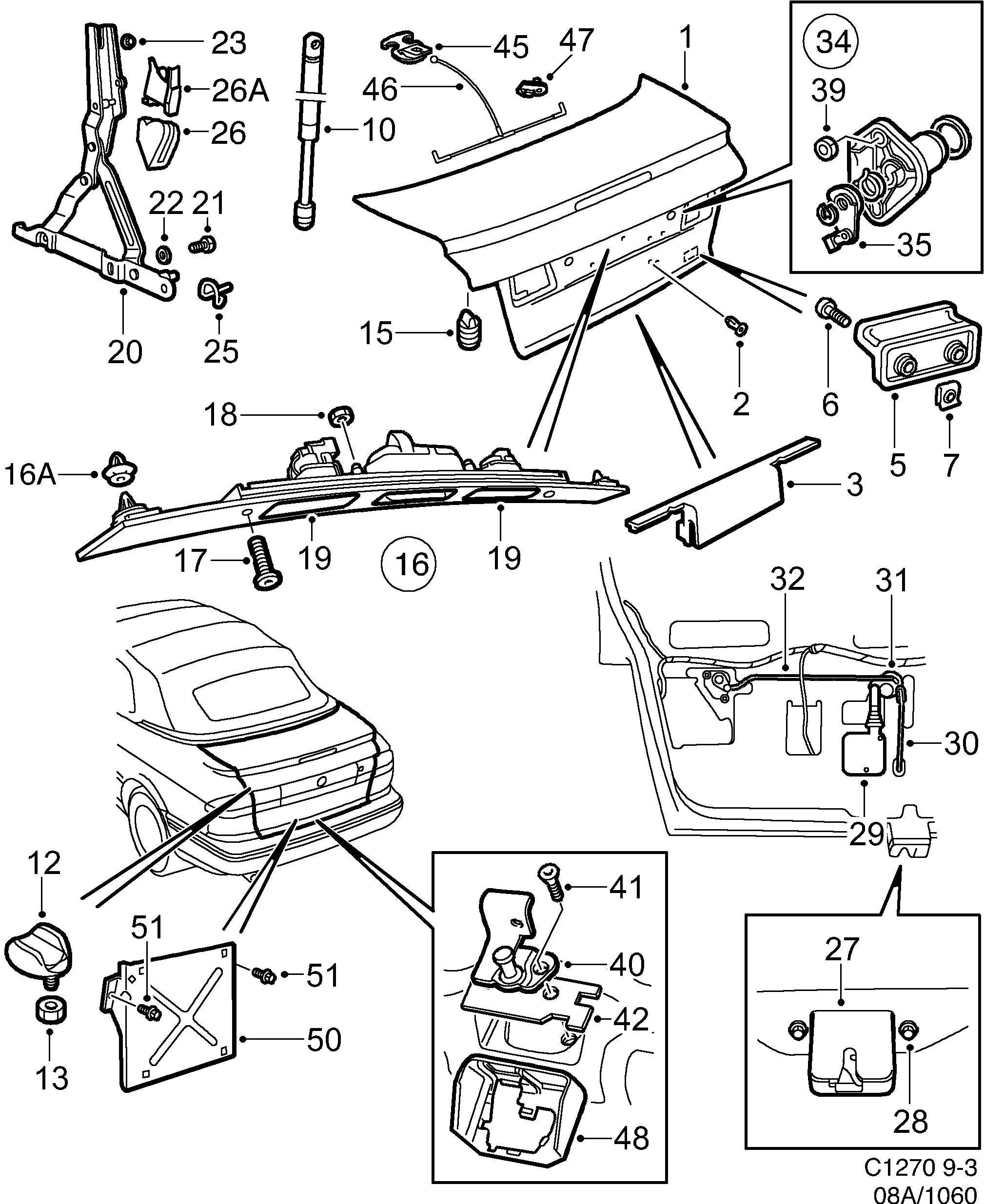

Saab 9-3 (9400) Trunk lid lock diagram

Pos	Article	Part No.
1	Trunk lid	5360722 (replaces 4851606)
1	Tail gate	5360722
2	Rivet nut	9130829 (replaces 7399454)
3	Theft protection	5360318 (replaces 4698452)
3	Theft protection	5360318
5	Handle	5332788 (replaces 9670548)
5	Handle	5332788
6	Screw	7977960
7	Clip nut	92150164 (replaces 7972573)
10	Gas spring	4854741
10	Gas spring	4854758
12	Side support	4323408
13	Nut	11900451 (replaces 7977929)
15	Rubber buffer	4851374
16	Outside handle	5360904 (replaces 4766523)
16	Outside handle	5360904
16A	Clip	5111950
17	Screw	92151601 (replaces 7978430)
20	Hinge	4851713
20	Hinge	4851721
21	Screw	55566034 (replaces 7978190)
21	Screw	12768930 (replaces 4940045)
22	Washer	7061328
23	Hexagon nut	11900452 (replaces 7977952)
25	Clip	4558060
26	Stop, shoulder	4558045
26	Stop, shoulder	4558052
26A	Clip	5332739
26A	Clip	5332747
27	Lock	4327383
28	Screw	11900354 (replaces 7978109)
30	Rod	4850269
30	Rod	5360383
31	Pivot arm	4851929
32	Rod	4766143
35	Clip	4859344
35	Clip	4346110
40	Striker	4326450
41	Screw	4087763
42	Spacer	4856431
45	Handle	5362702 (replaces 5360391)
46	Cable	5361050 (replaces 5360482)
47	Clip	8461675
48	Cover	4509436
50	Bracket	4560678
	Mounting kit	4959565
	Mounting kit	12804284 (replaces 9240086)
	Mounting kit	5141932
