Saab 9-3 (9400) 1998-2003 Tail gate lock

Group 8a Car body, external, section 1030

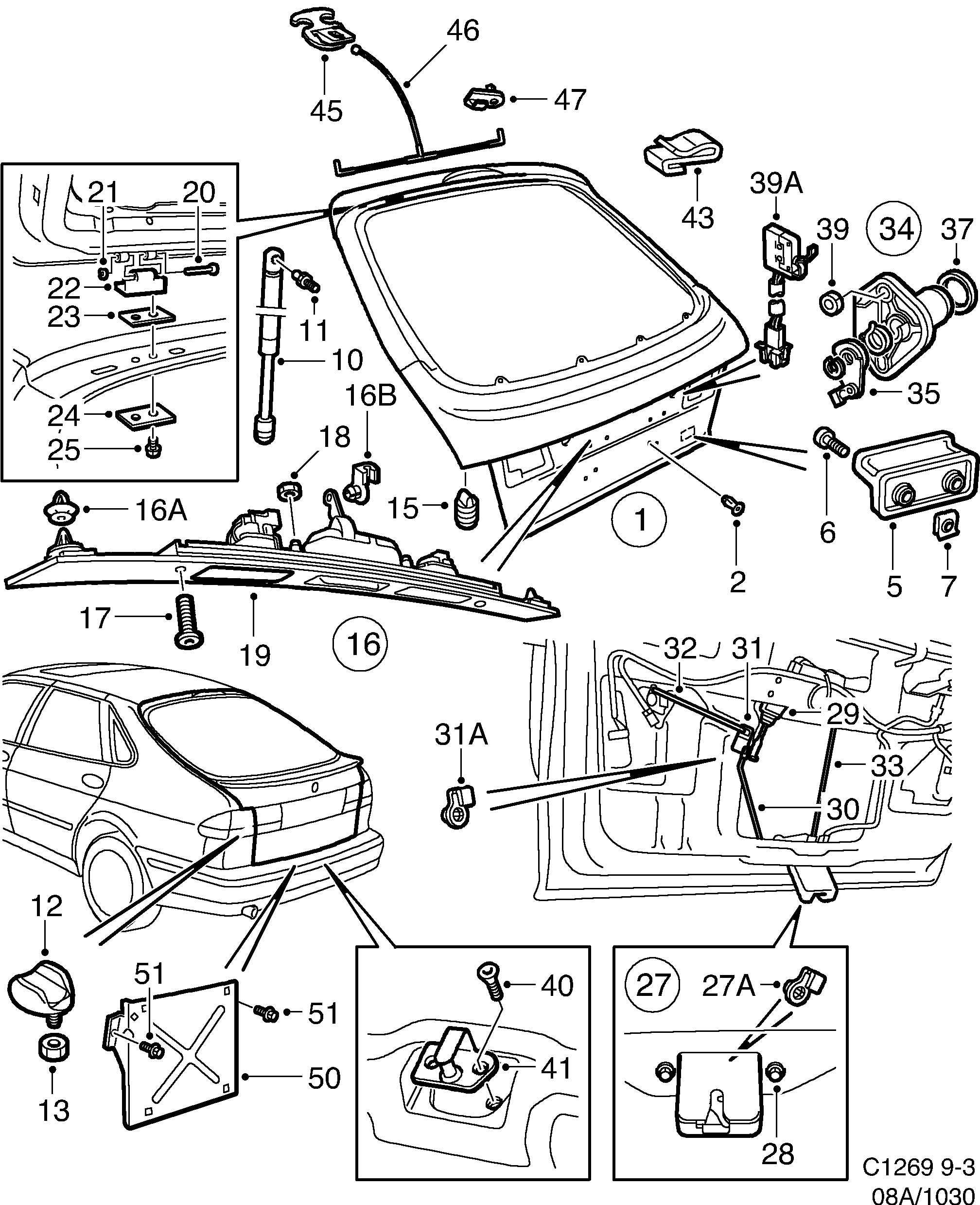

Saab 9-3 (9400) Tail gate lock diagram

Pos	Article	Part No.
1	Trunk lid	5360730 (replaces 4850996)
1	Tail gate	5360730
2	Rivet nut	9130829 (replaces 7399454)
5	Handle	5332788 (replaces 9670548)
5	Handle	5332788
6	Screw	7977960
7	Clip nut	92150164 (replaces 7972573)
10	Gas spring	4854717
10	Gas spring	4854733
10	Gas spring	5022082
11	Ballpin	4493912
12	Side support	4323408
13	Nut	11900451 (replaces 7977929)
15	Rubber buffer	12786272 (replaces 4304234)
16	Outside handle	5409628 (replaces 4698809)
16	Outside handle	5409628
16A	Clip	5111950
16B	Clip	4859344
17	Screw	92151601 (replaces 7978430)
20	Hinge bolt	4324810
21	Lock ring	4346227
22	Hinge flange	4324786
23	Seal	4559654
24	Washer	5333232
25	Screw	92150012 (replaces 7978182)
27	Lock	5360334 (replaces 4698924)
27	Lock	5360334
27A	Clip	9782566 (replaces 4859336)
28	Hexagon screw	92152130 (replaces 7984305)
30	Rod	4766093
31	Pivot arm	4768594
31A	Clip	4346110
32	Rod	4766135
33	Rod	4766226
37	Sealing ring	4854683
39A	Microswitch	400126561 (replaces 4327300)
40	Screw	92152010 (replaces 4685624)
41	Striker	5182134 (replaces 4698932)
41	Striker	5182134
43	Clamp	7156409
45	Handle	5362702 (replaces 5360391)
45	Handle	5362702 (replaces 5361043)
45	Handle	5362702
46	Cable	5361050 (replaces 5360482)
46	Cable	5361050
47	Clip	8461675
50	Bracket	4560678
	Mounting kit	4959565
	Mounting kit	12804284 (replaces 9240086)
	Mounting kit	5141932
