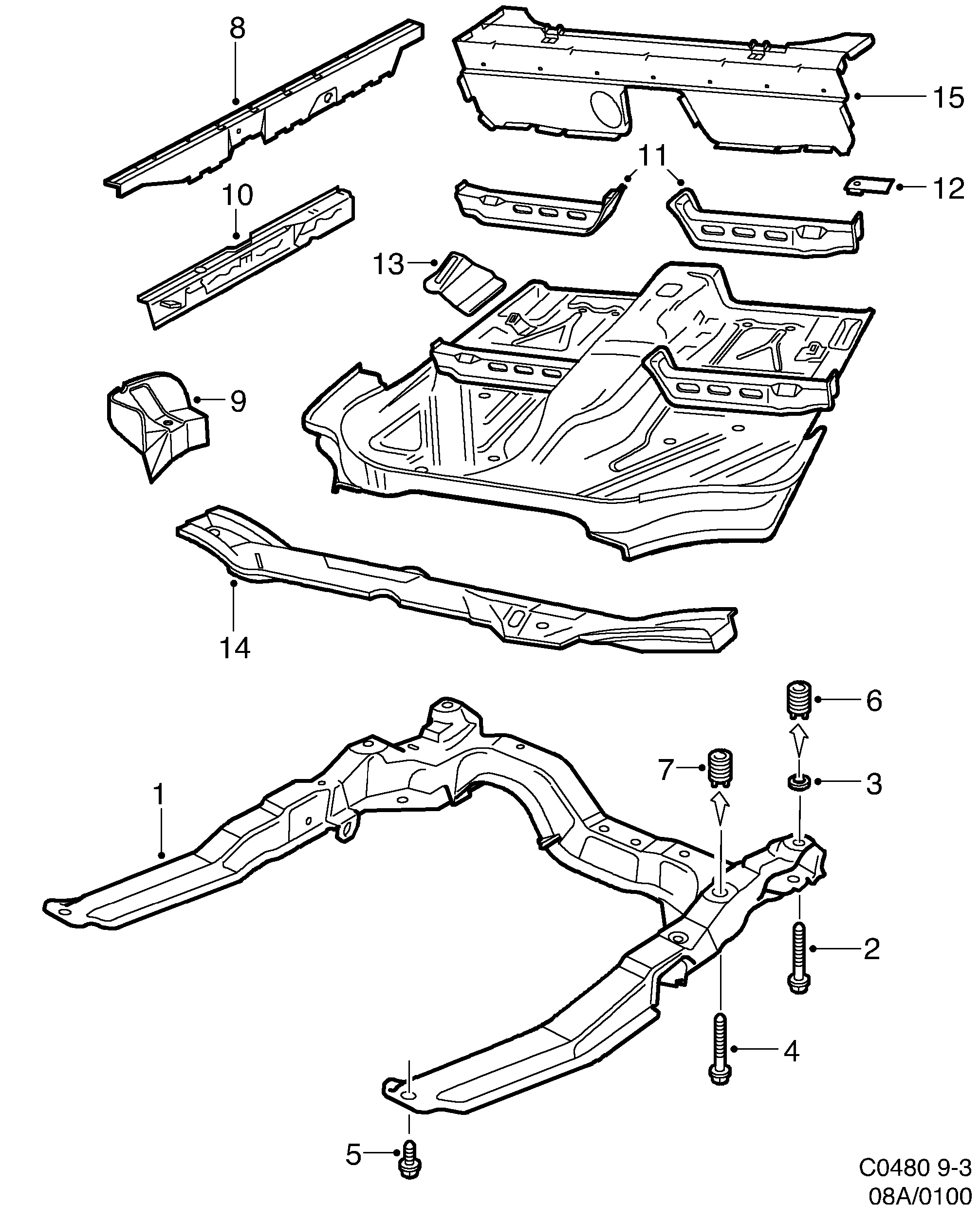

Group 8a Car body, external, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Subframe | 4298105 |
| 2 | Screw | 11100011 (replaces 4685996) |
| 3 | Washer | 4333811 |
| 4 | Screw | 4345674 |
| 5 | Screw | 4940185 |
| 6 | Thread insert | 90343607 |
| 7 | Thread insert | 90305069 |
| 8 | Sill | 4922092 |
| 8 | Sill | 4922100 |
| 9 | Sill | 4295838 |
| 9 | Sill | 4295846 |
| 10 | Sill | 4340337 |
| 10 | Sill | 4340345 |
| 11 | Beam | 4922357 |
| 11 | Beam | 4922365 |
| 12 | Nut plate | 4922431 |
| 12 | Nut plate | 4922449 |
| 13 | Support | 4921615 |
| 13 | Support | 4921623 |
| 14 | Crossmember | 4922258 |
| 15 | Torsion box | 30557116 (replaces 4295895) |
