Saab 9-3 (9400) 1998-2003 Pump, hydraulic oil hoses

Group 6 Front wheel suspension, section 220

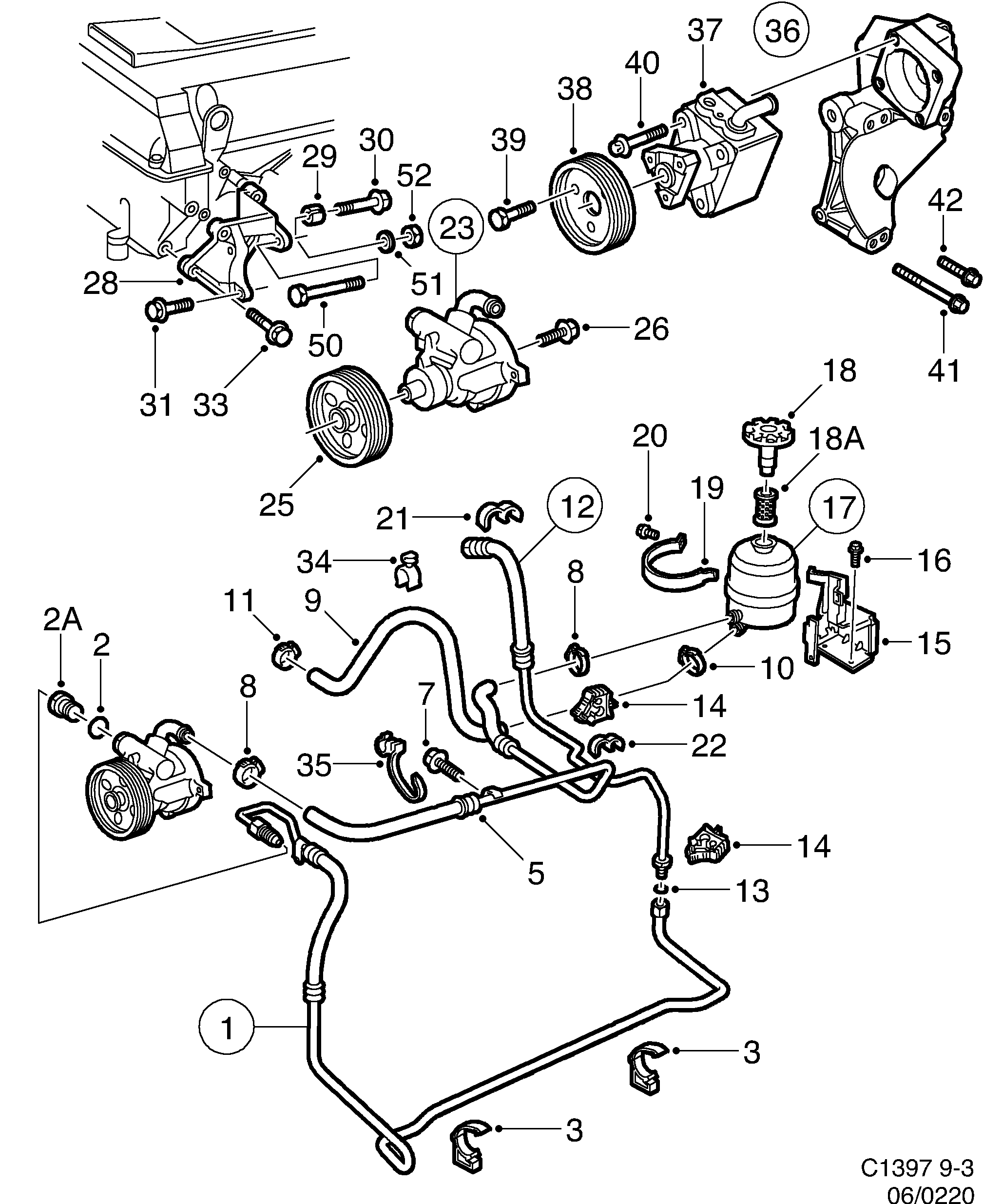

Saab 9-3 (9400) Pump, hydraulic oil hoses diagram

Pos	Article	Part No.
1	Pressure hose	5061833 (replaces 4838801)
1	Pressure hose	5061833
1	Feed line	5057252
2	O-ring	4104048
2	Sealing ring	4907424
2A	Snap-on coupling	4905287
3	Clamp	5057070
5	Suction hose	4482725
5	Suction hose	4647889
7	Screw	11900353 (replaces 7978091)
8	Hose clamp	7970072
9	Hose	4482741
9	Hose	4482758
10	Hose clamp	90572589 (replaces 7970056)
11	Hose clamp	7970049
12	Pressure hose	5330451 (replaces 4482832)
12	Pressure hose	5330451
14	Bracket	4246567
15	Bracket	4242889
16	Hexagon screw	7978661
17	Reservoir	4482600
18	Cover	4402798
18A	Filter cartridge	4193199
19	Brace	4242897
20	Screw	11900355 (replaces 7978117)
21	Clip	4242962
22	Clip	4373668
23	Pump, hydraulic oil	5170675 (replaces 4908281)
23	Pump, hydraulic oil	5170675
23	Pump, hydraulic oil	5061841
25	Pulley	4960670
26	Screw	55566034 (replaces 7978190)
28	Bracket	4356077
29	Bushing	7593072
30	Hexagon screw	7982978
30	Screw	55563211 (replaces 7978240)
31	Hexagon screw	11900367 (replaces 7978216)
34	Double clamp	30550883 (replaces 4402095)
35	Tie strap	11900513 (replaces 92150191)
36	Pump, hydraulic oil	90573620 (replaces 5237326)
37	Pump, hydraulic oil	5057997
38	Pulley	4678488
39	Screw	11097651 (replaces 4348439)
40	Hexagon screw	11095911 (replaces 4771747)
41	Screw	11094051 (replaces 9544594)
42	Screw	11094791
50	Screw	8084071
51	Washer	92153033 (replaces 8029985)
52	Hexagon nut	11900452 (replaces 7977952)
	Sealing kit	32000169 (replaces 4402780)
