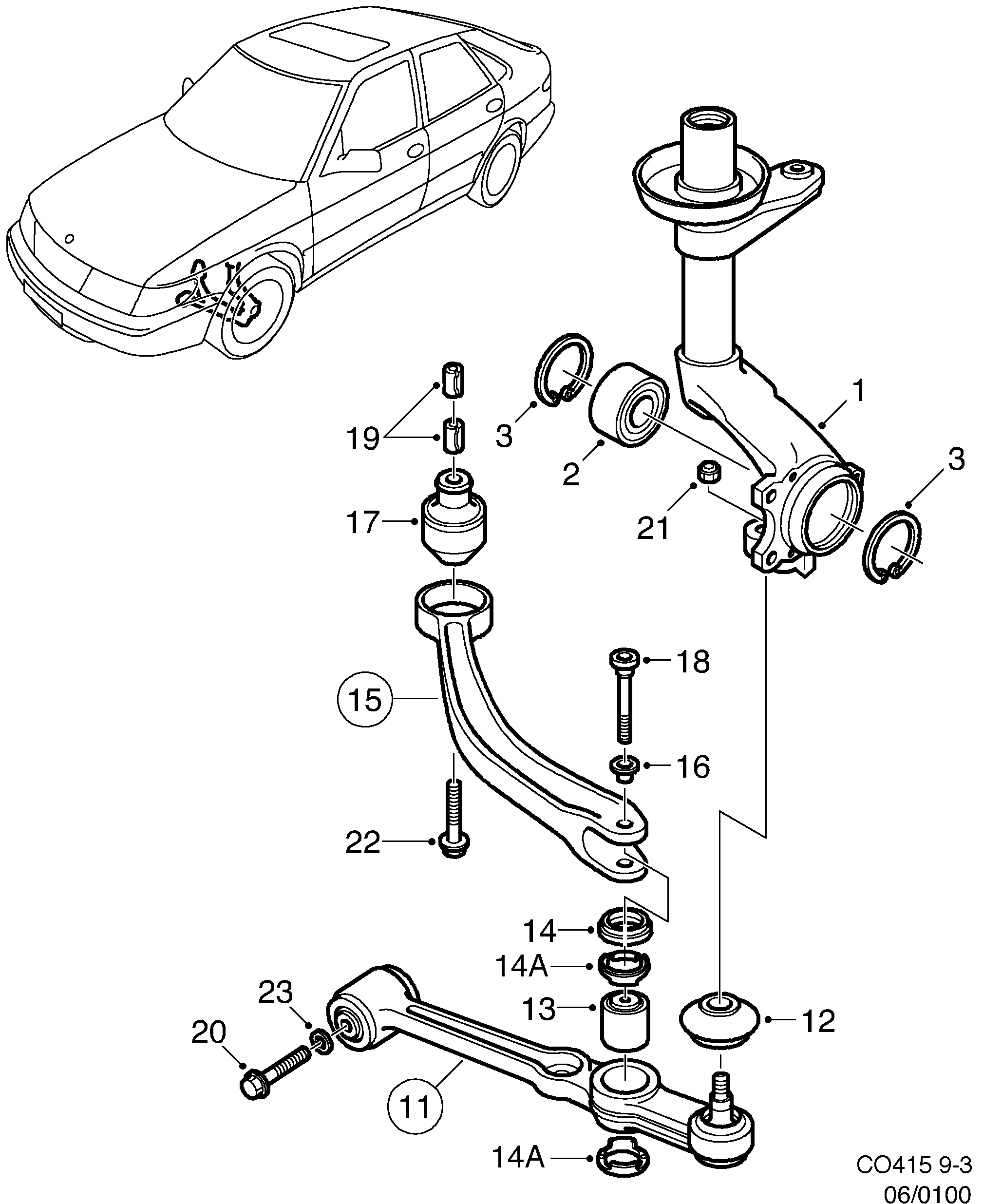

Group 6 Front wheel suspension, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Steering knuckle housing | 4778841 |
| 1 | Steering knuckle housing | 4778858 |
| 1 | Steering knuckle housing | 5080627 |
| 1 | Steering knuckle housing | 5080593 |
| 2 | Angular contact ball brg. | 4689923 |
| 3 | Snap ring | 4345450 |
| 11 | Arm | 4543450 |
| 11 | Arm | 4543468 |
| 12 | Bellows kit | 8993867 |
| 13 | Bushing | 4545711 |
| 14 | Seal | 4646089 |
| 14A | Clip kit | 5330196 |
| 15 | Stanchion | 4647004 |
| 15 | Stanchion | 4647012 |
| 16 | Press nut | 4645164 |
| 17 | Bushing | 4482402 |
| 18 | Screw | 4645156 |
| 19 | Spring sleeve | 4246062 |
| 20 | Screw | 7984933 |
| 21 | Nut | 7979578 |
| 23 | Washer | 11011199 (replaces 8073116) |
