Saab 9-3 (9400) 1998-2003 Parking brake system

Group 5 Brakes, section 280

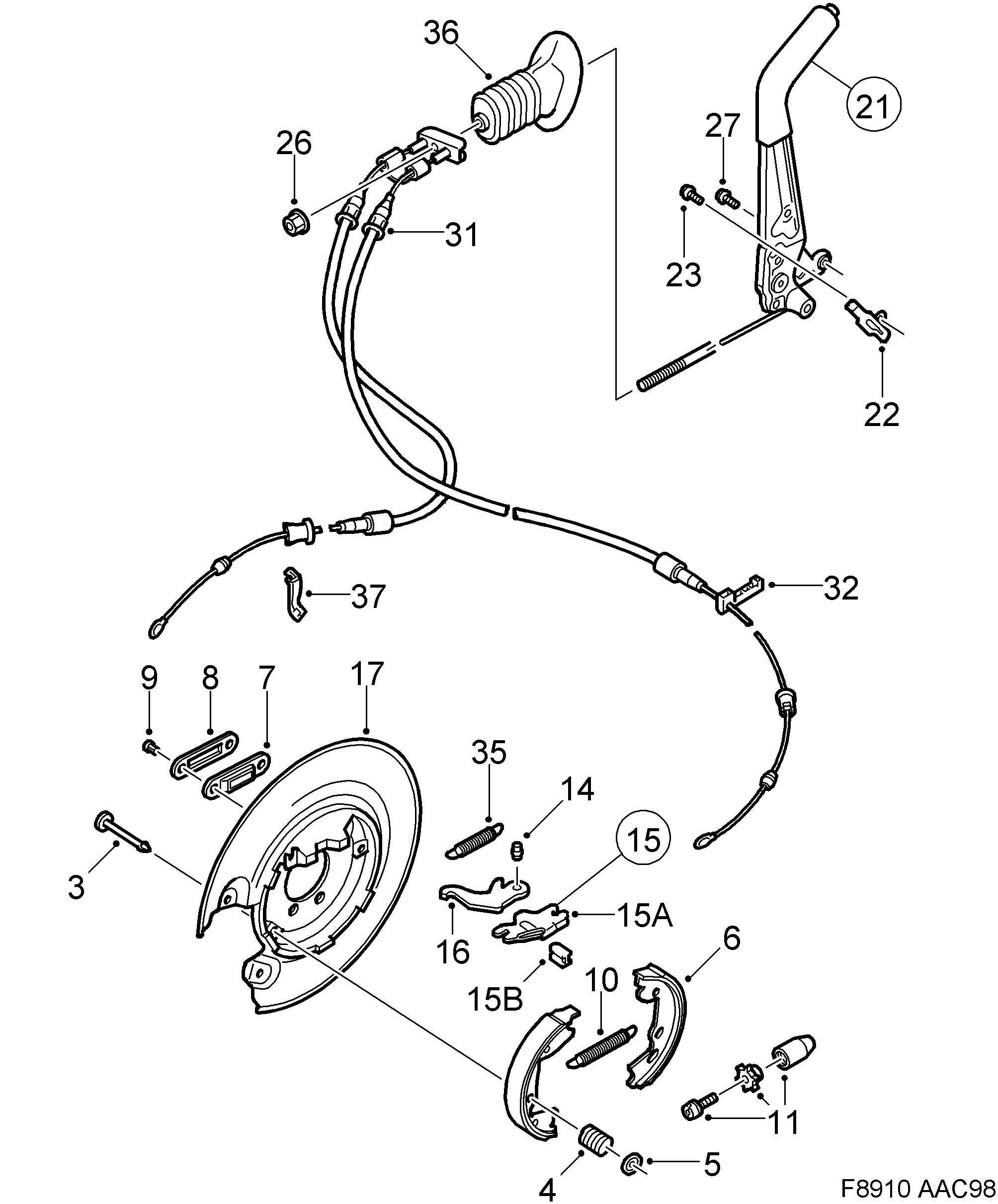

Saab 9-3 (9400) Parking brake system diagram

Pos	Article	Part No.
3	Locking pin	90279209
4	Compression spring	6681527
5	Lock plate	6663706
6	Brake shoe kit	4838660
7	Tab	90305309 (replaces 4400230)
8	Dust seal	90305308 (replaces 4400305)
9	Pin	11064071
10	Spring	90079327
11	Adjusting kit	8993941
14	Pin	90075839
15	Shackle	90496947
15A	Shackle	90496947 (replaces 4400313)
15B	Clip	4836342
16	Lever	90111317
17	Attaching plate	90538250
17	Attaching plate	90538251
21	Parking brake lever	4646030
22	Switch	4247698
23	Screw	11900377 (replaces 7978356)
26	Nut	92150143 (replaces 7971922)
27	Screw	4345799
31	Parking brake cable	4839874
35	Return spring	12783879 (replaces 4241345)
36	Bellows	30550887
