Saab 9-3 (9400) 1998-2003 Brake lines ABS

Group 5 Brakes, section 220

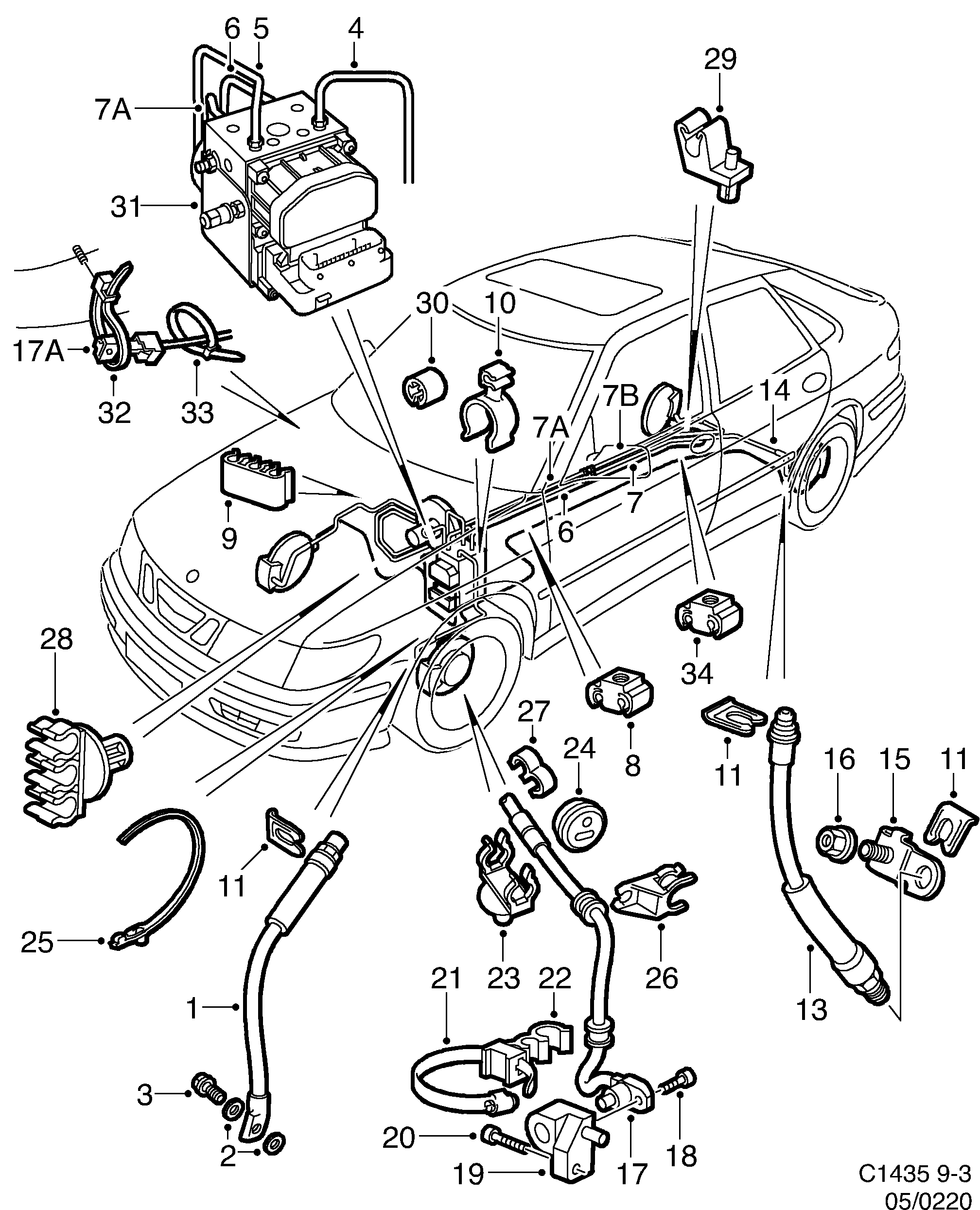

Saab 9-3 (9400) Brake lines ABS diagram

Pos	Article	Part No.
1	Brake hose	90468319 (replaces 4241444)
2	Sealing ring	4345609
3	Banjo screw	4345591
4	Brake pipe	4426599
5	Brake pipe	4648283
6	Brake pipe	4648507
7	Brake pipe	4837712
7A	Brake pipe	4648515
7B	Brake pipe	4837720
8	Clamp	4906657 (replaces 4402426)
9	Tube clamp	4838512
10	Double clamp	30550883 (replaces 4402095)
11	Hose retainer	90539036 (replaces 4649844)
13	Brake hose	4543427
13	Brake hose	4483285
14	Brake pipe	4648150
14	Brake pipe	4648168
15	Bracket	4545430
16	Nut	11900440 (replaces 8074288)
17	Wheel speed sensor	4779161
17	Wheel speed sensor	5057468
18	Allen head screw	4345914
18	Screw	7978133
19	Retainer	4645099
19	Retainer	4645107
19	Bracket	4909099
19	Bracket	4909107
21	Tube clamp	90530144 (replaces 4346532)
22	Tube clamp	4249090
23	Clamp	4424883
24	Grommet	4399358
25	Tie strap	7984750
26	Clamp	4836805
27	Tube clamp	12793419 (replaces 9106139)
28	Tube clamp	4243077
28	Clip	90168790
29	Pipe clip	4243119
30	Tube clamp	8965097
32	Tie strap	4063681
33	Tie strap	11900513 (replaces 92150191)
34	Clamp	4906657
