Saab 9-3 (9400) 2000-2002 Master cylinder vacuum brake booster

Group 5 Brakes, section 200

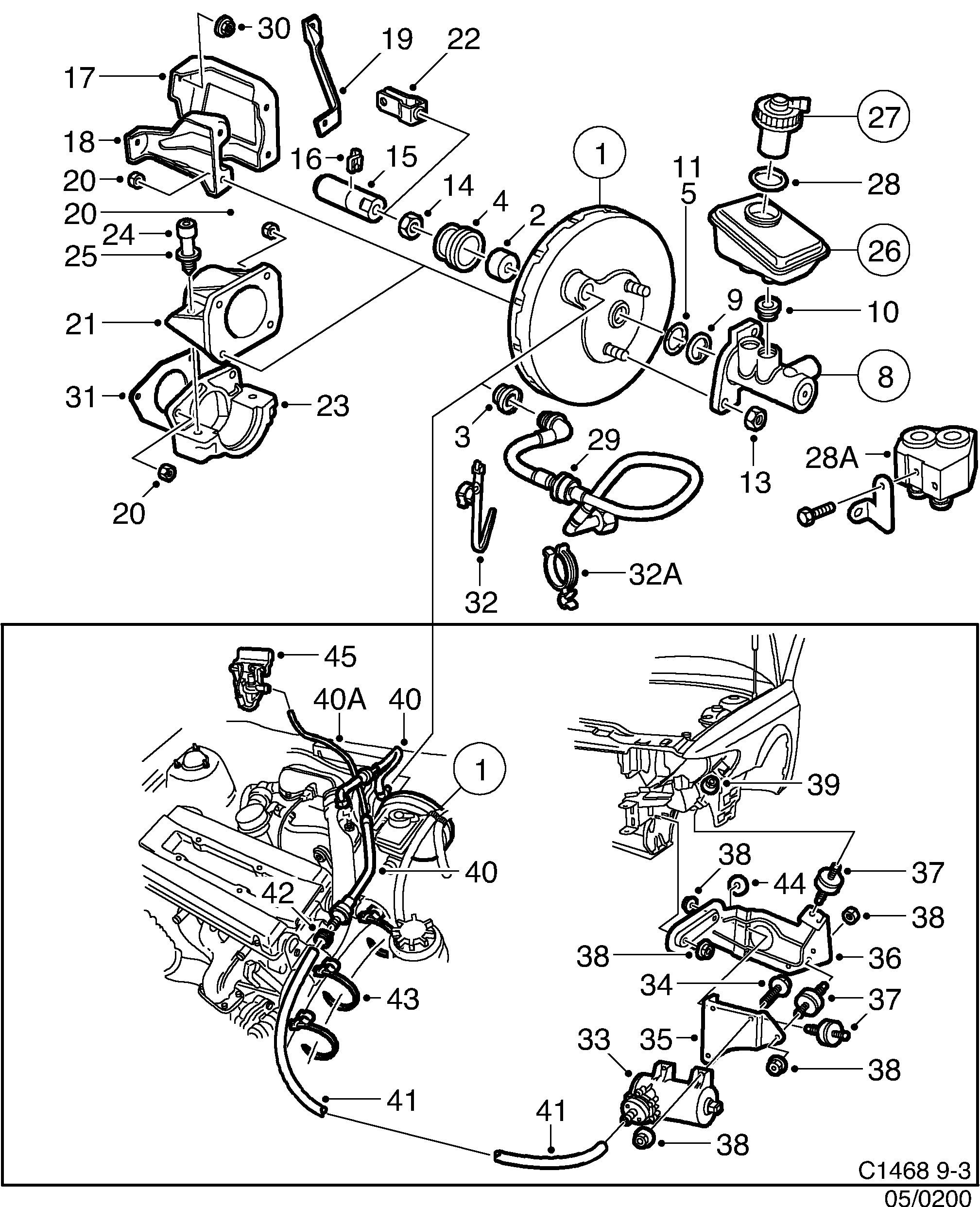

Saab 9-3 (9400) Master cylinder vacuum brake booster diagram

Pos	Article	Part No.
1	Brake servo	4543872
1	Brake servo	5232590
1	Brake servo	4544151
1	Brake servo	5232582
2	Filter	4543880
3	Grommet	5233739 (replaces 4543898)
3	Grommet	5233739
4	Bellows	4543906
4	Bellows	5232608
4	Bellows	4544169
4	Bellows	5233762
5	Sealing ring	2894223 (replaces 4543914)
5	Sealing ring	2894223 (replaces 5232624)
8	Master cylinder	4543930
8	Master cylinder	4543948
8	Master cylinder	5233705
9	Lock ring	4543963
10	Plug	4198297 (replaces 4543971)
10	Plug	5232616
13	Lock nut	4543922
14	Hexagon nut	4345120
15	Adjusting nut	90498145 (replaces 4567855)
16	Return spring	90184913 (replaces 4244307)
17	Bracket	90184911 (replaces 4242566)
18	Bracket	4242574
19	Cross support	4242558
20	Nut	92150143 (replaces 7971922)
21	Bracket	4245080
22	Brace	4245098
23	Support	4246450
24	Screw	4345898
25	Sealing washer	8929531
26	Reservoir	5232244 (replaces 5056981)
26	Reservoir	5232244
27	Cover	4904876
28	Sealing ring	4543997
29	Vacuum pipe	4467189
29	Vacuum pipe	5230834
29	Vacuum pipe	4467197
29	Vacuum pipe	5230842
31	Insulation	4426870
32	Tie strap	30507607 (replaces 7593221)
32A	Clamp	7398415
33	Vacuum pump	4646220
34	Screw	7978133
35	Bracket	4646451
36	Support	4904140 (replaces 4779104)
37	Rubber spacer	9281374 (replaces 4235768)
38	Nut	11900451 (replaces 7977929)
40	Vacuum pipe	4907671
40	Vacuum pipe	4907689
40A	Vaccum hose	9136243
41	Vaccum hose	4646923
42	Hose clamp	7974009
44	Seal	4345724
