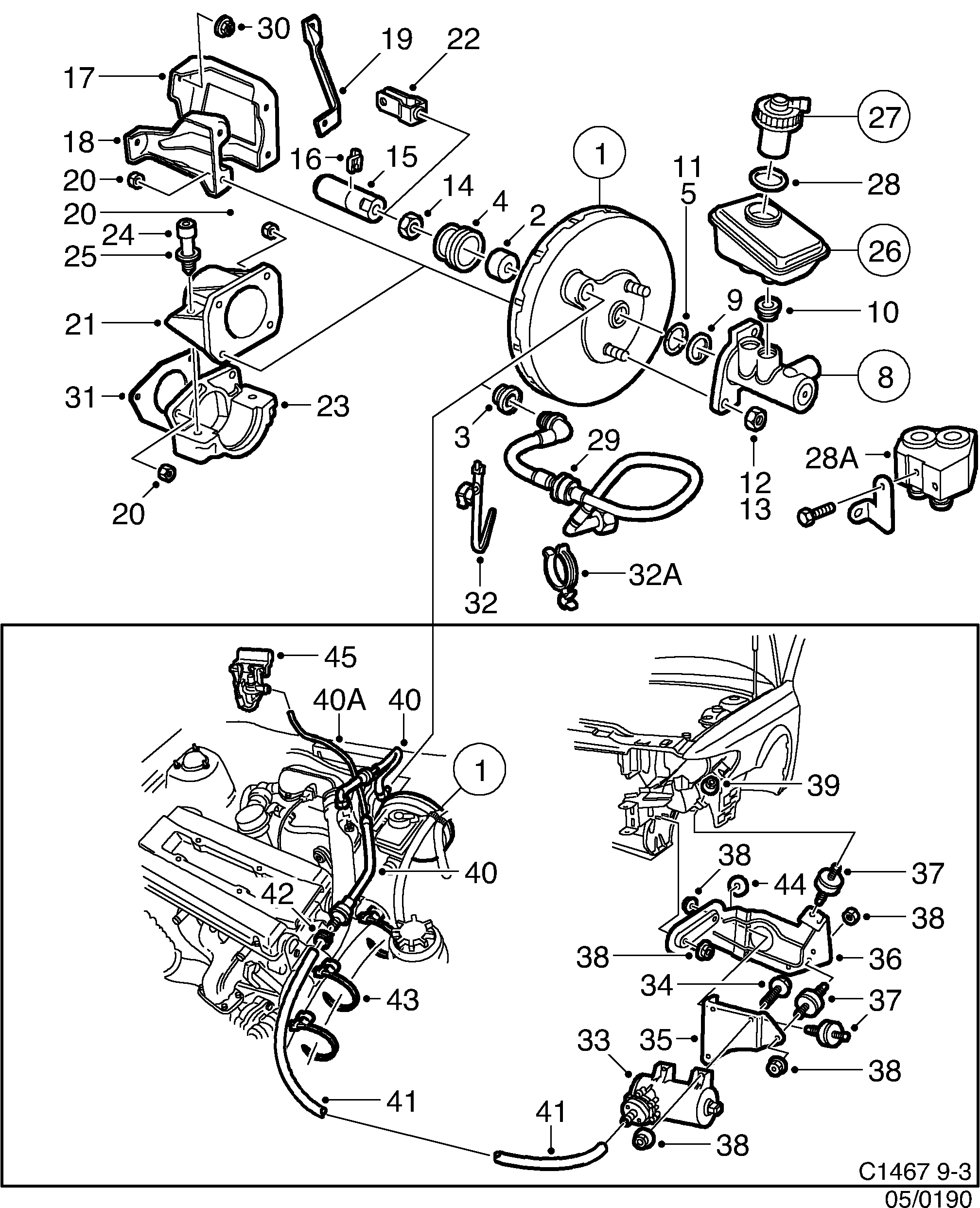

Group 5 Brakes, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Brake servo | 4543872 |
| 1 | Brake servo | 4836664 |
| 1 | Brake servo | 4544151 |
| 2 | Filter | 4543880 |
| 3 | Grommet | 5233739 (replaces 4543898) |
| 3 | Grommet | 4836680 |
| 4 | Bellows | 4543906 |
| 4 | Bellows | 4836672 |
| 4 | Bellows | 4544169 |
| 5 | Sealing ring | 2894223 (replaces 4543914) |
| 8 | Master cylinder | 4543930 |
| 8 | Master cylinder | 4836706 |
| 8 | Master cylinder | 4543948 |
| 9 | Lock ring | 4543963 |
| 10 | Plug | 4198297 (replaces 4543971) |
| 10 | Plug | 4836730 |
| 11 | Seal | 2894223 (replaces 4836755) |
| 12 | Nut | 4836748 |
| 13 | Lock nut | 4543922 |
| 14 | Hexagon nut | 4345120 |
| 15 | Adjusting nut | 90498145 (replaces 4567855) |
| 16 | Return spring | 90184913 (replaces 4244307) |
| 17 | Bracket | 90184911 (replaces 4242566) |
| 18 | Bracket | 4242574 |
| 19 | Cross support | 4242558 |
| 20 | Nut | 92150143 (replaces 7971922) |
| 21 | Bracket | 4245080 |
| 22 | Brace | 4245098 |
| 23 | Support | 4246450 |
| 24 | Screw | 4345898 |
| 25 | Sealing washer | 8929531 |
| 26 | Reservoir | 5232244 (replaces 5056981) |
| 26 | Reservoir | 3495552 (replaces 5061403) |
| 27 | Cover | 4904876 (replaces 4402160) |
| 27 | Cover | 4904876 |
| 27 | Cover | 5061411 |
| 28 | Sealing ring | 4543997 |
| 28A | Adapter | 5124698 |
| 29 | Vacuum pipe | 4467189 |
| 29 | Vacuum pipe | 5082425 |
| 29 | Vacuum pipe | 4647863 |
| 29 | Vacuum pipe | 4467197 |
| 29 | Vacuum pipe | 5082193 |
| 29 | Vacuum pipe | 4647871 |
| 31 | Insulation | 4426870 |
| 32 | Tie strap | 30507607 (replaces 7593221) |
| 32A | Clamp | 7398407 |
| 33 | Vacuum pump | 4646220 |
| 34 | Screw | 7978133 |
| 35 | Bracket | 4646451 |
| 36 | Support | 4904140 (replaces 4779104) |
| 37 | Rubber spacer | 9281374 (replaces 4235768) |
| 38 | Nut | 11900451 (replaces 7977929) |
| 40 | Vacuum pipe | 4907671 |
| 40 | Vacuum pipe | 4907689 |
| 40A | Vaccum hose | 9136243 |
| 41 | Vaccum hose | 4646923 |
| 42 | Hose clamp | 7974009 |
| 44 | Seal | 4345724 |
