Saab 9-3 (9400) 1998-2003 Hydraulic unit ABS

Group 5 Brakes, section 160

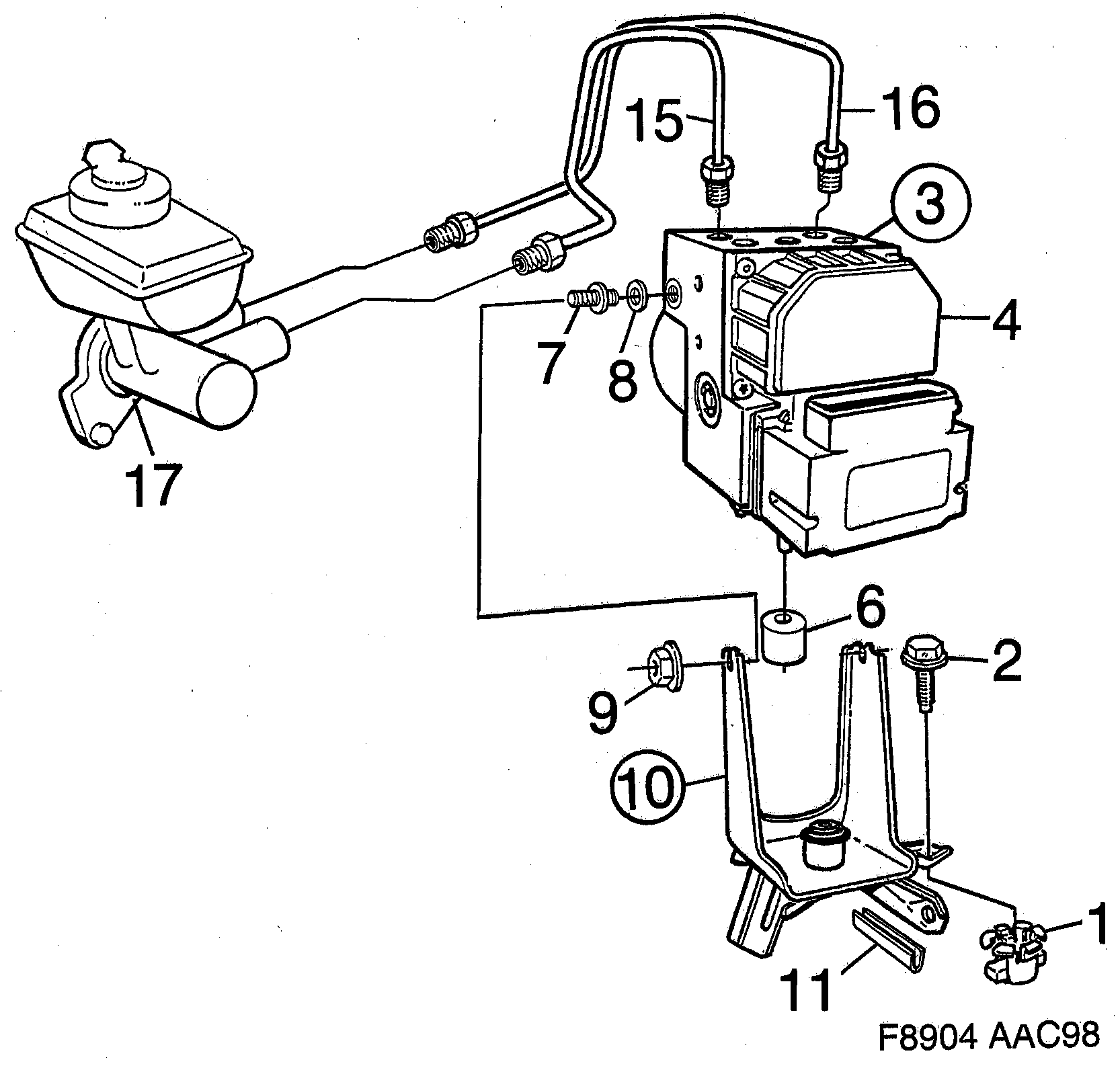

Saab 9-3 (9400) Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Cage nut	5125398 (replaces 4243432)
2	Screw	55566034 (replaces 7978190)
3	Hydraulic unit	5390091 (replaces 4779500)
3	Hydraulic unit	5390091
3	Hydraulic unit	5233911 (replaces 5230180)
3	Hydraulic unit	5233911
4	Electronic unit	4779526
4	Electronic unit	5235874
6	Support sleeve	4646675
7	Support pin	4646683
8	Absorber	4646691
9	Hexagon nut	11900452 (replaces 7977952)
10	Bracket	4907697
11	Edge protection moulding	4867917 (replaces 4175295)
15	Brake pipe	4426649
15	Brake pipe	5334503 (replaces 4905329)
15	Brake pipe	5334503
15	Brake pipe	5082136
16	Brake pipe	4426631
16	Brake pipe	4905311
16	Brake pipe	5082177
15	Brake pipe	4839817
15	Brake pipe	5058581
15	Brake pipe	5063946
15	Brake pipe	4905394
15	Brake pipe	5082011
16	Brake pipe	4839809
16	Brake pipe	5058573
16	Brake pipe	5063938
16	Brake pipe	4905386
16	Brake pipe	5082003
