Saab 9-3 (9400) 1998-2003 Rear wheel brake

Group 5 Brakes, section 130

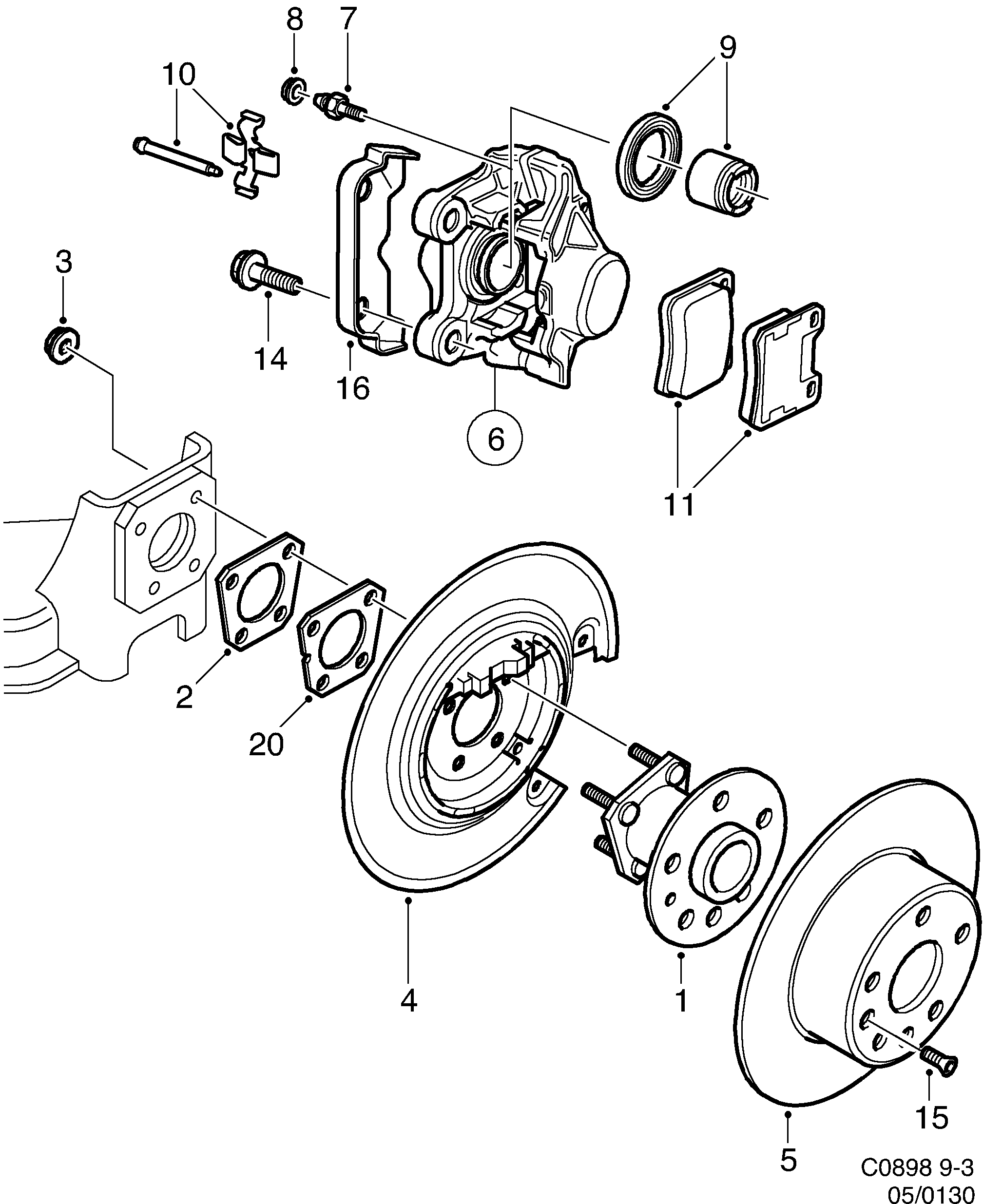

Saab 9-3 (9400) Rear wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	4839122
2	Spacer	4248324
3	Flange lock nut	90538869 (replaces 4345153)
5	Brake disc kit	5391578 (replaces 4839338)
5	Brake disc	5391578
5	Brake disc kit	5084751
6	Brake housing	4838983
6	Brake housing	4838991
6	Brake housing	5084736
6	Brake housing	5084728
7	Bleed screw	4467148
8	Protecting casing	8908576
9	Gasket kit	4467080
10	Spring kit	5239744 (replaces 4908497)
10	Spring kit	5239744
11	Brake pad kit	4837241
14	Screw	4241535
15	Screw	8055998
16	Cover plate	4648572
20	Spacer	5333463
