Saab 9-3 (9400) 1998-2003 Front wheel brake

Group 5 Brakes, section 100

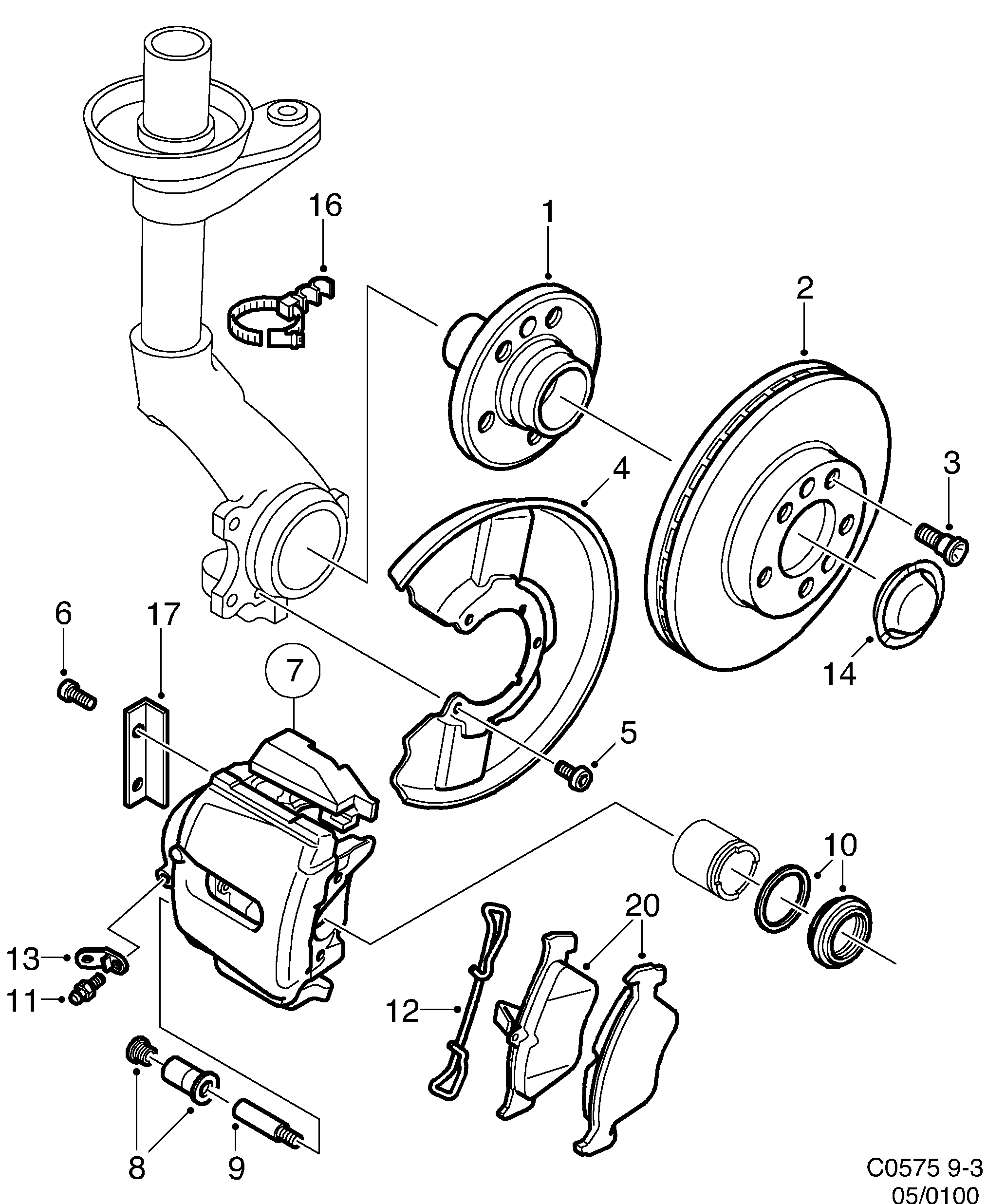

Saab 9-3 (9400) Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	90496444 (replaces 4568192)
2	Brake disc kit	32025723 (replaces 4839320)
2	Brake disc	32025723 (replaces 5390786)
2	Brake disc kit	5084769
3	Screw	90278945 (replaces 4249751)
4	Backing plate	5056726
4	Backing plate	4567749
5	Screw	8059537
6	Screw	4940904
7	Brake housing	4838967
7	Brake housing	4838975
7	Brake housing	5055413
7	Brake housing	5055421
7	Brake housing	5084710
7	Brake housing	5084702
8	Guide	4467064
9	Slide pin	90297771 (replaces 8969651)
10	Gasket kit	4778262
11	Bleed screw	4467007
12	Spring	4244422
13	Protecting casing	4467015
14	Protective cup	5170543
17	Protecting plate	4545471
20	Brake pad kit	93192749 (replaces 5124078)
20	Brake pad kit	93192749 (replaces 5064795)
20	Brake pad kit	5062203
20	Brake pad kit	93192749 (replaces 5062211)
20	Brake pad kit	5062203 (replaces 5232350)
20	Brake pad kit	93192749 (replaces 5055371)
