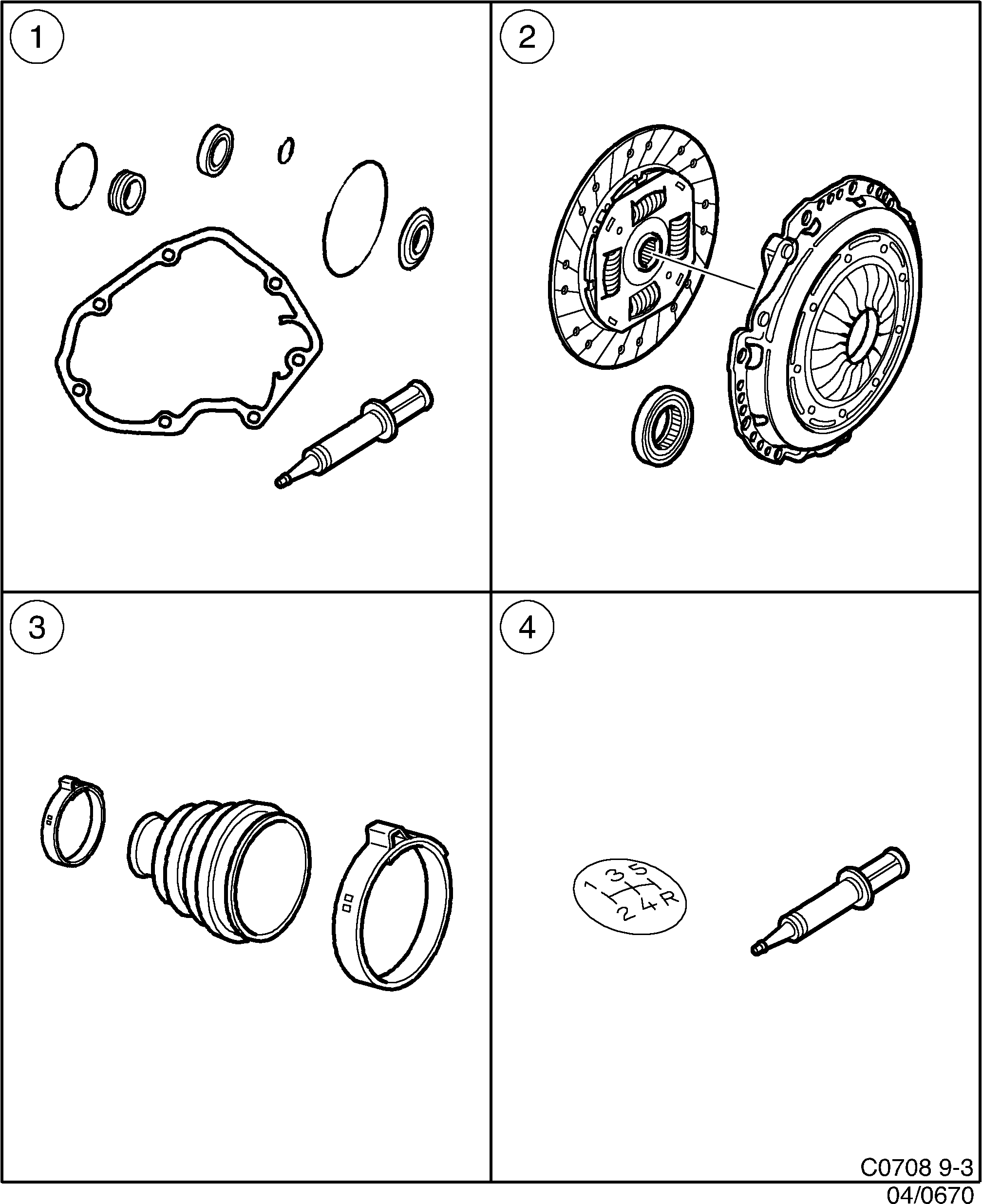

Group 4 Transmission, section 670
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gasket kit | 8781494 |
| Gasket | 12755014 (replaces 4940169) | |
| O-ring | 90486232 (replaces 8047144) | |
| O-ring | 4903787 (replaces 8729600) | |
| Seal | 55353153 (replaces 8732117) | |
| Gasket | 90486235 (replaces 8734824) | |
| Seal | 8734980 | |
| Seal | 90511282 (replaces 8734998) | |
| Flange sealant | 90297970 | |
| 2 | Clutch kit | 4614004 |
| Pressure plate | 8746778 | |
| Clutch disc | 5174958 (replaces 8746802) | |
| 2 | Clutch kit | 4614012 |
| Clutch disc | 5174966 (replaces 5162300) | |
| Pressure plate | 5337589 (replaces 8746497) | |
| 2 | Clutch kit | 9636721 |
| Clutch disc | 5174933 (replaces 5023726) | |
| Pressure plate | 5023718 | |
| Screw | 55562121 (replaces 7967938) | |
| 2 | Clutch kit | 4773396 |
| Clutch disc | 9196617 (replaces 8745754) | |
| Pressure plate | 8745788 | |
| 3 | Bellows kit | 8994147 |
| Bellows | 8955007 | |
| Clamp | 4242475 | |
| Clamp | 30519720 (replaces 8972986) | |
| 3 | Bellows kit | 8994162 |
| Clamp | 4686846 | |
| Bellows | 4686879 | |
| Clamp | 4687042 | |
| 4 | Mounting kit | 93165228 (replaces 5331780) |
| 4 | Glue | 93165228 |
| Adhesive | 93165228 (replaces 7998156) |
