Saab 9-3 (9400) 1998-2003 Clutch C3 and freewheel F3 Brake B4

Group 4 Transmission, section 565

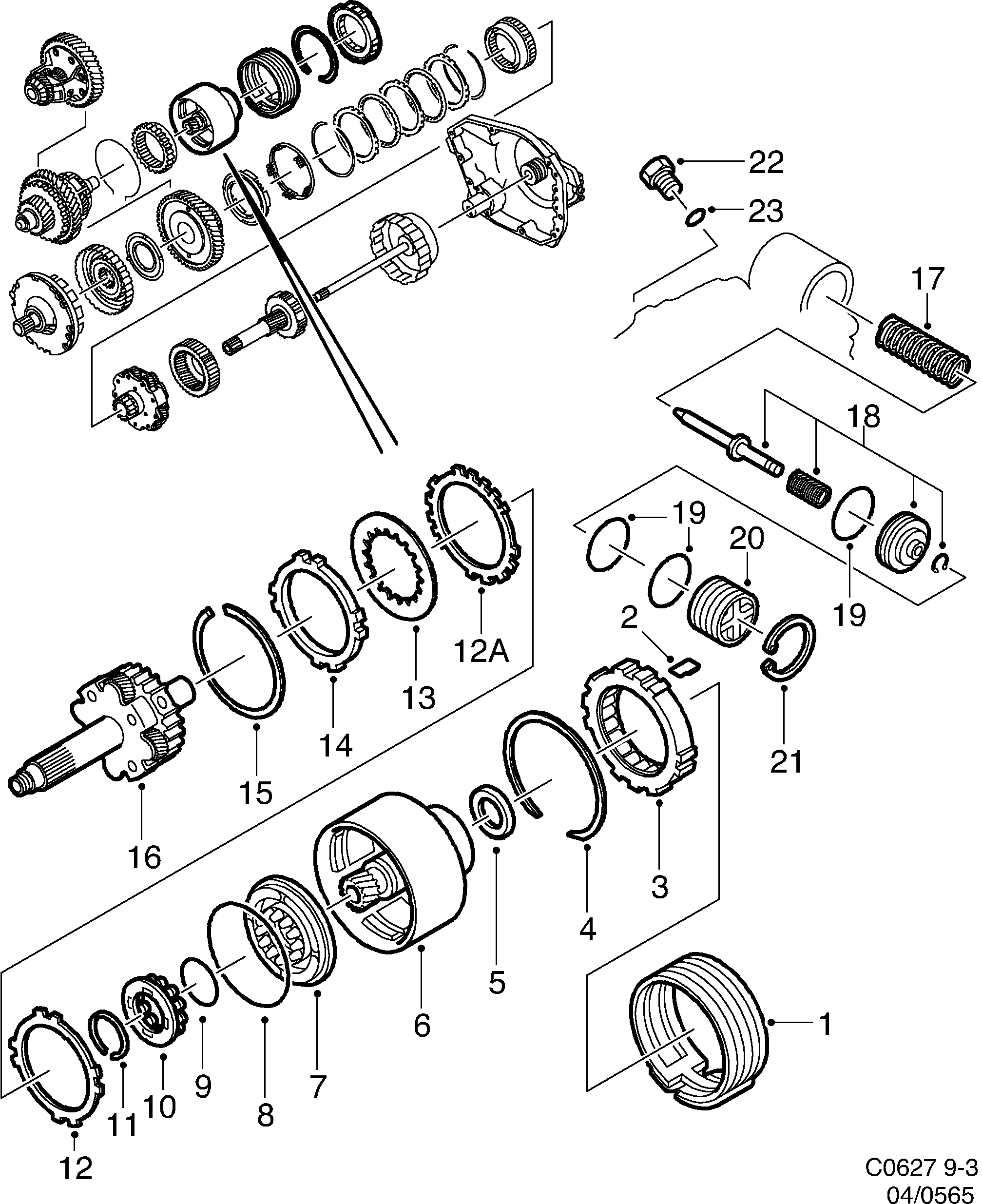

Saab 9-3 (9400) Clutch C3 and freewheel F3 Brake B4 diagram

Pos	Article	Part No.
1	Brake lining	5251210
2	Retainer	5251194
3	Clutch	5251202
4	Lock ring	5251186
5	Angle washer	5251061 (replaces 5253695)
5	Angle washer	5251061
6	Drum	5253596
6	Drum	9119600 (replaces 5255591)
7	Piston	5253620
7	Piston	5255609
8	O-ring	93178242 (replaces 5251442)
8	O-ring	5250949
9	O-ring	93178241 (replaces 5253612)
10	Return spring	90348847 (replaces 5250980)
11	Lock ring	90348849 (replaces 5250972)
12	Plate	5251004
12A	Plate	90348787 (replaces 5251475)
12A	Plate	5255617
13	Clutch disc	5253315
13	Clutch disc	5253398
13	Clutch disc	5251012
14	Clutch disc	5253653
14	Clutch disc	5251020
14	Clutch disc	5253661
14	Clutch disc	5251038
14	Clutch disc	5253679
14	Clutch disc	5251046
15	Lock ring	90348777 (replaces 5253687)
15	Lock ring	5251053
17	Compression spring	5251251
18	Piston	5253729
18	Piston	5253737
19	O-ring	5253711
20	Cover	5253745
21	Lock ring	5253752
22	Plug	93185203 (replaces 5251285)
23	O-ring	90348863 (replaces 5164421)
