Saab 9-3 (9400) 1998-2003 Gear box case, cover

Group 4 Transmission, section 551

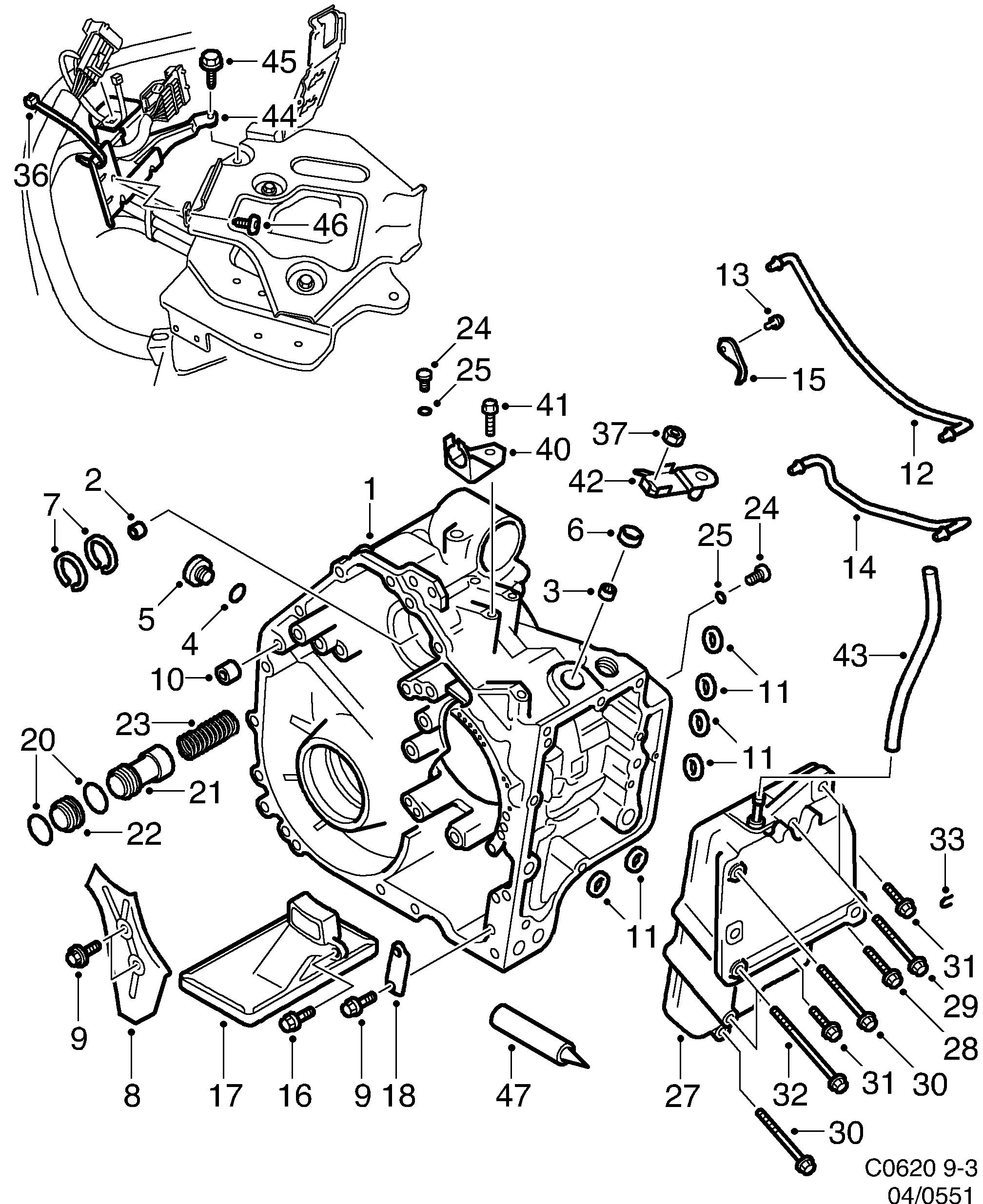

Saab 9-3 (9400) Gear box case, cover diagram

Pos	Article	Part No.
1	Transmission housing	5253117
2	Needle bearing	90369298 (replaces 5255047)
3	Needle bearing	90348717 (replaces 5259536)
4	O-ring	90348863 (replaces 5164421)
5	Plug	5448451
6	Seal	90348718 (replaces 4491064)
7	Sealing ring	5164454
8	Baffle	5164462
9	Screw	55352202 (replaces 5164470)
10	Gasket	90369297 (replaces 5164488)
11	Gasket	90348723 (replaces 5164496)
12	Tube	90512194 (replaces 5164504)
13	Screw	90399357 (replaces 5255351)
14	Tube	5253042
15	Clamp	90348727 (replaces 5164538)
16	Screw	5164546
17	Oil strainer	90541934 (replaces 5164553)
18	Plate	90348729 (replaces 5164561)
20	O-ring	90007861 (replaces 5164579)
21	Piston	5253067
22	Cover	90348731 (replaces 5164595)
23	Compression spring	90348732 (replaces 5164603)
24	Plug	90007874 (replaces 4491072)
25	O-ring	90007873 (replaces 4491080)
27	Cover	30587477 (replaces 5164413)
28	Screw	90399336 (replaces 4491106)
29	Screw	90399342 (replaces 4491114)
30	Screw	90399343 (replaces 4491122)
31	Screw	90399359 (replaces 4491130)
32	Screw	5164686
33	Clamp	5164694
36	Tie strap	11900513 (replaces 92150191)
37	Nut	11900440 (replaces 8074288)
40	Bracket	4626222
41	Screw	8082935
42	Gear rod	4387437
43	Bleeder hose	4238242
43	Bleeder hose	5335732
44	Bracket	4625828
45	Screw	11900353 (replaces 7978091)
46	Screw	8441503
47	Flange sealant	93165267 (replaces 5164637)
