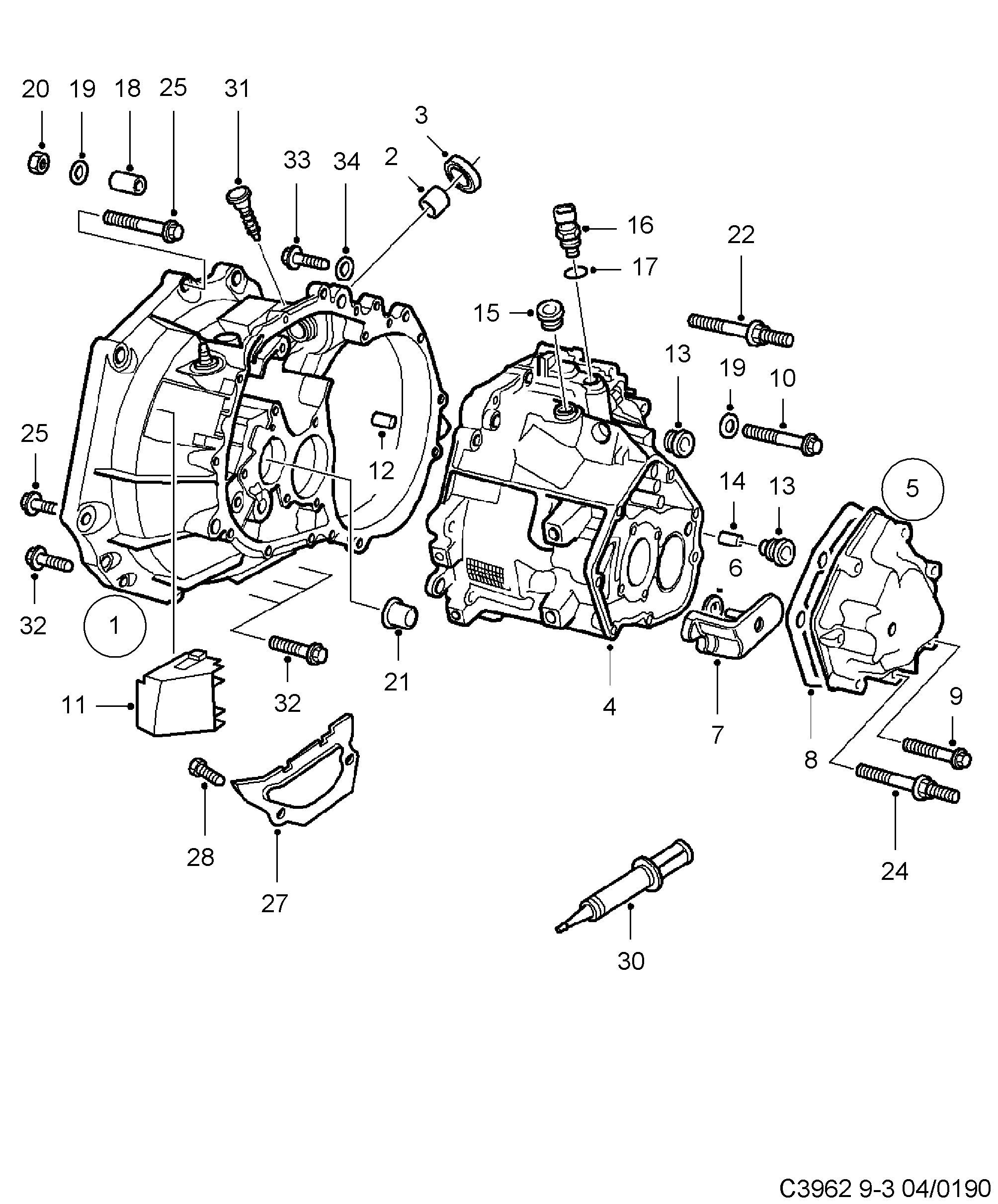

Group 4 Transmission, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bell housing | 8747321 |
| 1 | Bell housing | 90490785 (replaces 8747404) |
| 1 | Bell housing | 5257159 |
| 2 | Bushing | 30546057 (replaces 8731143) |
| 3 | Seal | 90511282 (replaces 8741878) |
| 4 | Transmission housing | 8744047 |
| 4 | Transmission housing | 12755006 (replaces 8748717) |
| 4 | Transmission housing | 90490787 (replaces 5258611) |
| 5 | Cover | 90544119 (replaces 8746463) |
| 5 | Cover | 90490782 (replaces 5257365) |
| 6 | Washer | 90486024 (replaces 8734105) |
| 7 | Oil collector | 30546087 (replaces 8734097) |
| 8 | Gasket | 90486235 (replaces 8734824) |
| 9 | Flange screw | 55561609 (replaces 7972714) |
| 11 | Cover | 21018743 (replaces 8748360) |
| 12 | Sintered compact | 90512565 (replaces 8701658) |
| 13 | Plug | 55568847 (replaces 8743858) |
| 14 | Magnet | 3449250 (replaces 8734881) |
| 15 | Plug | 4776266 |
| 16 | Back-up light contact | 90482454 (replaces 4617668) |
| 17 | Gasket | 12755014 (replaces 4940169) |
| 18 | Guide pin | 12755009 (replaces 8723967) |
| 19 | Washer | 7061328 |
| 20 | Nut | 8074106 |
| 21 | Sleeve | 90121130 (replaces 8730665) |
| 22 | Flange screw | 55561710 (replaces 8738411) |
| 25 | Screw | 55557007 (replaces 7984297) |
| 25 | Hexagon screw | 92150043 (replaces 7982606) |
| 27 | Baffle | 4235636 |
| 27 | Baffle | 4573069 |
| 28 | Hexagon screw | 4346235 |
| 28 | Hexagon screw | 55562122 (replaces 4685475) |
| 30 | Flange sealant | 90297970 |
| 31 | Plug | 90105651 (replaces 4387544) |
| Gasket kit | 8781494 | |
| 32 | Screw | 90490266 (replaces 7978281) |
| 33 | Hexagon screw | 92150351 (replaces 7979347) |
| 34 | Washer | 11011199 (replaces 8073116) |
