Saab 9-3 (9400) 1998-2003 Clutch pedal

Group 4 Transmission, section 130

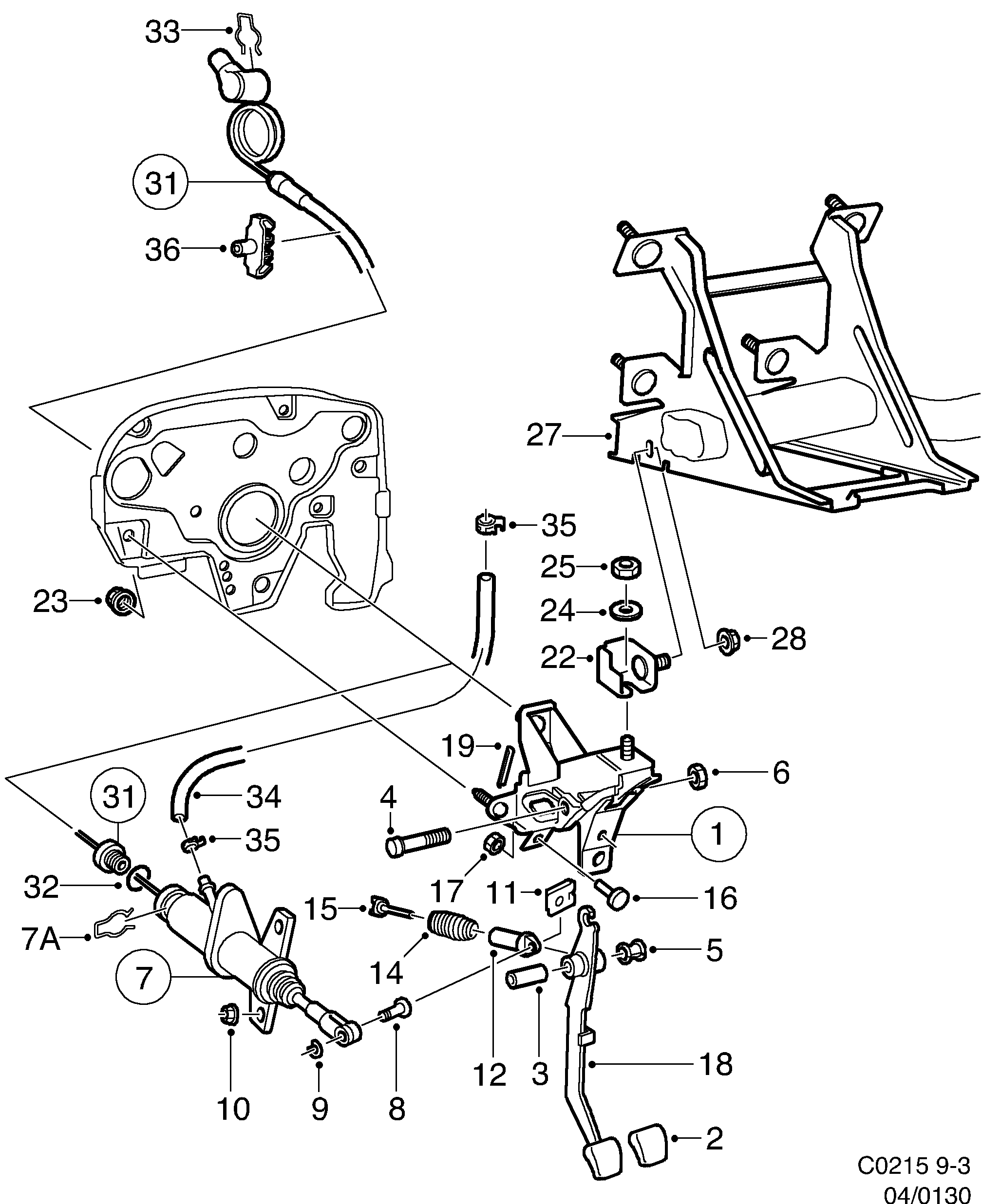

Saab 9-3 (9400) Clutch pedal diagram

Pos	Article	Part No.
1	Bracket	4647962
1	Bracket	4838017
1	Bracket	4647970
1	Bracket	4838009
2	Pedal pad	90105172 (replaces 4241832)
3	Spacer tube	4778080
3	Spacer tube	4779476
4	Screw	7974777
4	Flange screw	7973563
5	Bearing bushing	8962128
6	Lock nut	7399801
7	Master cylinder	4626172
7A	Lock ring	4940722
8	Pin	4925541
9	Clip	90278102 (replaces 4345443)
10	Lock nut	55557005 (replaces 7965767)
11	Clip	12780365 (replaces 8252553)
12	Spring guide	4000568
14	Helper spring	4839296
15	Spring guide	8957813
16	Pedal stop	4839312
17	Nut	8074106
18	Clutch pedal	4649596
18	Clutch pedal	4649646
19	Protecting moulding	8278558
19	Edge protection moulding	4867016
22	Pedal bracket	90193009 (replaces 4212130)
23	Nut	90191908
24	Washer	4345344
25	Nut	92150143 (replaces 7971922)
31	Clutch hose	4925582 (replaces 4626065)
31	Clutch hose	4925582
31	Clutch hose	4925590 (replaces 4626073)
31	Clutch hose	4925590
32	O-ring	4940706
33	Lock ring	4940714
34	Hose	5259742 (replaces 4925806)
34	Hose	5259742
34	Hose	5121660
34	Hose	5259759 (replaces 4925814)
34	Hose	5259759
34	Hose	5121652
35	Hose clamp	90530642 (replaces 7977697)
36	Clip	4685533
