Saab 9-3 (9400) 2001-2003 Connector housing etc 27-pin-

Group 3b Electrical, connector, section 400

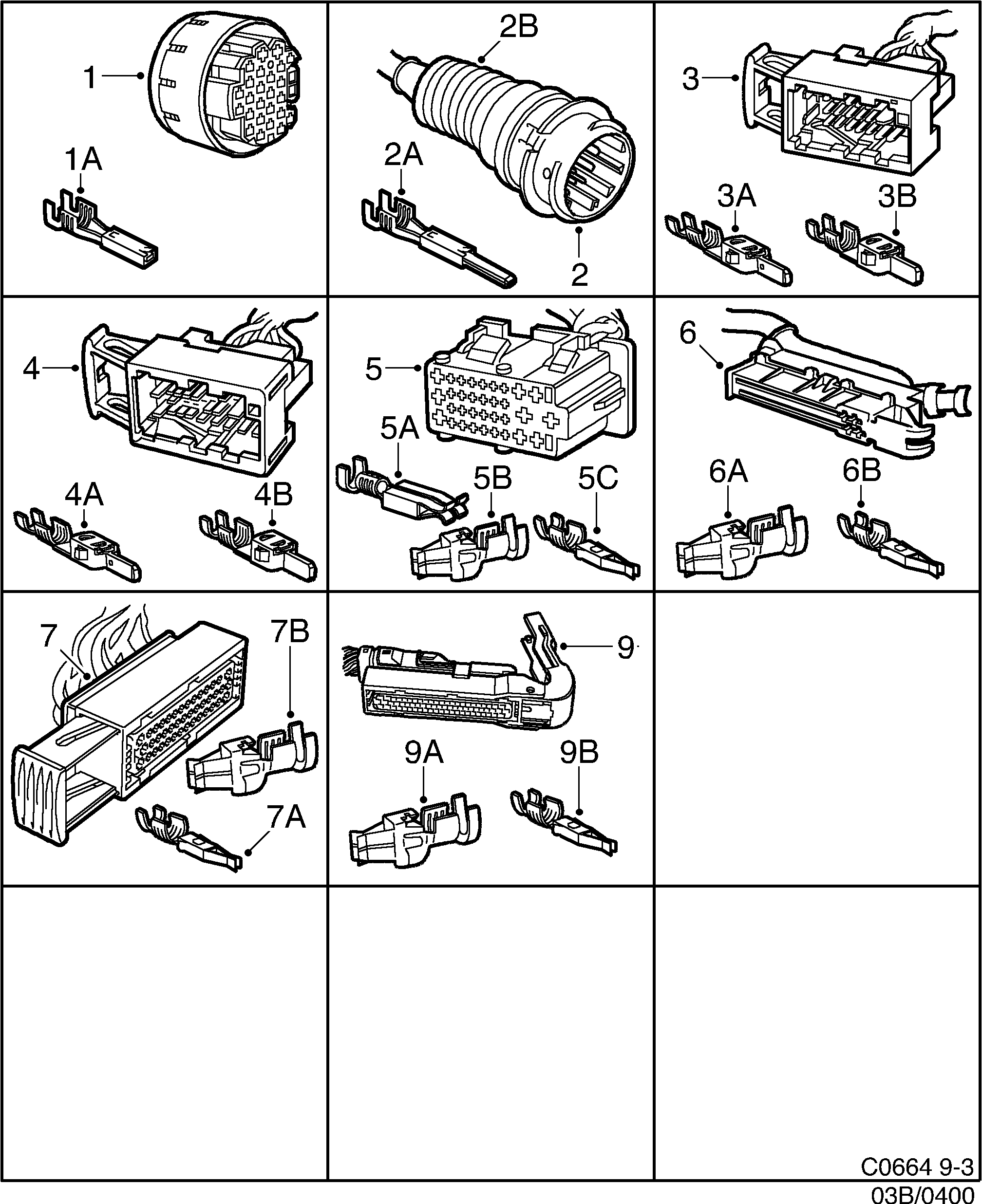

Saab 9-3 (9400) Connector housing etc 27-pin- diagram

Pos	Article	Part No.
1	Connector housing	4941779
1A	Cable terminal	4224846
1A	Cable terminal	4224861
2	Connector housing	4941787
2A	Cable terminal	4234373
2A	Cable terminal	4223616
2B	Protection	4222360
3	Connector housing	4806873
3A	Cable terminal	4115275
3A	Cable terminal	12790614 (replaces 4115457)
3A	Cable terminal	12789934 (replaces 4115077)
3B	Cable terminal	4115580
4	Connector housing	12798080 (replaces 4173852)
5	Connector housing	4806881
5A	Cable terminal	30520557 (replaces 9120791)
5B	Cable terminal	12789796 (replaces 9120957)
5C	Cable terminal	12790414 (replaces 4115499)
5	Connector housing	4806899
5	Connector housing	4806907
6	Connector housing	9565045
6B	Cable terminal	12790467 (replaces 4063970)
7	Connector housing	4115002
9	Connector housing	4176616
