Saab 9-3 (9400) 2001-2003 Connector housing etc 10-pin-22-pin

Group 3b Electrical, connector, section 390

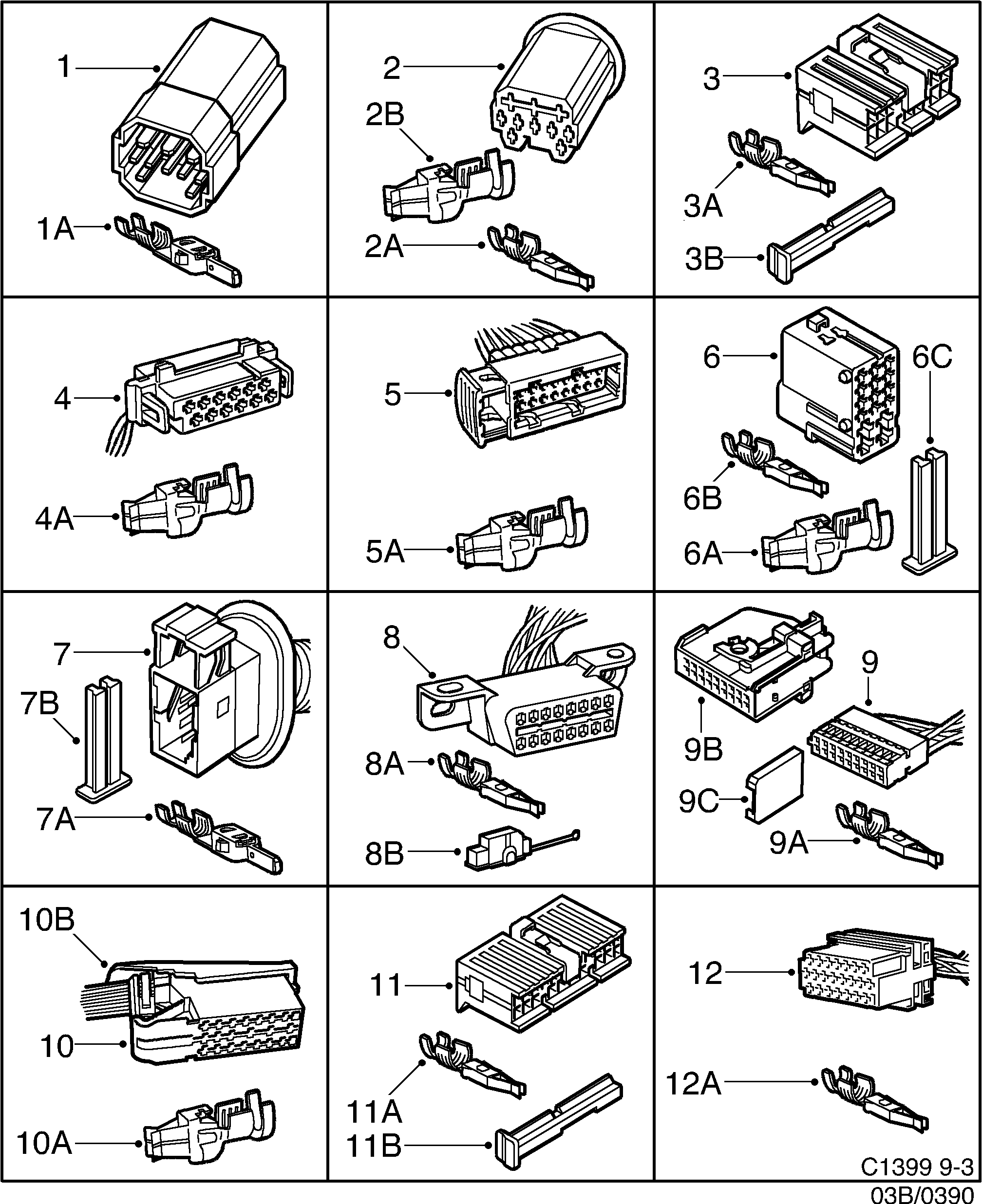

Saab 9-3 (9400) Connector housing etc 10-pin-22-pin diagram

Pos	Article	Part No.
1	Connector housing	4410510
1A	Cable terminal	12789934 (replaces 4115077)
2	Connector housing	12756334 (replaces 4411518)
2A	Cable terminal	12790414 (replaces 4115499)
2B	Cable terminal	12789796 (replaces 9120957)
3	Connector housing	4739165
3B	Locking	4739173
4	Connector housing	9525031
5	Connector housing	12791005 (replaces 4114401)
5A	Cable terminal	4061586
6	Connector housing	4737060
6C	Locking	4737086
7	Connector housing	4737102
7A	Cable terminal	12790614 (replaces 4115457)
8	Connector housing	4807954
8A	Cable terminal	4466801
8B	Cover	4434833
9	Connector housing	5243167
9A	Cable terminal	12789765 (replaces 5351713)
9A	Cable terminal	12789767 (replaces 5351721)
9B	Cover	5243175
9C	Locking	5247457
10	Connector housing	4060893
10A	Cable terminal	30520557 (replaces 9120791)
10B	Cover	4067617
11	Connector housing	4739181
11B	Locking	4739199
12	Connector housing	4223624
