Saab 9-3 (9400) 1998-2000 Connector housing etc 27-pin-70-pin

Group 3b Electrical, connector, section 280

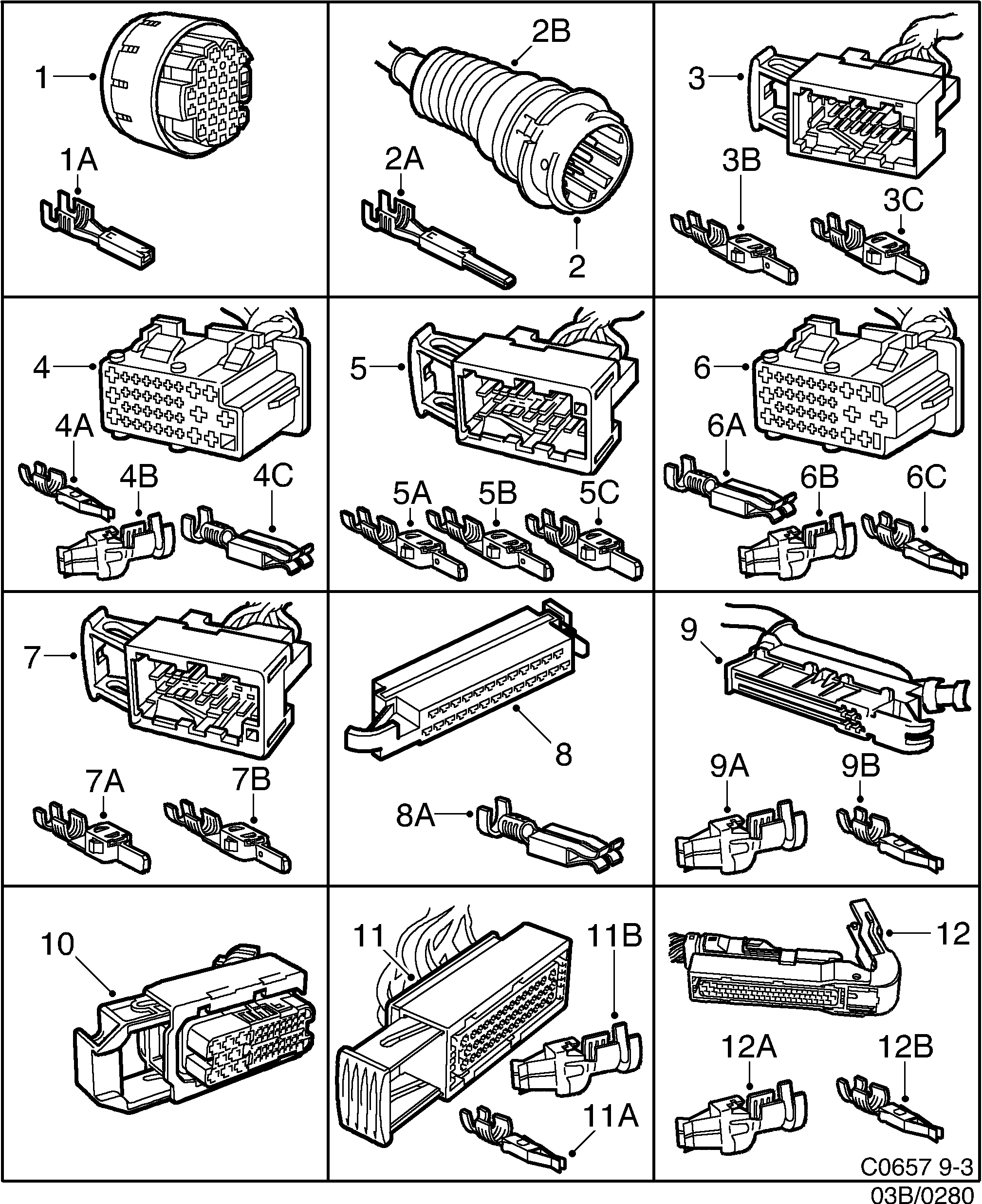

Saab 9-3 (9400) Connector housing etc 27-pin-70-pin diagram

Pos	Article	Part No.
1	Connector housing	4941779
1A	Cable terminal	4224846
1A	Cable terminal	4224861
2	Connector housing	4941787
2A	Cable terminal	4234373
2A	Cable terminal	4223616
2B	Protection	4222360
3	Connector housing	4806873
3B	Cable terminal	4115275
3B	Cable terminal	12790614 (replaces 4115457)
3B	Cable terminal	12789934 (replaces 4115077)
3C	Cable terminal	4115580
4	Connector housing	5241435 (replaces 4173803)
4A	Cable terminal	12790414 (replaces 4115499)
4B	Cable terminal	12789796 (replaces 9120957)
4C	Cable terminal	30520557 (replaces 9120791)
4	Connector housing	5241435
5	Connector housing	12798080 (replaces 4173852)
6	Connector housing	4811345
7	Connector housing	4811352
8	Connector housing	4203659
9	Connector housing	9565045
9B	Cable terminal	12790467 (replaces 4063970)
10	Connector housing	4813424
10A	Cable terminal	5249297
11	Connector housing	4115002
12	Connector housing	4176616
