Saab 9-3 (9400) 1998-2000 Connector housing etc 8-pin-10-pin

Group 3b Electrical, connector, section 220

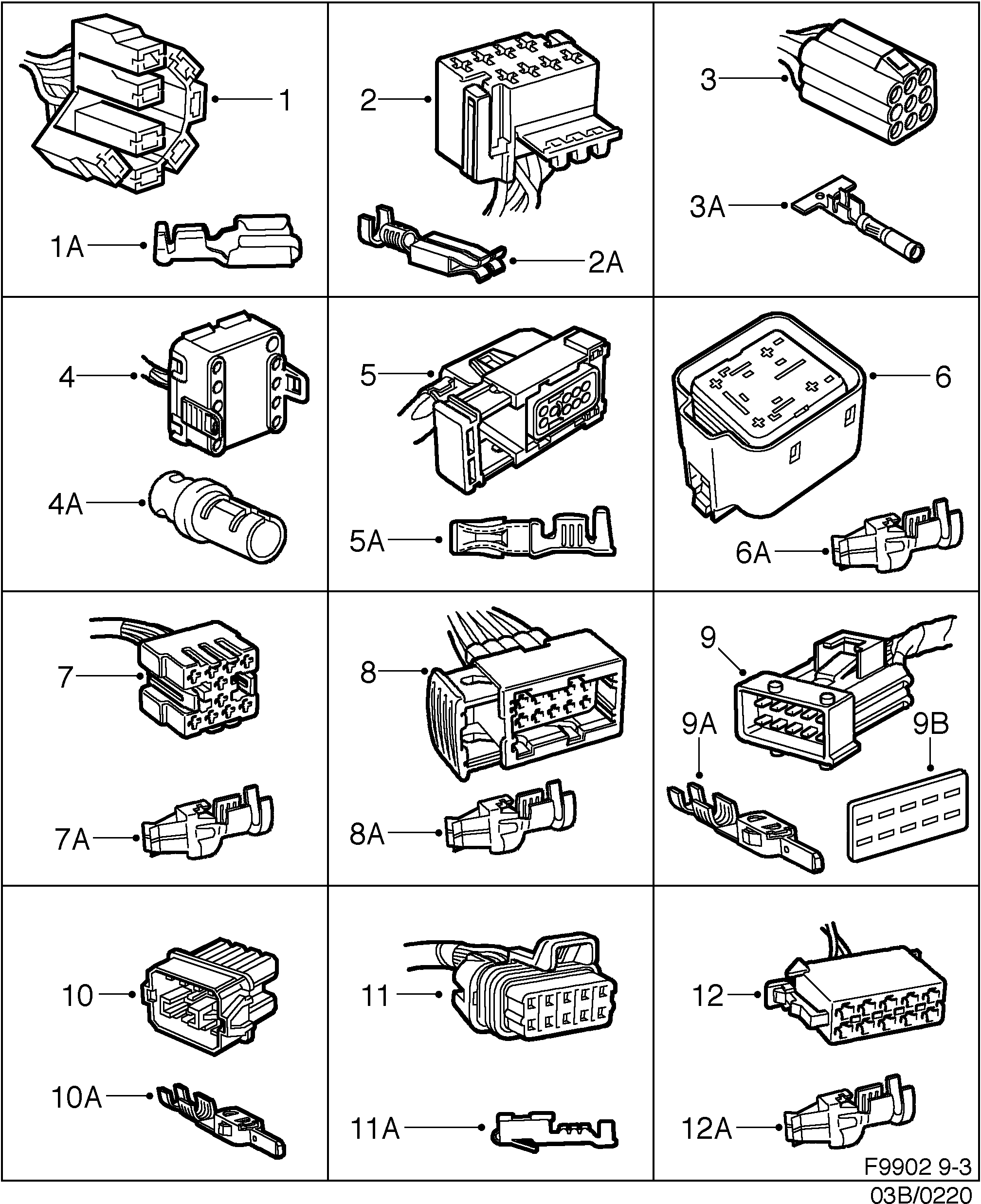

Saab 9-3 (9400) Connector housing etc 8-pin-10-pin diagram

Pos	Article	Part No.
1	Connector housing	8544363
1A	Cable terminal	4464400
2	Connector housing	9124090
2A	Cable terminal	30520557 (replaces 9120791)
3	Connector housing	4201208
3A	Cable terminal	30552537 (replaces 4409728)
4	Connector housing	4224457
4A	Cable terminal	9509746
5	Connector housing	4733192
5A	Cable terminal	4693222
5A	Cable terminal	4693230
6	Connector housing	12790277 (replaces 4941829)
6A	Cable terminal	4061586
7	Connector housing	12764801 (replaces 9123399)
7A	Cable terminal	12789796 (replaces 9120957)
8	Connector housing	12788954 (replaces 4114005)
9	Connector housing	12788959 (replaces 4114054)
9A	Cable terminal	12789934 (replaces 4115192)
9B	Seal	12788965 (replaces 4114153)
10	Connector housing	4117461
10A	Cable terminal	12789934 (replaces 4115077)
11	Connector housing	4203568
11A	Cable terminal	4418505
11B	Locking	4203576
12	Connector housing	4203634
