Saab 9-3 (9400) 1998-2000 Connector housing etc 4-pin-8-pin

Group 3b Electrical, connector, section 190

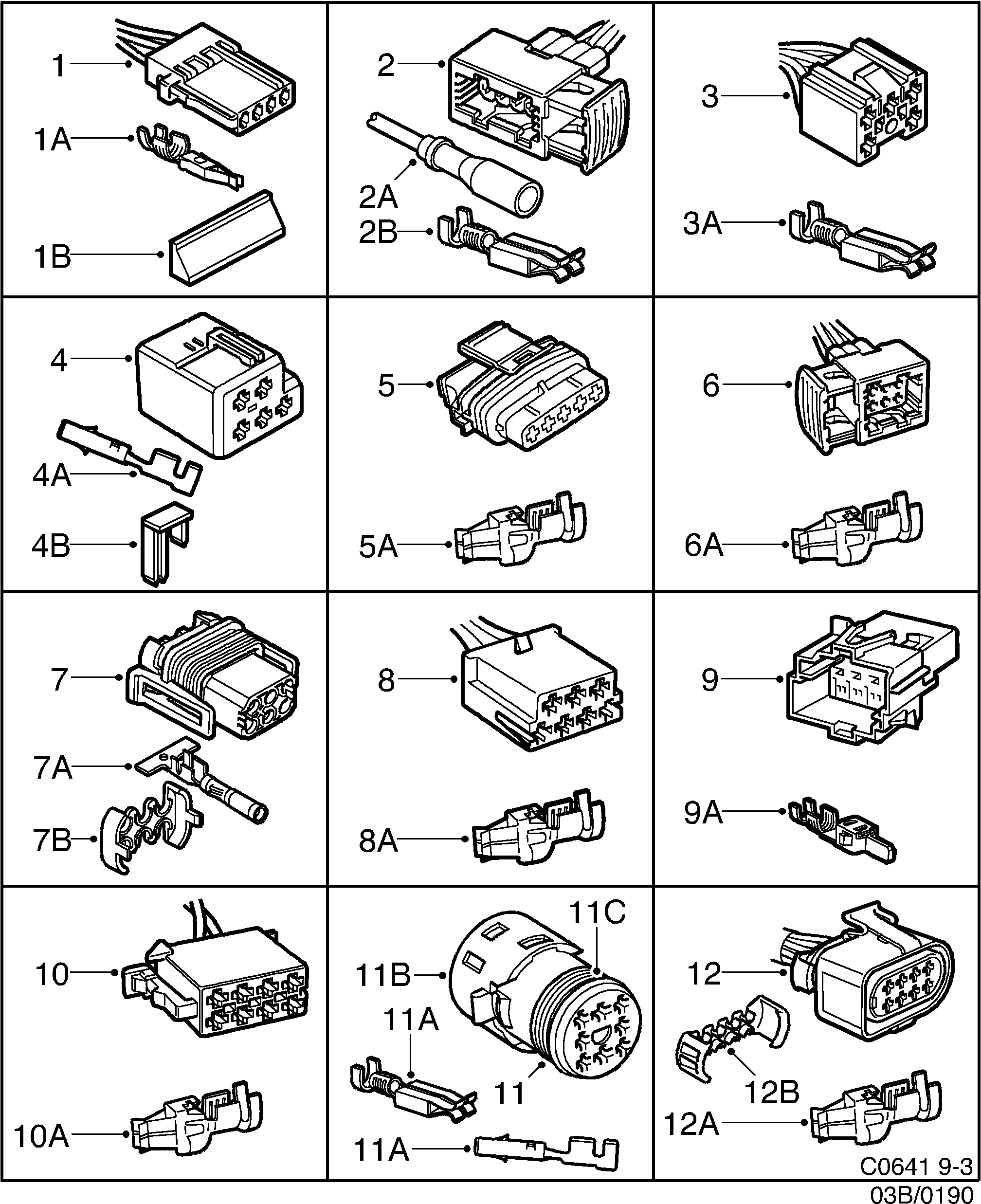

Saab 9-3 (9400) Connector housing etc 4-pin-8-pin diagram

Pos	Article	Part No.
1	Connector housing	12789433 (replaces 4733242)
1A	Cable terminal	12790414 (replaces 4115499)
1B	Locking	12789185 (replaces 4733267)
1	Connector housing	4733259
2	Connector housing	9503434
2A	Connector	8547804
2B	Cable terminal	4061586
3	Connector housing	4224168
3A	Cable terminal	30520557 (replaces 9120791)
4	Connector housing	12793897 (replaces 4463014)
4A	Cable terminal	12756961 (replaces 4412961)
4B	Locking	4463022
5	Connector housing	4738886
6	Connector housing	12788966 (replaces 4113809)
6A	Cable terminal	12789796 (replaces 9120957)
7	Connector housing	4733309
7A	Cable terminal	4734513
7B	Cover	12764467 (replaces 4733176)
8	Connector housing	9123381
9	Connector housing	4117768
9A	Cable terminal	4115580
10	Connector housing	4203618
10	Connector housing	12802178 (replaces 4203626)
11	Connector housing	4466462
11A	Cable terminal	4350526
11A	Cable terminal	4538229
11B	Cover	4466470
11C	Seal	4692828
12	Connector housing	4806568
12B	Locking	4806576
