Saab 9-3 (9400) 2000-2000 ONSTAR

Group 3a Electrical, general, section 945

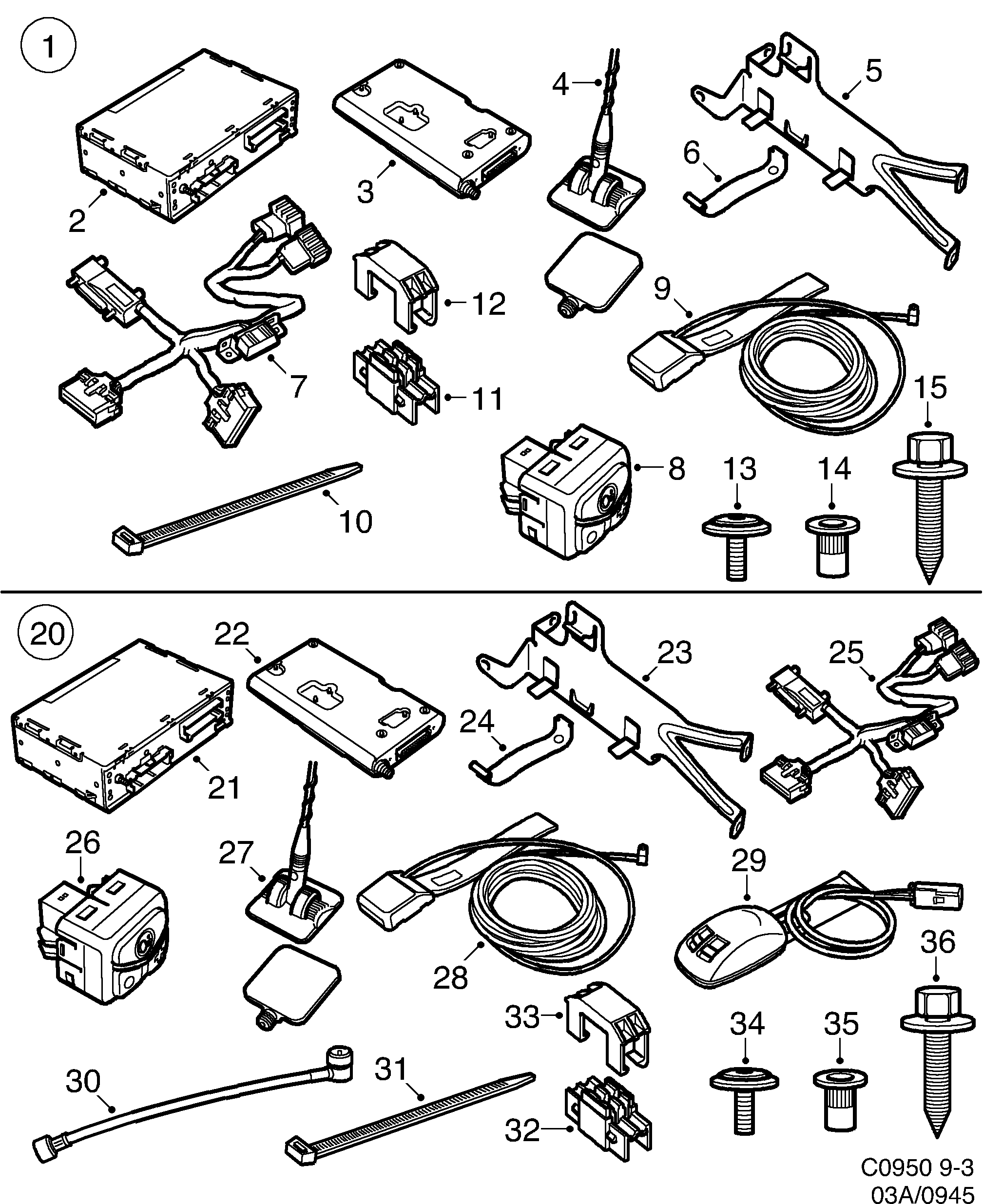

Saab 9-3 (9400) ONSTAR diagram

Pos	Article	Part No.
1	Mounting kit	5044979
2	Electronic unit	5370556 (replaces 5043443)
3	Electronic unit	5043450
4	Electronic unit	5262076
5	Bracket	5043674
6	Clip	5043682
7	Cable harness	5043732
8	Button	5044722
9	Electronic unit	5260310
10	Tie strap	5264072
11	Splice	5264080
12	Splice	5264098
13	Screw	5264106
14	Nut	5264114
15	Screw	5264122
	Assembly instruction	5260609
	Users manual	5261201
	Instructions	5261219
20	Mounting kit	5044987
25	Cable harness	5261326
27	Electronic unit	5043484
28	Electronic unit	5264692
29	Microphone	5260302
30	Antenna cable	5262118
	Assembly instruction	5260617
