Saab 9-3 (9400) 1998-2003 Washer unit

Group 3a Electrical, general, section 670

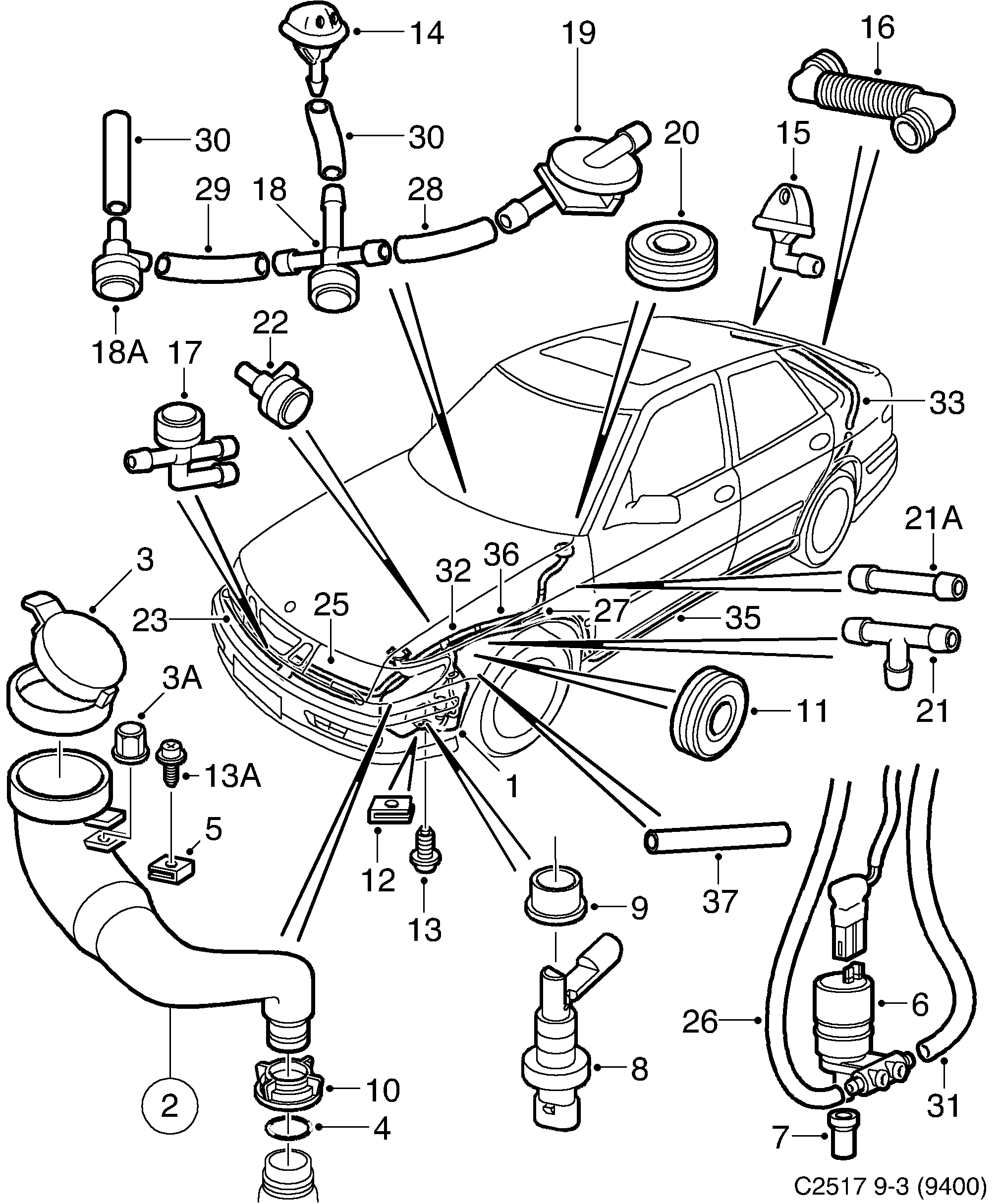

Saab 9-3 (9400) Washer unit diagram

Pos	Article	Part No.
1	Washer fluid reservoir	4787057
2	Filler pipe	4380804
2	Filler pipe	4572046
3	Cover	4092359
3	Cover	12767700 (replaces 4563292)
3A	Plastic nut	92152035 (replaces 4087128)
4	O-ring	4380820
5	Clip nut	7968001
6	Washer pump	4674230
6	Washer pump	4320123
7	Bushing	9507617
8	Level sender	4916961 (replaces 4240792)
9	Bushing	4240800
10	Plastic nut	4240750
11	Bushing	90221243 (replaces 4401659)
12	Clip nut	7967995
13	Screw	7973001
13	Hexagon screw	7978661
13A	Hexagon screw	92153149 (replaces 7983000)
14	Nozzle	8504144
15	Nozzle	4916862
16	Grommet	4247565
17	Valve	5142740
18	Valve	5142765
18A	Valve	5142757
19	Connector	4094199
20	Bushing	7961345
21	Tube	4674800
21A	Tube	4674792
23	Hose	8548273
26	Hose	8549339
35	Hose	4373536
37	Rubber hose	4831053
