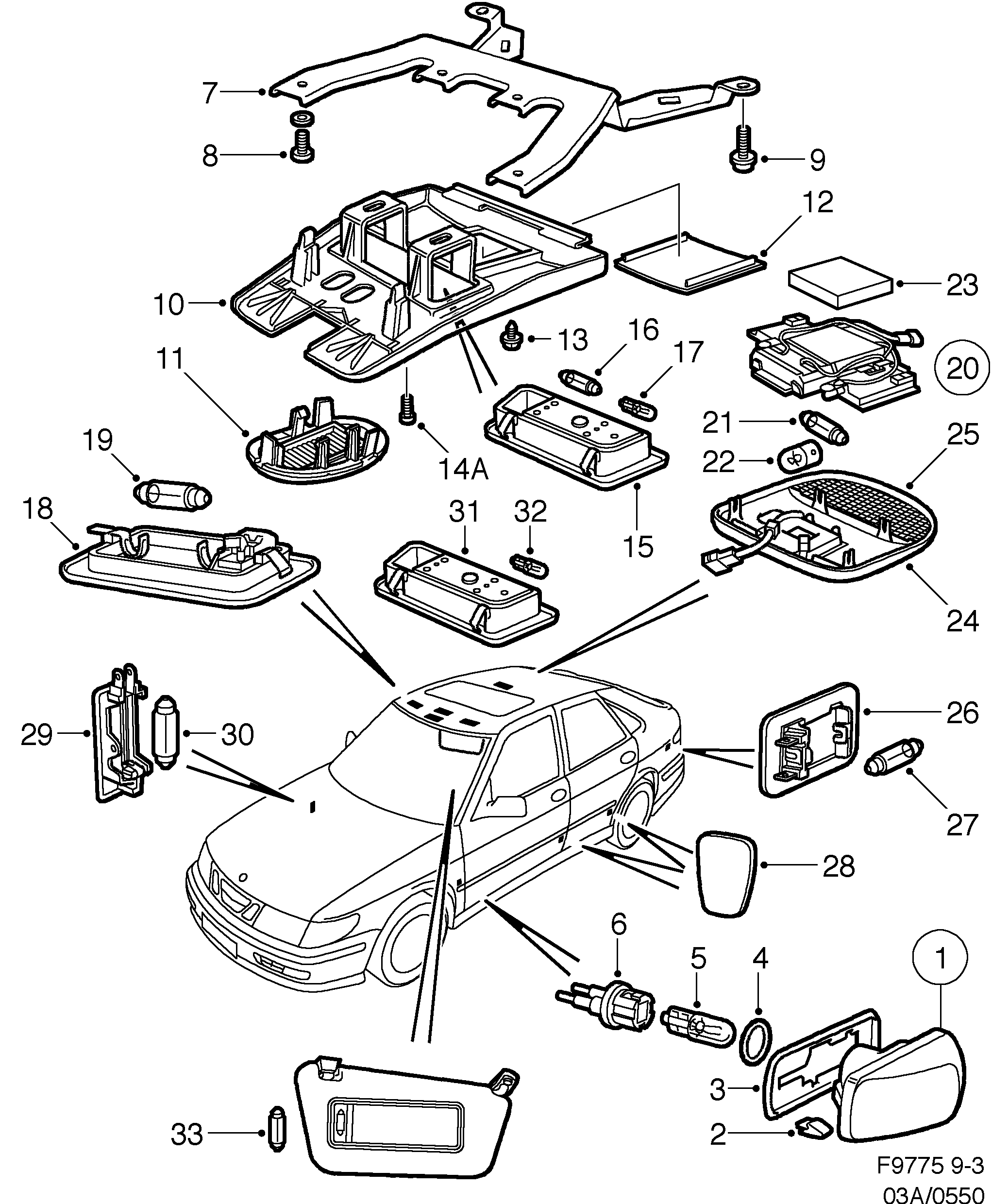

Group 3a Electrical, general, section 550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Side light | 9124132 |
| 1 | Side light | 5336250 (replaces 5142807) |
| 1 | Side indicator lamp | 5336250 (replaces 8692006) |
| 1 | Side indicator lamp | 5336250 |
| 2 | Clip | 4830113 |
| 3 | Seal | 9124140 |
| 4 | Gasket | 4484259 |
| 5 | Bulb | 93190471 (replaces 9512880) |
| 5 | Bulb | 8693285 |
| 6 | Bulb socket | 9521857 |
| 7 | Bracket | 4931176 |
| 8 | Screw | 92151885 (replaces 7978638) |
| 9 | Screw | 90355126 (replaces 4087599) |
| 10 | Roof bracket | 4707741 |
| 10 | Roof bracket | 4707733 |
| 11 | Grille | 4794699 |
| 12 | Hatch | 4794707 |
| 13 | Clip | 5092515 |
| 14 | Clamp | 12763576 (replaces 4388757) |
| 14A | Screw | 7967771 |
| 15 | Interior lighting | 4708855 |
| 16 | Bulb | 93190936 (replaces 8501264) |
| 18 | Lamp | 4605127 |
| 19 | Bulb | 7084197 |
| 20 | Dome lamp | 5565825 (replaces 5007885) |
| 22 | Bulb | 12798497 (replaces 7157308) |
| 23 | Spacer | 4936514 |
| 23 | Spacer | 4936522 |
| 24 | Lamp lens | 400131546 (replaces 4935318) |
| 24 | Lamp lens | 400131546 (replaces 5040977) |
| 24 | Lamp lens | 5265863 |
| 24 | Lamp lens | 400127064 (replaces 5001045) |
| 24 | Lamp lens | 400127064 (replaces 5040985) |
| 25 | Lamp lens | 4642559 |
| 26 | Lamp | 4683181 |
| 27 | Bulb | 7985864 |
| 28 | Reflector tag | 5466008 (replaces 4471082) |
| 29 | Lamp | 90306633 (replaces 4202107) |
| 31 | Sensor | 400128930 (replaces 4714812) |
| 33 | Bulb | 4486684 |
