Saab 9-3 (9400) 1998-2003 Trionic

Group 3a Electrical, general, section 340

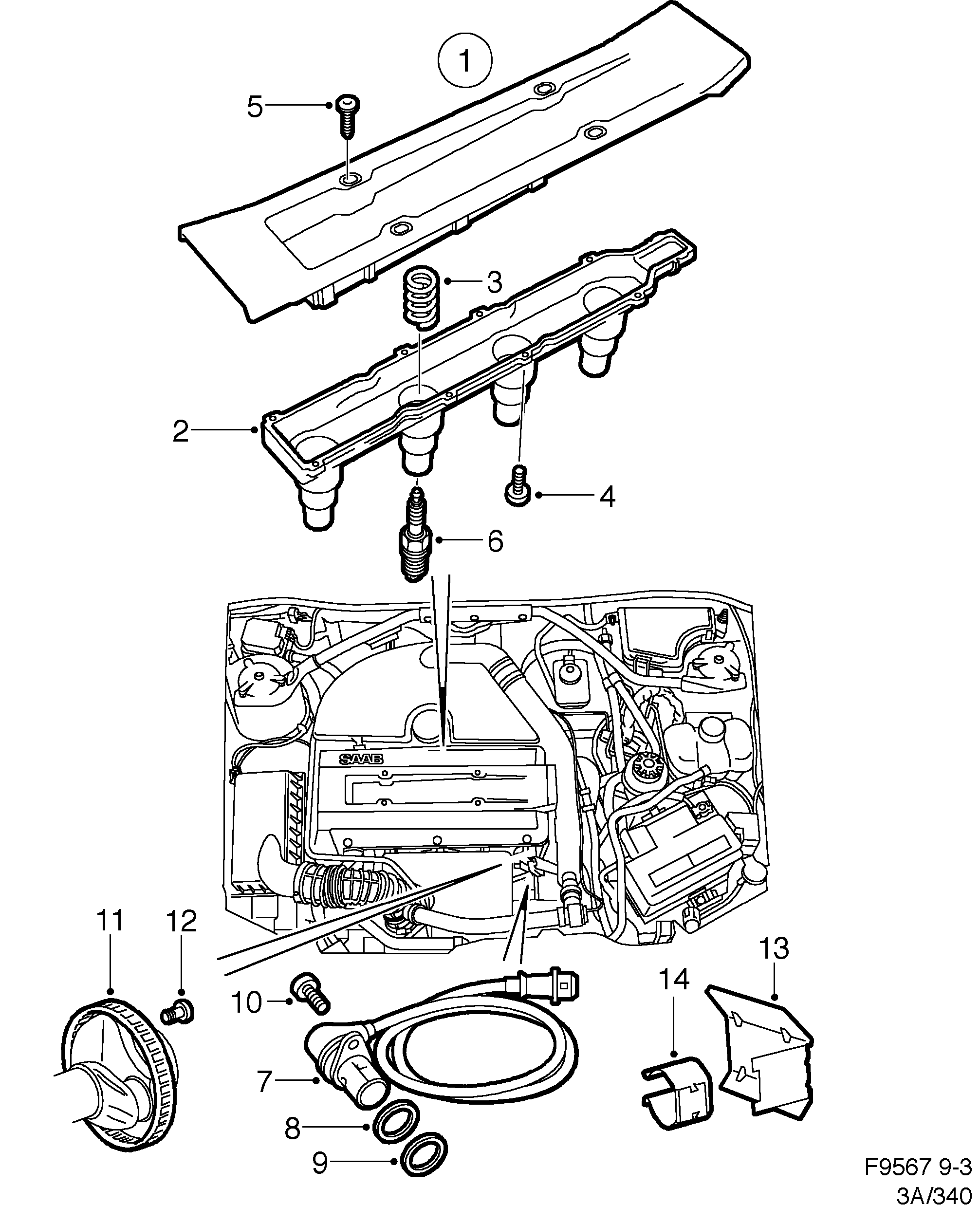

Saab 9-3 (9400) Trionic diagram

Pos	Article	Part No.
1	Ignition discharge module	55561132 (replaces 9178955)
1	Ignition cassette	55559955 (replaces 9187980)
1	Ignition cassette	55559955 (replaces 30583218)
2	Lower section	9167016
3	Spring	9167032
4	Screw	7968316
5	Screw	30551902 (replaces 9145764)
5	Screw	5125885
6	Spark plug	32000330
6	Spark plug	9399866 (replaces 9188681)
6	Spark plug	9399866
6	Spark plug	30520467
7	Crankshaft position sensor	90451441 (replaces 4227203)
7	Crankshaft position sensor	55557326 (replaces 9177221)
8	Support ring	93166804
9	O-ring	9171117
10	Screw	7971294
10	Screw	92151821 (replaces 8059552)
11	Aperture disc	55557241 (replaces 9167024)
12	Screw	55557242 (replaces 9145517)
13	Protection	4063459
13	Heat shield	55558929 (replaces 9181355)
14	Clip	4060083
14	Clip	4158762
