Saab 9-3 (9400) 1998-2000 Motronic

Group 3a Electrical, general, section 250

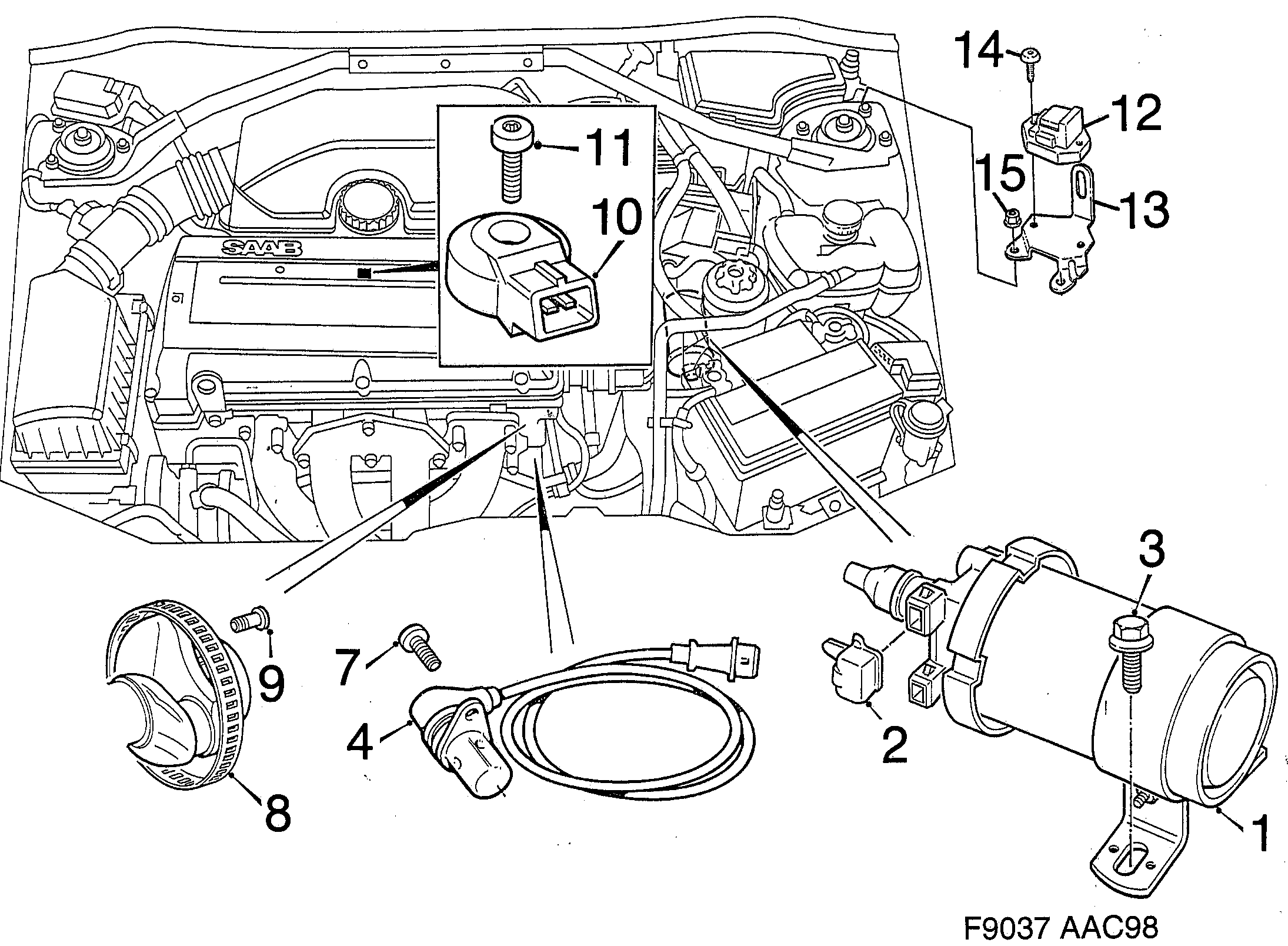

Saab 9-3 (9400) Motronic diagram

Pos	Article	Part No.
1	Ignition coil	30584237 (replaces 4226031)
1	Ignition coil	30584237 (replaces 5171111)
2	Protecting casing	4394565
3	Hexagon screw	7978661
4	Crankshaft position sensor	55557326 (replaces 9177221)
7	Screw	7971294
8	Aperture disc	55557241 (replaces 9167024)
9	Screw	55557242 (replaces 9145517)
10	Knock sensor	9142415
10	Knock sensor	4300729
11	Hexagon screw	11900367 (replaces 7978216)
12	Accelaration picup	4239216
13	Bracket	4394300
14	Screw	7922370
15	Plastic nut	92152035 (replaces 4087128)
