Saab 9-3 (9400) 2000-2000 Starter motor

Group 3a Electrical, general, section 222

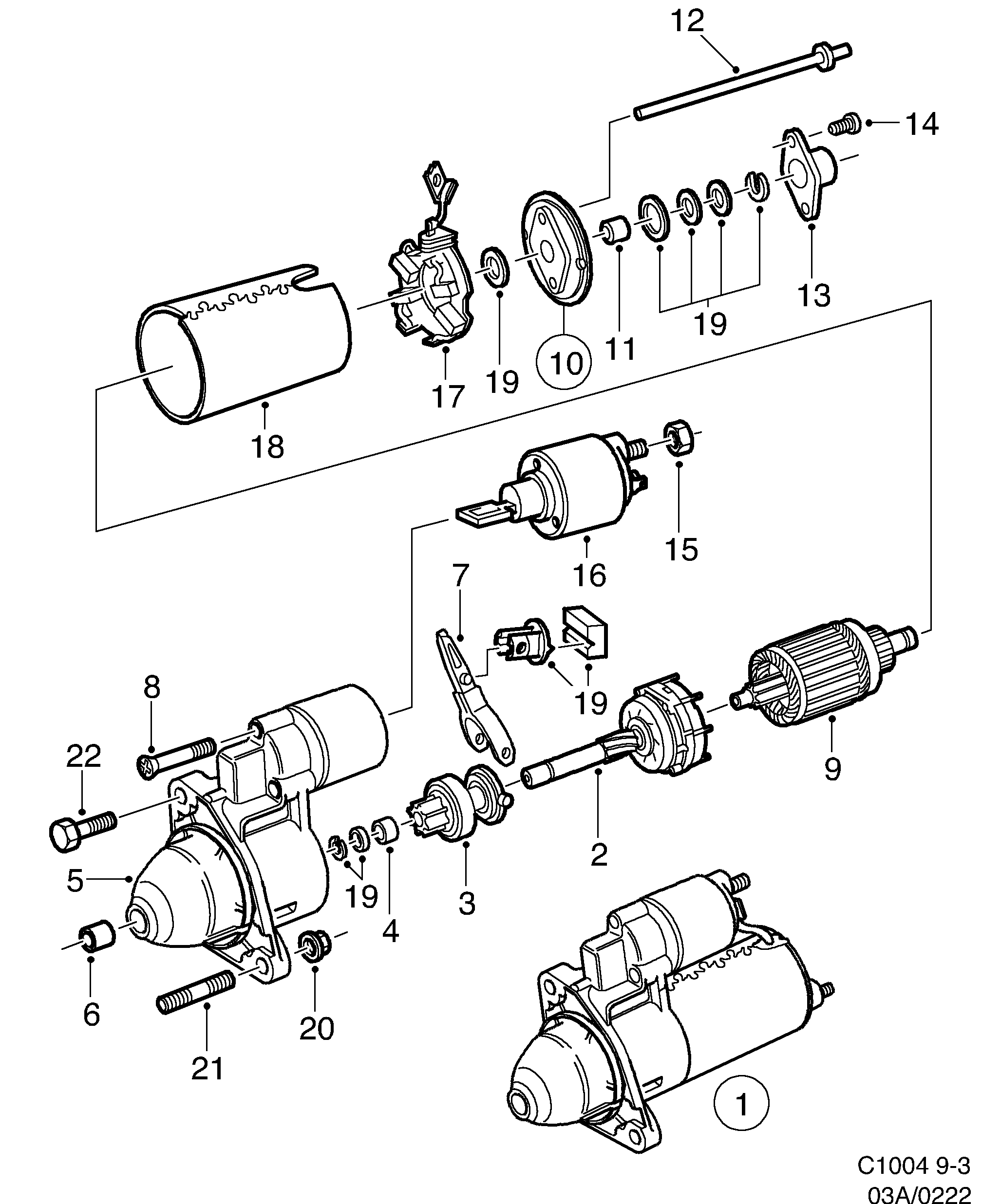

Saab 9-3 (9400) Starter motor diagram

Pos	Article	Part No.
1	Starter motor	4235610
2	Planetary gear	7535255
3	Drive gear	4160099
4	Bearing bushing	7527732
5	Gear house	4443750
6	Bearing bushing	7527757
7	Engagement lever	7527765
8	Screw	7535271
9	Rotor	4443768
10	Ball bearing	7535297
11	Bearing bushing	7527807
12	Screw	7535305
13	Cap	7535313
14	Screw	7535321
15	Nut	7535339
16	Actuator solenoid	4443776
17	Plate	4443784
18	Gauges	7527872
19	Kit	7527880
20	Flange nut	92150135 (replaces 7984776)
21	Stud	92151911 (replaces 7971112)
22	Screw	55557007 (replaces 7984297)
