Saab 9-3 (9400) 1998-2002 Bosch 120A

Group 3a Electrical, general, section 190

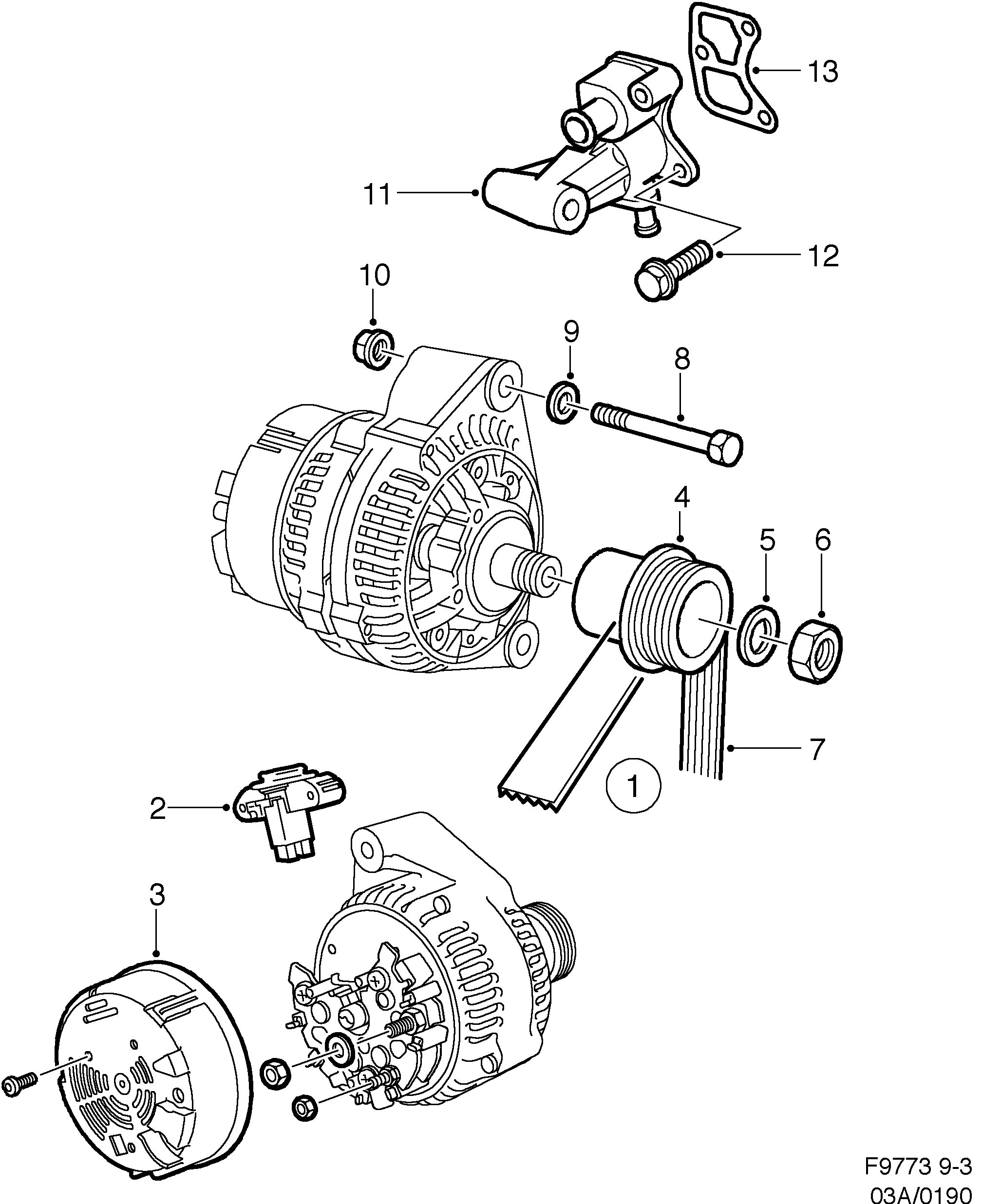

Saab 9-3 (9400) Bosch 120A diagram

Pos	Article	Part No.
1	Generator	5246889 (replaces 4665881)
1	Generator	5246889
2	Voltage regulator	5246863 (replaces 4737151)
2	Voltage regulator	5246863
3	Protection	4928123
4	Pulley	5543194 (replaces 4928115)
5	Washer	4489316
6	Nut	4489308
8	Screw	7979263
9	Washer	8073108
10	Flange nut	92150135 (replaces 7984776)
11	Bracket	90502046 (replaces 9544487)
12	Screw	11096481
13	Gasket	90502133 (replaces 9544511)
