Saab 9-3 (9400) 1998-2003 Battery

Group 3a Electrical, general, section 100

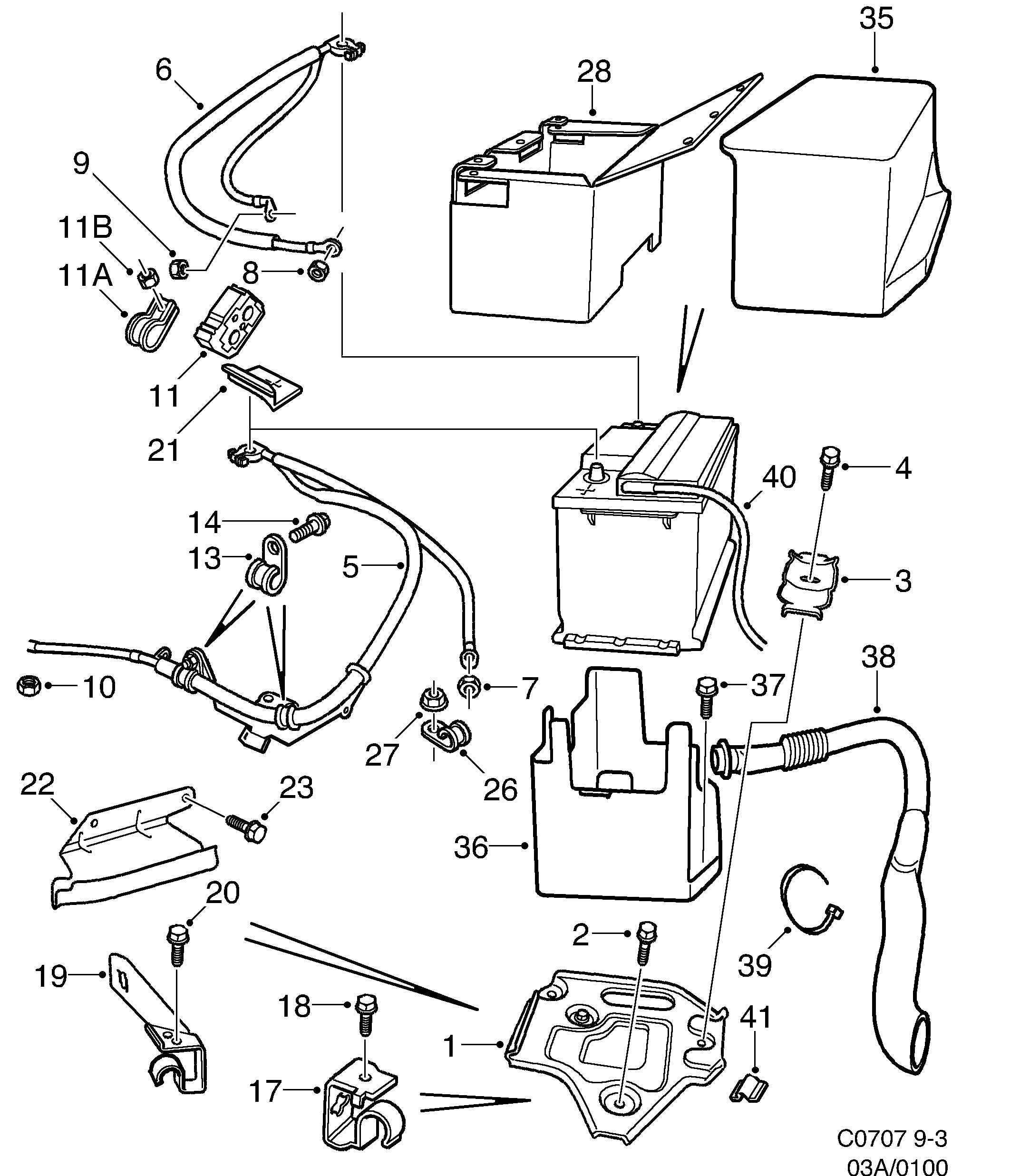

Saab 9-3 (9400) Battery diagram

Pos	Article	Part No.
1	Battery tray	4335527
2	Screw	11900353 (replaces 7978091)
3	Brace	90228223 (replaces 4222667)
4	Hexagon screw	11900367 (replaces 7978216)
5	Cable	5243555 (replaces 4948816)
5	Cable	5243555 (replaces 5100409)
5	Battery cable	5243555
5	Cable	4734943
6	Cable	4946182
6	Cable	4946174
6	Cable	5107719
6	Cable	5107727
7	Hexagon nut	11900452 (replaces 7977952)
8	Hexagon nut	5125984
9	Nut	8151243
10	Nut	11900451 (replaces 7977929)
11	Clip	4411369
11A	Clip	5108170
13	Clamp	7969405
14	Screw	92153146
17	Bracket	4536090
17	Bracket	5108105
19	Clamp	4733093
21	Cover	4582425
22	Clamp	4739108
26	Clamp	4685384
27	Lock nut	92150265 (replaces 8073512)
28	Heat shield	4947529
35	Battery cover	30586808 (replaces 5107800)
36	Battery cover	5107792
37	Screw	92150012 (replaces 7978182)
38	Air duct	5107669
38	Air duct	5353222
39	Tie strap	11900513 (replaces 92150191)
40	Draining hose	4949475
41	Clip	4940920
