Saab 9-3 (9400) 1999-2003 Intake manifold

Group 2 Engine, section 795

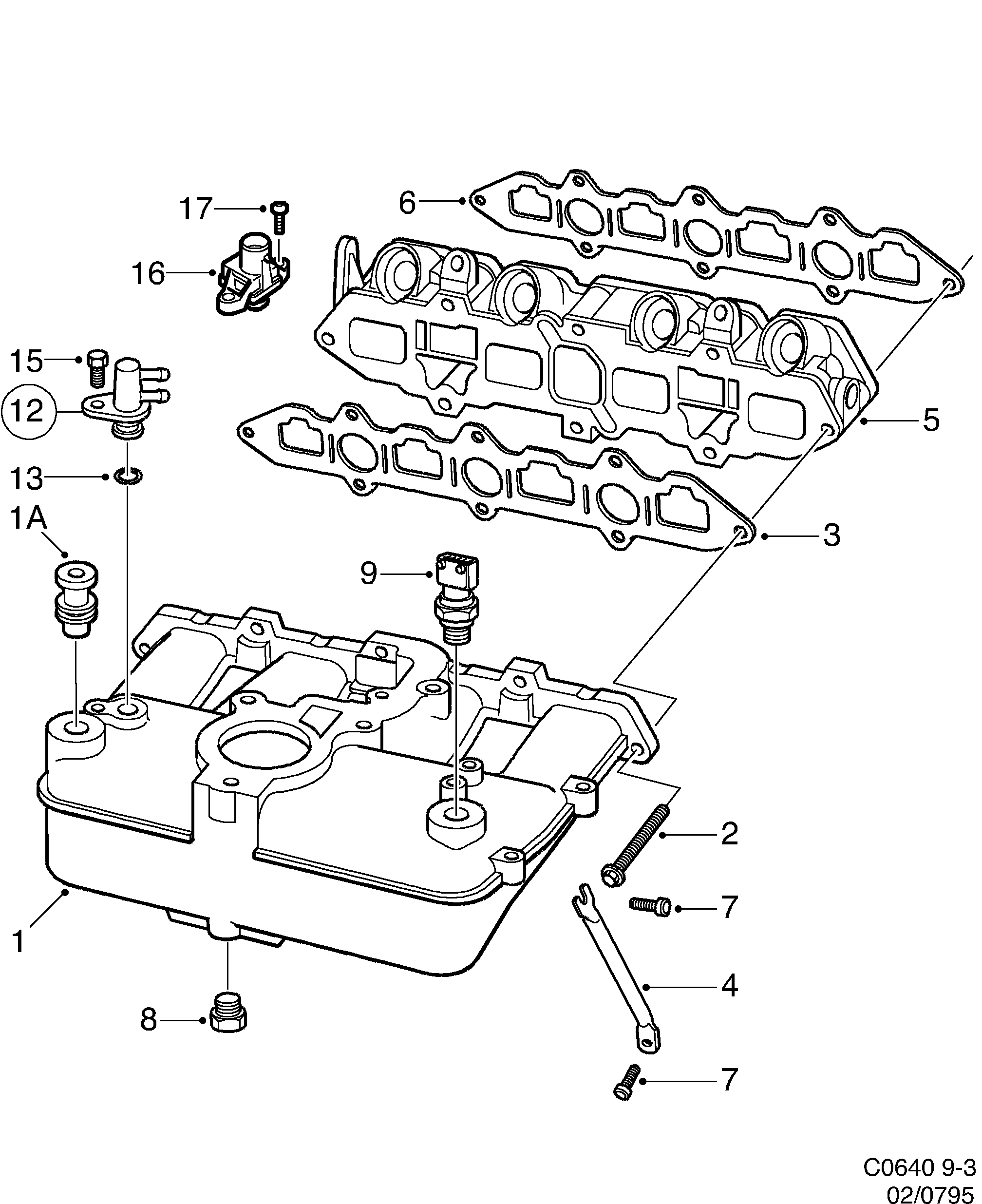

Saab 9-3 (9400) Intake manifold diagram
PosArticlePart No.
1Intake manifold9186107
1Intake manifold30584298 (replaces 9192592)
1Intake manifold5958855 (replaces 9399528)
1Intake manifold5958855
1ANipple55557389 (replaces 9179318)
2Screw32000289 (replaces 7982515)
2Hexagon screw11900367 (replaces 7978216)
3Gasket9186404
4Brace55557284 (replaces 9180845)
5Flange4774477 (replaces 9185844)
6Gasket55355267 (replaces 9186412)
7Screw92150012 (replaces 7978182)
8Plug8123739
9Charge Air Absolute Pressure Sensor9171497
12Nipple55558115 (replaces 9178989)
12Nipple55558115 (replaces 32000438)
13O-ring9137993
15Screw11900354 (replaces 7978109)
15Screw5125885
16Charge Air Absolute Pressure Sensor90490743 (replaces 9197930)
17Screw92150458 (replaces 8059263)
