Saab 9-3 (9400) 2001-2003 Intake manifold

Group 2 Engine, section 792

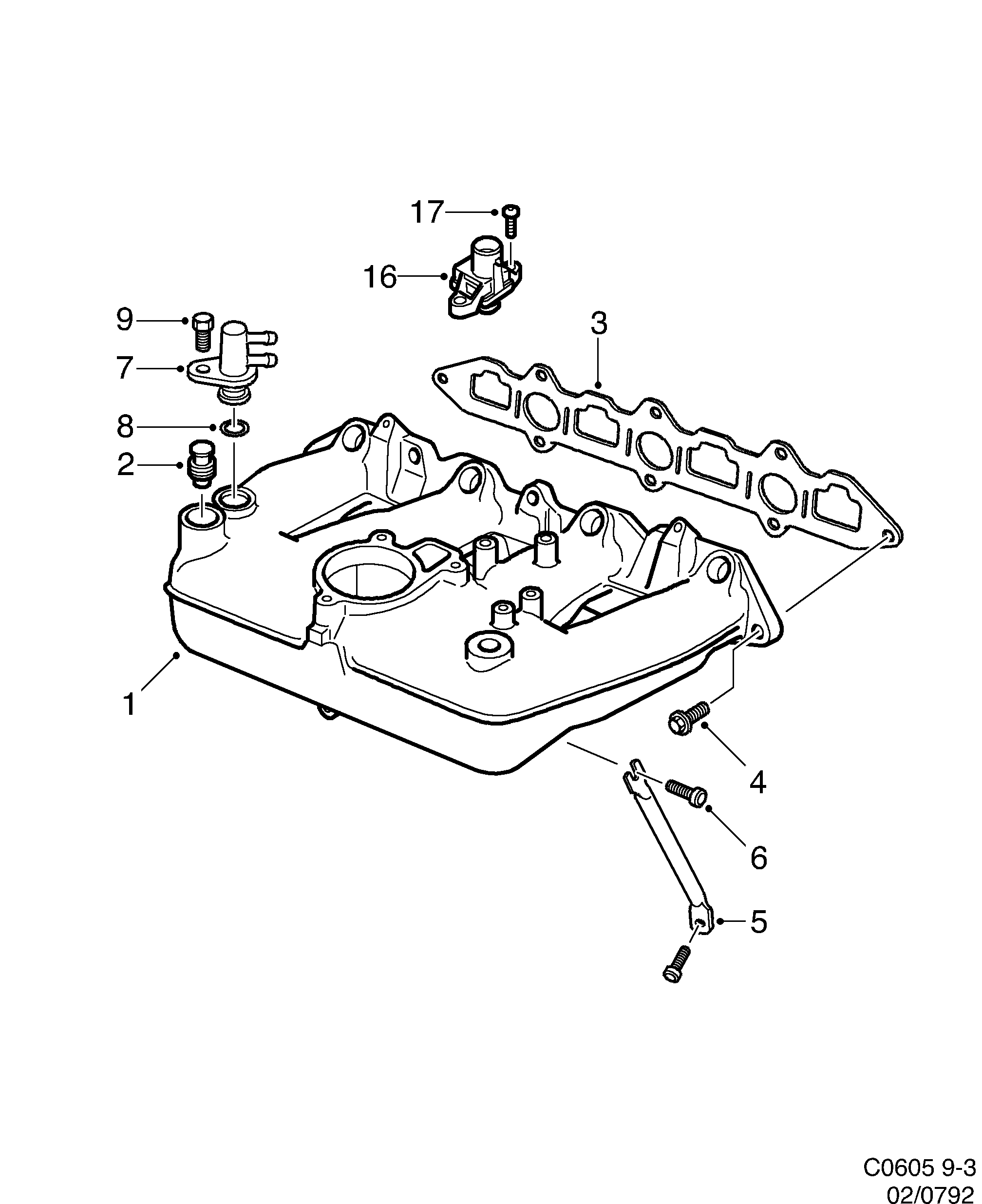

Saab 9-3 (9400) Intake manifold diagram
PosArticlePart No.
1Intake manifold5958855 (replaces 9399528)
1Intake manifold5958855
2Nipple55557389 (replaces 9179318)
3Gasket55355267 (replaces 9186412)
4Hexagon screw11900367 (replaces 7978216)
5Brace55557284 (replaces 9180845)
6Screw92150012 (replaces 7978182)
7Nipple55558115 (replaces 9178989)
7Nipple55558115 (replaces 32000438)
8O-ring9137993
9Screw11900354 (replaces 7978109)
9Screw5125885
16Charge Air Absolute Pressure Sensor90490743 (replaces 9197930)
17Screw92150458 (replaces 8059263)
