Saab 9-3 (9400) 1998-2002 Injection pump Injection valve

Group 2 Engine, section 680

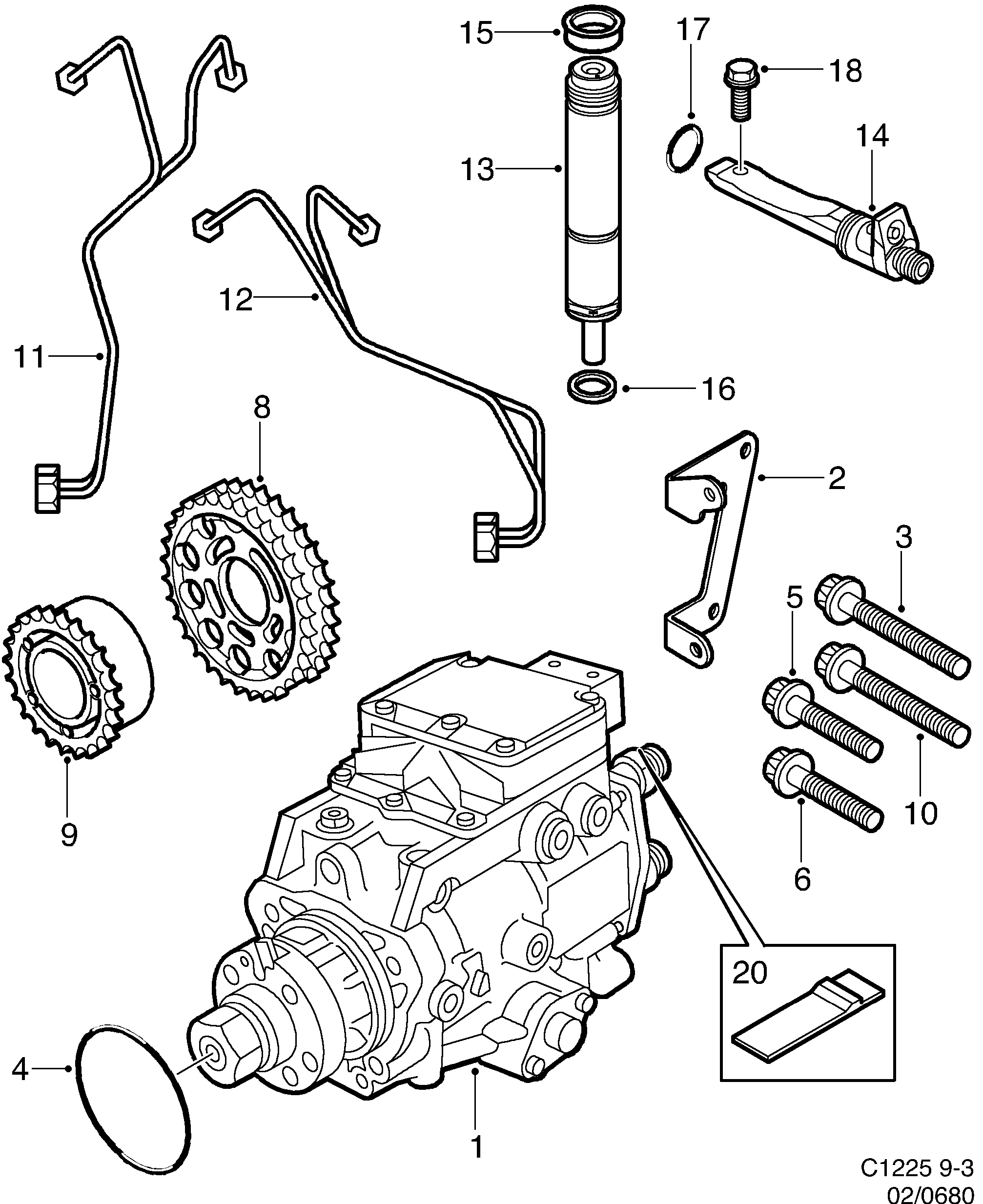

Saab 9-3 (9400) Injection pump Injection valve diagram

Pos	Article	Part No.
1	Injection pump	4773206
1	Injection pump	93171119
2	Bracket	90500946
2	Bracket	9202068 (replaces 9544032)
3	Screw	90502873 (replaces 9543992)
4	Seal	24416344 (replaces 4773255)
4	Seal	24416344 (replaces 9544040)
5	Screw	11096811 (replaces 4773156)
6	Screw	11095071 (replaces 9544057)
8	Chain gear	24410175 (replaces 4773289)
8	Chain gear	24410175 (replaces 9544065)
9	Chain gear	90500699 (replaces 4773297)
9	Chain gear	90500699 (replaces 9544073)
10	Screw	11096483 (replaces 4773180)
10	Screw	11096483 (replaces 4773719)
12	Injection pipe	24423393 (replaces 4773321)
12	Injection pipe	55353028 (replaces 4774204)
12	Injection pipe	55353028 (replaces 9544198)
11	Injection pipe	24423394 (replaces 4773339)
11	Injection pipe	55353029 (replaces 4774212)
11	Injection pipe	55353029 (replaces 9544206)
13	Injector	9117808 (replaces 4772323)
13	Injector	9196701 (replaces 9542887)
14	Carrier	90573868 (replaces 9542911)
15	Seal	90502704 (replaces 9542903)
16	Seal	9117693 (replaces 9542895)
17	O-ring	90500732 (replaces 9542929)
18	Screw	11096852 (replaces 9542937)
20	Wear protection	5335161
