Saab 9-3 (9400) 1999-2002 Fuel rail

Group 2 Engine, section 675

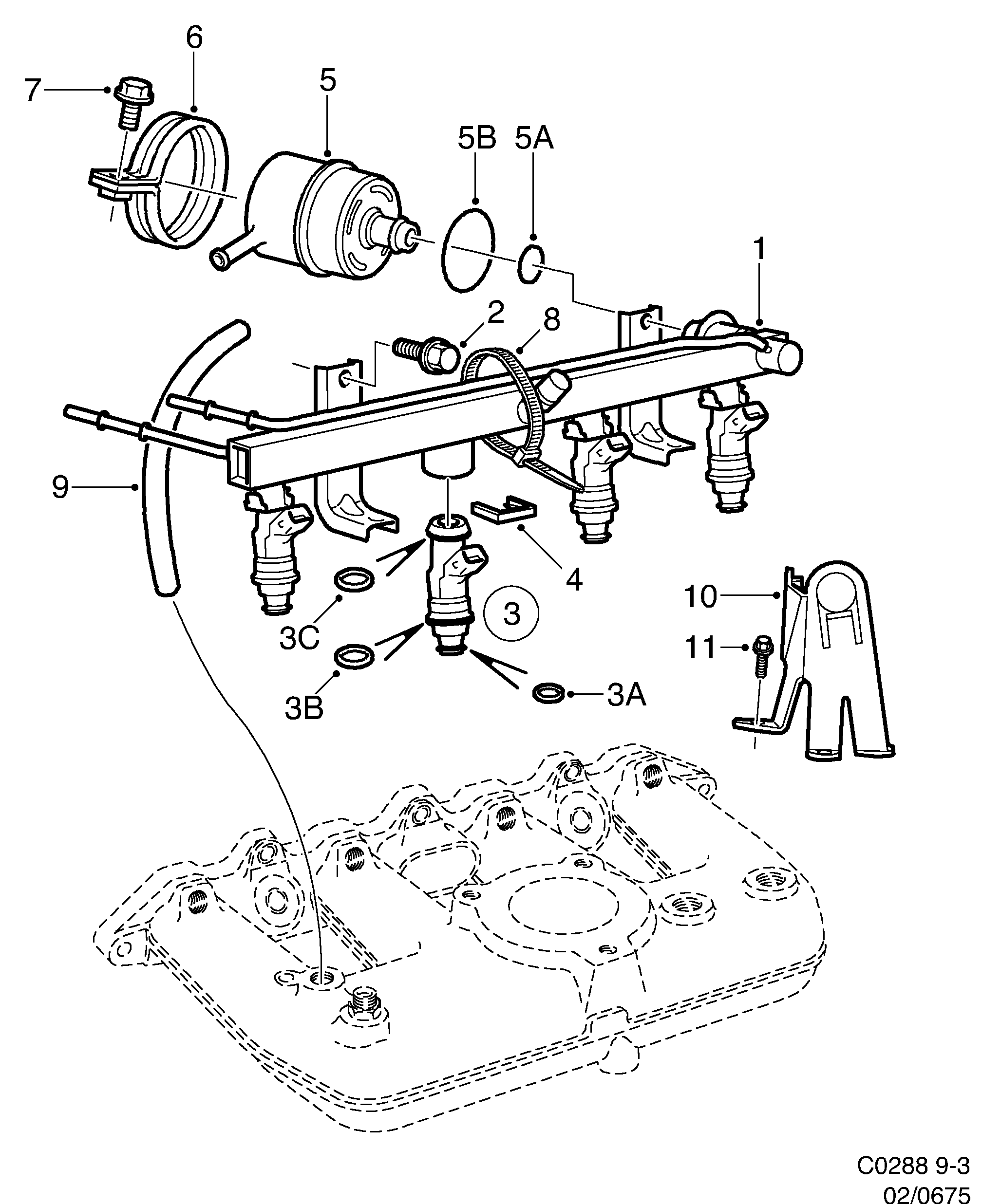

Saab 9-3 (9400) Fuel rail diagram

Pos	Article	Part No.
1	Tube	9187493
1	Distribution pipe	9192493
1	Distribution pipe	30587777 (replaces 9199308)
2	Screw	11900353 (replaces 7978091)
3	Injection valve	9177122
3	Injection valve	55557323 (replaces 9181322)
3A	O-ring	30580305 (replaces 9197674)
3B	O-ring	30580306 (replaces 9197690)
3C	O-ring	90541911 (replaces 9197708)
4	Clamp	9356486 (replaces 9175464)
4	Clamp	55559480 (replaces 9198342)
5	Fuel pressure regulator	9118850 (replaces 4503793)
5	Fuel pressure regulator	9118850 (replaces 9483538)
5A	Washer	90511960
5B	O-ring	90511961
6	Clamp	9542424 (replaces 4503819)
6	Clamp	9542424
7	Screw	11900379 (replaces 7978380)
8	Tie strap	7971872
9	Vaccum hose	9136243
10	Bracket	55558301 (replaces 9175035)
11	Screw	11900354 (replaces 7978109)
11	Screw	7972466
