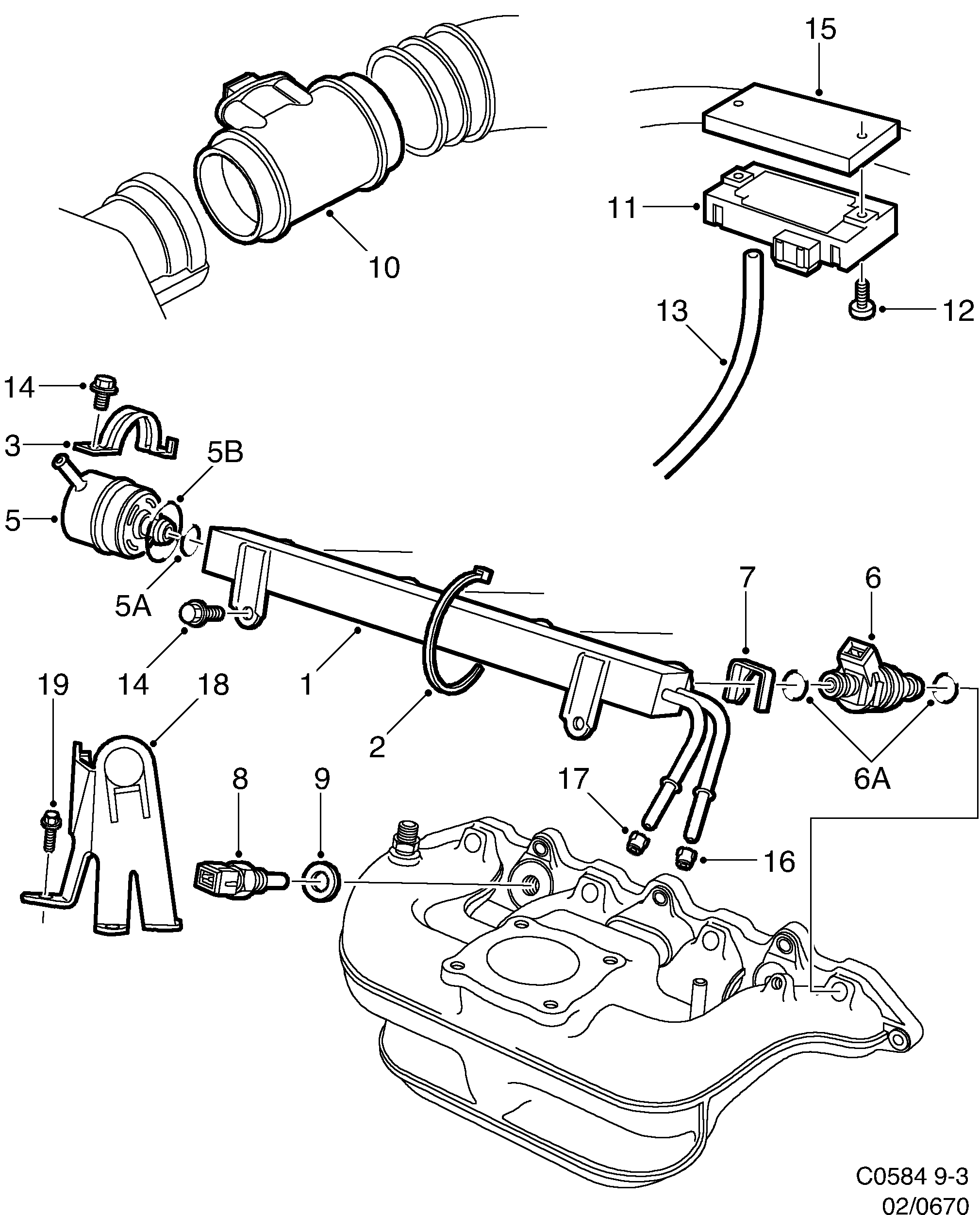

Group 2 Engine, section 670
| Pos | Article | Part No. |
|---|---|---|
| 1 | Distribution pipe | 9171539 |
| 1 | Distribution pipe | 9192493 |
| 1 | Distribution pipe | 30587777 (replaces 9199308) |
| 2 | Tie strap | 7971872 |
| 3 | Clamp | 9542424 (replaces 4503819) |
| 3 | Clamp | 9542424 |
| 5 | Fuel pressure regulator | 9118850 (replaces 4503793) |
| 5 | Fuel pressure regulator | 9118850 (replaces 9483538) |
| 5A | Washer | 90511960 |
| 5B | O-ring | 90511961 |
| 6 | Injector | 9142423 |
| 6 | Injector | 30551847 (replaces 9142449) |
| 6 | Injection valve | 9188707 |
| 6 | Injection valve | 55557323 (replaces 9181322) |
| 6A | O-ring | 90541910 (replaces 9197716) |
| 7 | Clamp | 9356486 |
| 7 | Clamp | 9356486 (replaces 9175464) |
| 7 | Clamp | 55559480 (replaces 9198342) |
| 8 | Temperature sensor | 15393755 (replaces 9177213) |
| 8 | Temperature sensor | 15393755 (replaces 5959283) |
| 9 | Seal | 4443883 (replaces 4159265) |
| 11 | Charge Air Absolute Pressure Sensor | 9132374 |
| 12 | Screw | 7982192 |
| 13 | Vaccum hose | 4164141 |
| 13 | Vaccum hose | 9136243 |
| 14 | Screw | 11900353 (replaces 7978091) |
| 15 | Protecting cover | 4239968 |
| 16 | Bushing | 4229738 |
| 17 | Bushing | 4229746 |
| 18 | Bracket | 55558301 (replaces 9175035) |
| 19 | Screw | 11900354 (replaces 7978109) |
| 19 | Screw | 7972466 |
