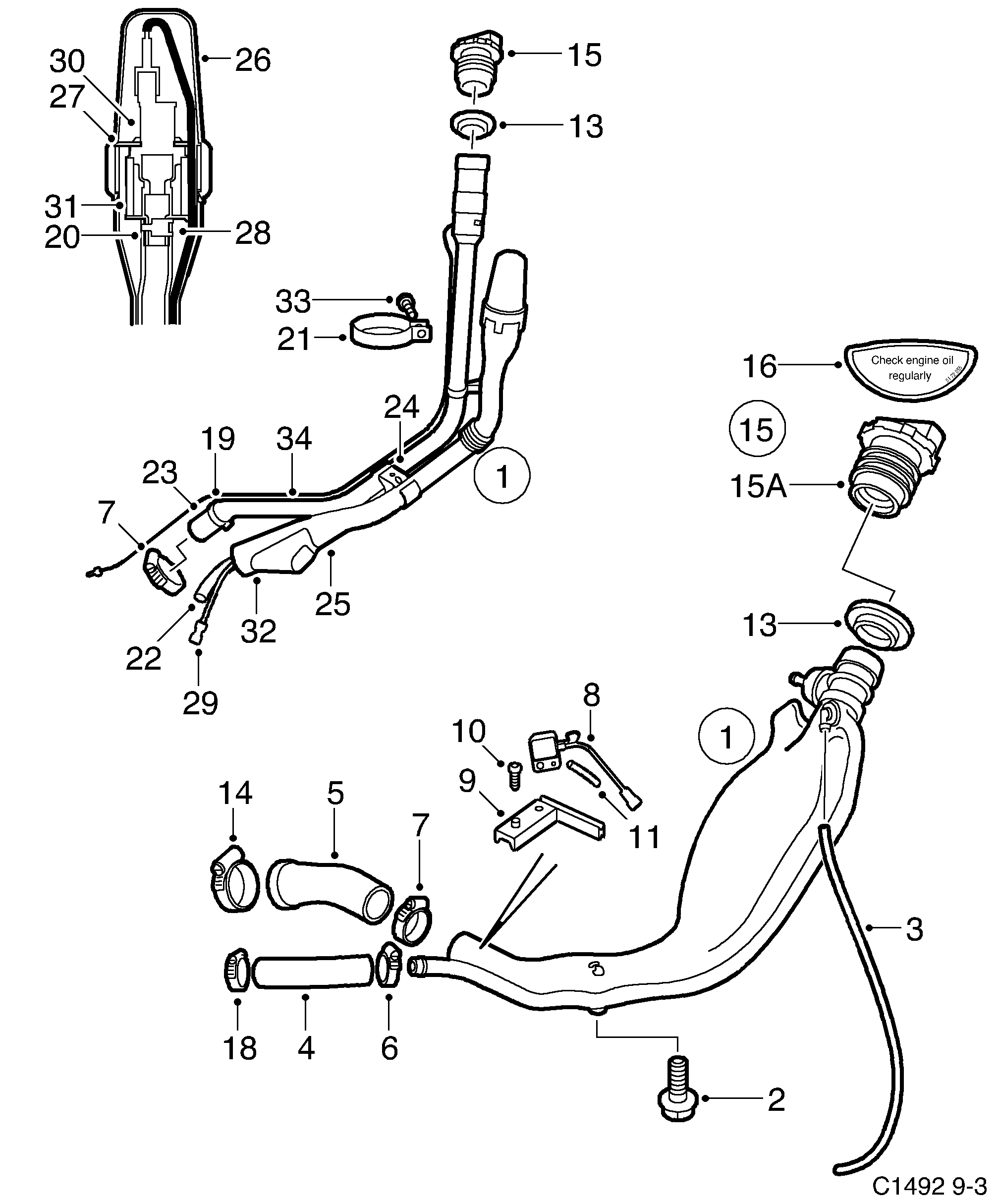

Group 2 Engine, section 530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Filler pipe | 5322292 (replaces 4727210) |
| 1 | Filler pipe | 5322300 (replaces 4726592) |
| 1 | Filler pipe | 5194154 (replaces 4727632) |
| 1 | Filler pipe | 4397030 |
| 1 | Filler pipe | 5462346 (replaces 4445979) |
| 1 | Filler pipe | 4622593 |
| 2 | Screw | 92152212 (replaces 4940896) |
| 3 | Hose | 4445631 |
| 4 | Hose | 4440244 |
| 4 | Hose | 4394508 |
| 5 | Hose | 4622015 |
| 5 | Hose | 4727269 |
| 6 | Hose clamp | 4526836 |
| 7 | Hose clamp | 4622304 |
| 7 | Hose clamp | 4940029 |
| 9 | Bracket | 4396263 |
| 10 | Screw | 7967771 |
| 11 | Hose | 4396313 |
| 8 | Charge Air Absolute Pressure Sensor | 4444758 |
| 13 | Sealing collar | 5195201 (replaces 4227294) |
| 13 | Sealing collar | 5195201 |
| 15A | Filler cap | 4397048 |
| 15A | Filler cap | 4727038 |
| 15 | Filler cap | 5336060 |
| 15A | Filler cap | 5336052 |
| 16 | Label | 5172655 |
| 19 | Hose clamp | 4441697 |
| 20 | Hose clamp | 90467194 (replaces 4576583) |
| 21 | Hose clamp | 5193594 (replaces 4727236) |
| 22 | Hose | 5193586 (replaces 4727251) |
| 24 | Hose clamp | 4728093 |
| 25 | Air tube | 5195300 (replaces 4728507) |
| 26 | Cover | 4728515 |
| 27 | Washer | 4728523 |
| 28 | Filter retainer | 4728531 |
| 29 | Connection | 4728549 |
| 30 | Shut-off valve | 4966826 (replaces 4729091) |
| 31 | Filter | 4729109 |
| 32 | Seal | 4876025 |
| 33 | Screw | 4940631 |
| 34 | Hose | 4961561 |
| 34 | Hose | 4961702 |
