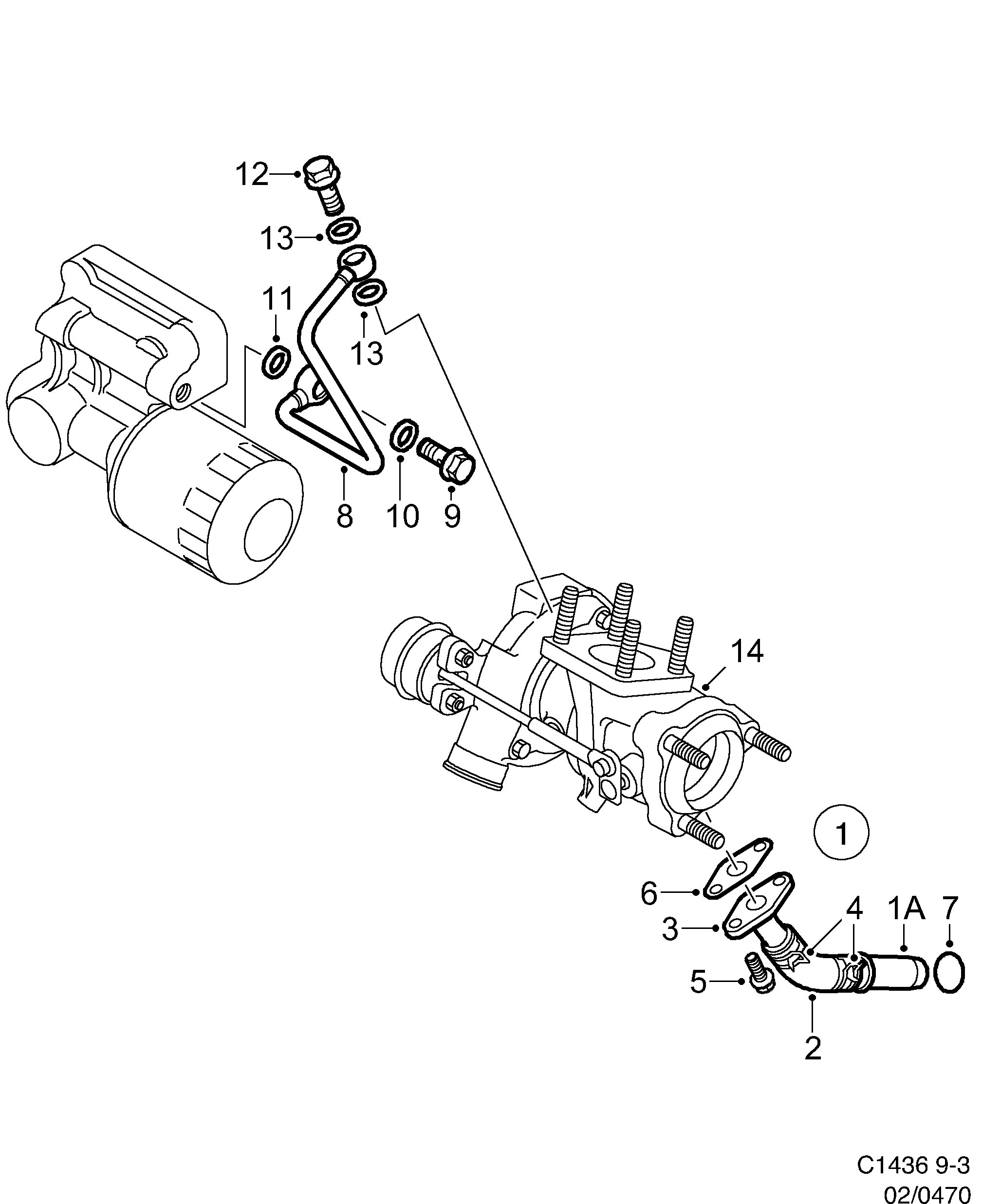

Group 2 Engine, section 470
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tube | 9172156 |
| 1 | Tube | 9179334 |
| 1A | Tube | 30572378 (replaces 9180522) |
| 2 | Hose | 9188657 |
| 3 | Tube | 9180514 |
| 3 | Tube | 9174939 |
| 4 | Hose clamp | 4576591 |
| 1 | Tube | 9188178 |
| 1 | Tube | 9188335 |
| 5 | Screw | 7985930 |
| 5 | Screw | 11098741 (replaces 4348710) |
| 6 | Gasket | 55563093 (replaces 9107582) |
| 7 | O-ring | 7502263 |
| 8 | Tube | 55559432 (replaces 9172149) |
| 8 | Tube | 55559429 (replaces 9179458) |
| 9 | Banjo screw | 90490325 (replaces 9143967) |
| 10 | Gasket | 92150435 (replaces 8124141) |
| 11 | Seal | 4161162 (replaces 8326712) |
| 12 | Banjo screw | 90490324 (replaces 9136524) |
| 13 | Gasket | 11066422 (replaces 8124133) |
