Saab 9-3 (9400) 1998-2002 Oil pump

Group 2 Engine, section 420

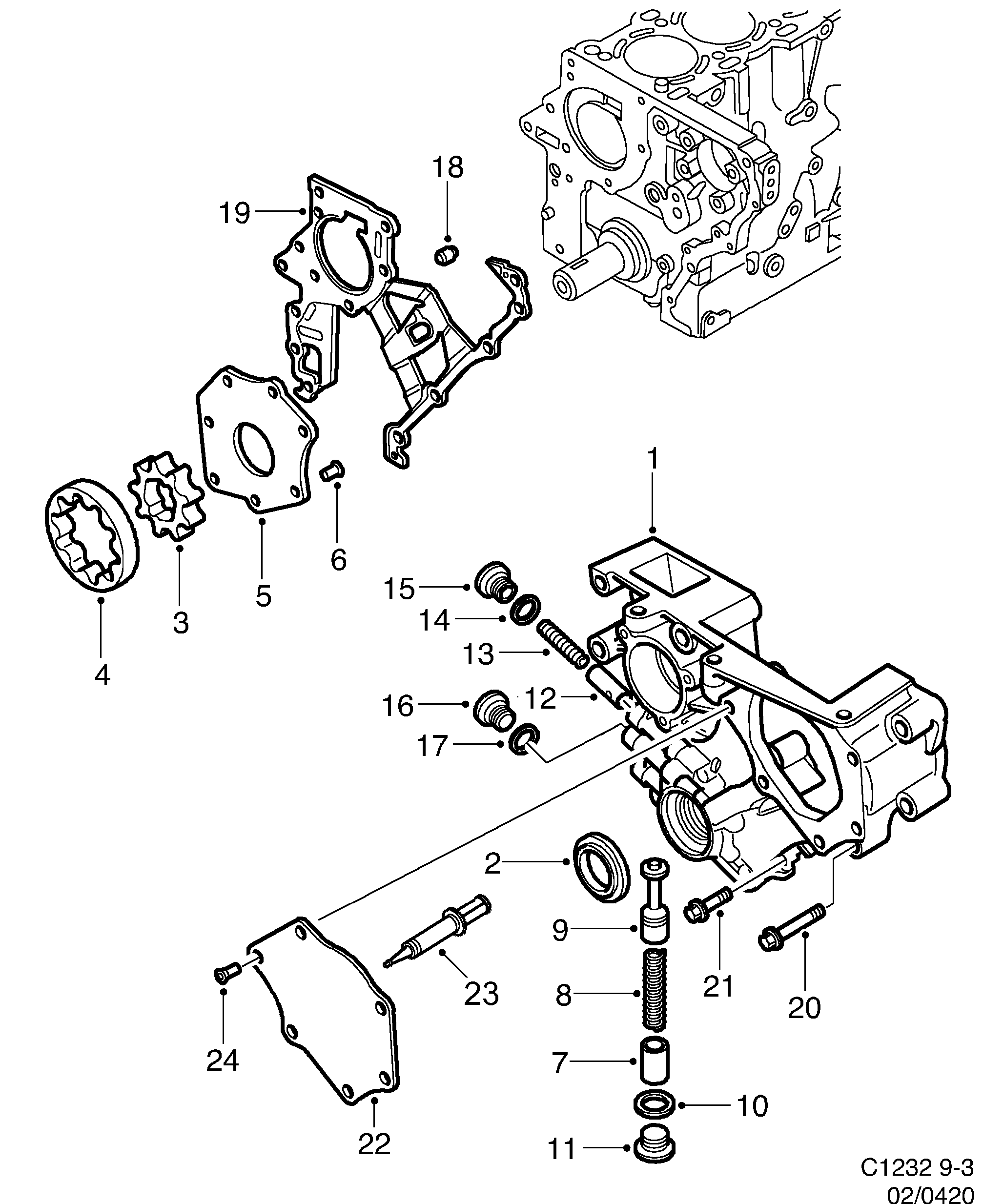

Saab 9-3 (9400) Oil pump diagram

Pos	Article	Part No.
1	Cover	24426999 (replaces 4772554)
1	Cover	24426999 (replaces 9543448)
2	Seal	90500805 (replaces 9543455)
3	Pump rotor	9129051 (replaces 4772588)
3	Pump rotor	9228266 (replaces 9543505)
4	Pump rotor	9129050 (replaces 4772570)
4	Pump rotor	9228265
5	Oil pump housing	9129049 (replaces 9543513)
6	Screw	11093893 (replaces 4772604)
6	Screw	11093893 (replaces 9544107)
7	Piston	90502640 (replaces 9543547)
8	Spring	90502641 (replaces 9543554)
9	Piston	90502639 (replaces 9543539)
10	Seal	11093042 (replaces 9148404)
11	Plug	11097551 (replaces 9543562)
12	Piston	90502642 (replaces 9543570)
13	Spring	90502643 (replaces 9543588)
14	Sealing ring	11016282 (replaces 9544628)
15	Plug	90528616 (replaces 4772687)
16	Plug	11097541 (replaces 4348124)
17	Gasket	11017111 (replaces 4345377)
18	Roll pin	90281475 (replaces 9542853)
19	Gasket	9202219 (replaces 4772745)
19	Gasket	9202219 (replaces 4773727)
20	Screw	11093792 (replaces 4347340)
20	Screw	11093792 (replaces 9542846)
21	Screw	11093971 (replaces 4770038)
22	Cover	90530170 (replaces 9544099)
23	Gasket	93165267 (replaces 93160951)
