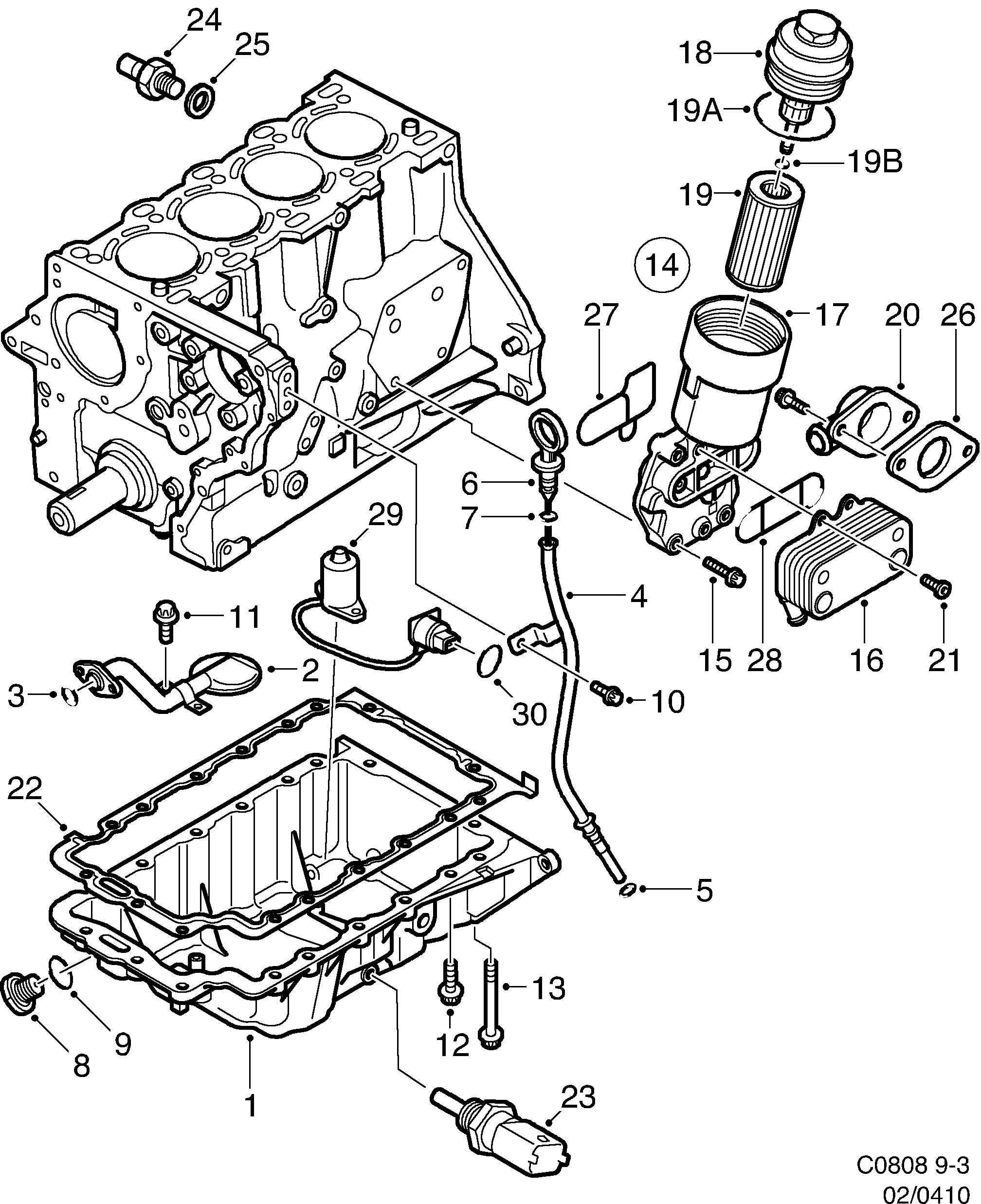

Group 2 Engine, section 410
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil pan | 24407642 (replaces 5336565) |
| 1 | Oil pan | 9196548 (replaces 9549171) |
| 1 | Oil pan | 9196548 (replaces 5341433) |
| 2 | Oil pipe | 90502189 (replaces 9543372) |
| 3 | Sealing ring | 90502613 (replaces 9543380) |
| 4 | Oil-level tube | 9240117 (replaces 4772067) |
| 4 | Oil-level tube | 9240117 (replaces 4773891) |
| 4 | Oil-level tube | 24447019 (replaces 9543653) |
| 4 | Oil-level tube | 24447019 (replaces 5342274) |
| 5 | O-ring | 90467275 (replaces 4620258) |
| 6 | Dipstick | 5344080 (replaces 4773503) |
| 6 | Dipstick | 5344080 |
| 6 | Dipstick | 13105613 (replaces 9543661) |
| 6 | Dipstick | 13105613 (replaces 5341466) |
| 7 | O-ring | 90529866 (replaces 9190679) |
| 8 | Screw plug | 96023264 (replaces 9543356) |
| 9 | Sealing ring | 90528145 (replaces 9543364) |
| 10 | Screw | 11093971 (replaces 4770038) |
| 10 | Screw | 11093971 (replaces 4502076) |
| 10 | Hexagon screw | 11092981 (replaces 9543232) |
| 12 | Screw | 4772034 |
| 13 | Screw | 11093981 (replaces 4502217) |
| 13 | Screw | 11093981 |
| 14 | Filter | 9543679 |
| 15 | Screw | 11096082 (replaces 9543158) |
| 16 | Oil cooler | 9117318 (replaces 4772133) |
| 17 | Filter housing | 9117792 (replaces 4772141) |
| 18 | Cover | 9117320 (replaces 9543711) |
| 19 | Filter insert | 9117321 (replaces 4772166) |
| 19A | O-ring | 90571726 (replaces 9543729) |
| 19B | O-ring | 90571727 (replaces 9543745) |
| 20 | Junction pipe | 90573185 (replaces 9543752) |
| 21 | Hexagon screw | 11094891 (replaces 4348074) |
| 21 | Screw | 90571729 (replaces 9543703) |
| 22 | Gasket | 90502195 (replaces 9543422) |
| 23 | Engine coolant temperature sensor | 9198691 (replaces 9543406) |
| 23 | Engine oil temperature sensor | 9198691 (replaces 5341391) |
| 24 | Engine oil pressure sensor | 55354378 (replaces 4770186) |
| 25 | Sealing ring | 11016282 (replaces 9544628) |
| 26 | O-ring | 9119844 (replaces 4773735) |
| 27 | Gasket | 90571725 (replaces 9543737) |
| 28 | Gasket | 90571728 (replaces 9543695) |
| 29 | Sensor, oil lever | 13105597 (replaces 9543398) |
| 29 | Sensor, oil lever | 13105597 (replaces 5341441) |
| 30 | Lock ring | 55565455 (replaces 11094181) |
