Saab 9-3 (9400) 1998-2002 Crankshaft Piston

Group 2 Engine, section 380

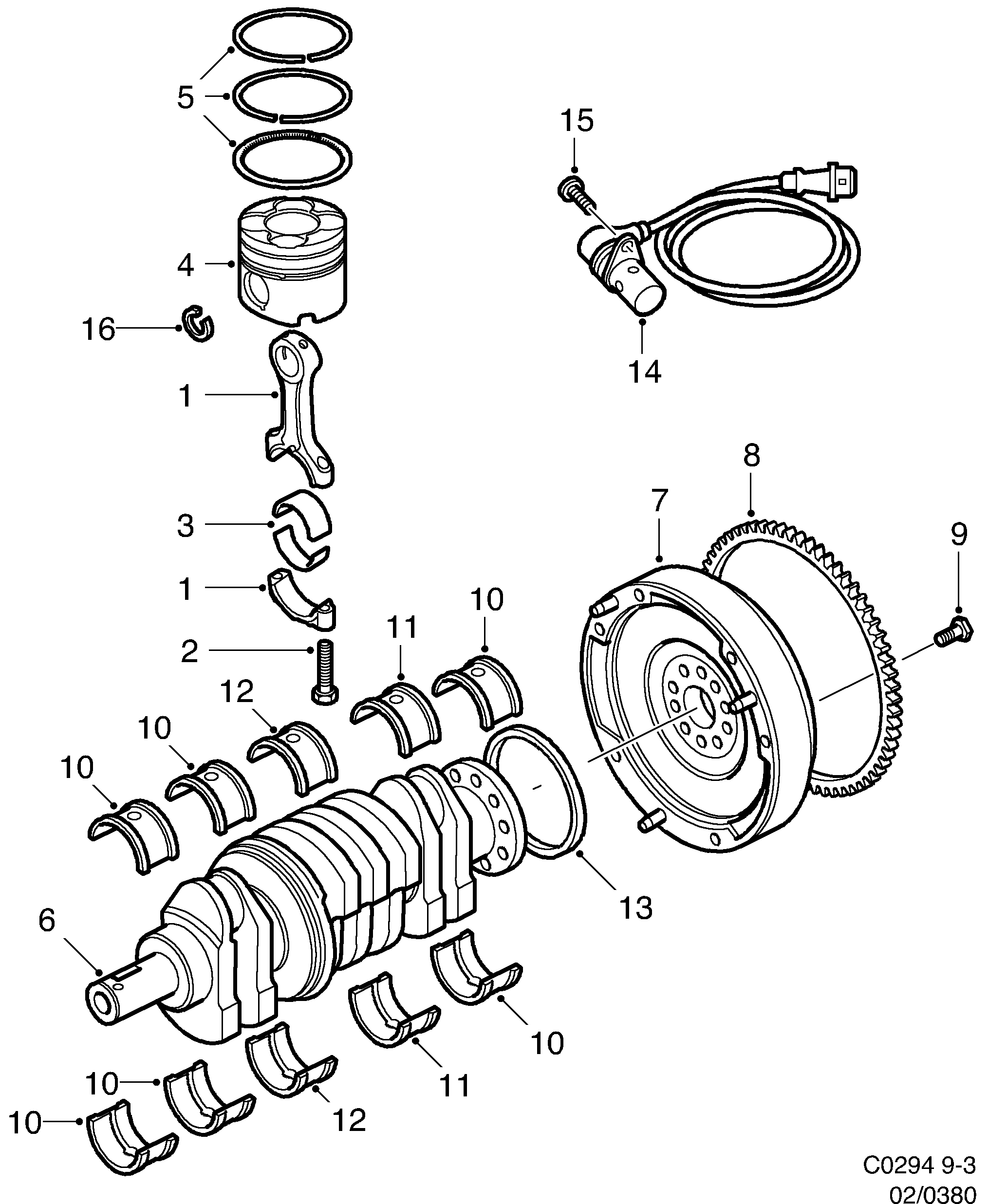

Saab 9-3 (9400) Crankshaft Piston diagram

Pos	Article	Part No.
1	Connecting rod	90528646 (replaces 9543349)
2	Screw	90467192 (replaces 4501789)
3	Con.bearing	93170296 (replaces 4771796)
3	Con.bearing	93170297 (replaces 4771820)
3	Con.bearing	93170298 (replaces 4773610)
4	Piston	9129282 (replaces 4773693)
4	Piston	9158545 (replaces 5342266)
4	Piston	9129283
4	Piston	9128049 (replaces 4773669)
4	Piston	9158546 (replaces 5342282)
4	Piston	9129284
4	Piston	9128050 (replaces 4773677)
4	Piston	9158547
4	Piston	4771879
4	Piston	5342415
4	Piston	5342191
4	Piston	9129286
4	Piston	9128052
5	Piston ring kit	9117821 (replaces 4771895)
5	Piston ring kit	9196520 (replaces 4774295)
5	Piston ring kit	4771903
5	Piston ring kit	9196523 (replaces 4774287)
6	Crankshaft	24439871
6	Crankshaft	24439871 (replaces 9544693)
6	Crankshaft	24439871 (replaces 5342027)
7	Flywheel	90502913 (replaces 9543091)
8	Gear ring	90502874 (replaces 4771168)
9	Screw	90540466 (replaces 9543109)
10	Main bearing	93170278 (replaces 4771192)
10	Main bearing	93170279 (replaces 4771242)
10	Main bearing	93170280 (replaces 4771291)
11	Main bearing	93170284 (replaces 4771341)
11	Main bearing	93170285 (replaces 4771374)
11	Main bearing	93170286 (replaces 4771408)
12	Main bearing	93170320 (replaces 4771432)
12	Main bearing	93170321 (replaces 4771481)
12	Main bearing	93170322 (replaces 90543606)
13	Sealing ring	90570322 (replaces 9543083)
14	Crankshaft position sensor	90540188 (replaces 9544560)
15	Screw	11093881 (replaces 4503405)
16	Lock ring	90500815 (replaces 9549015)
