Saab 9-3 (9400) 1998-2003 Transmission

Group 2 Engine, section 310

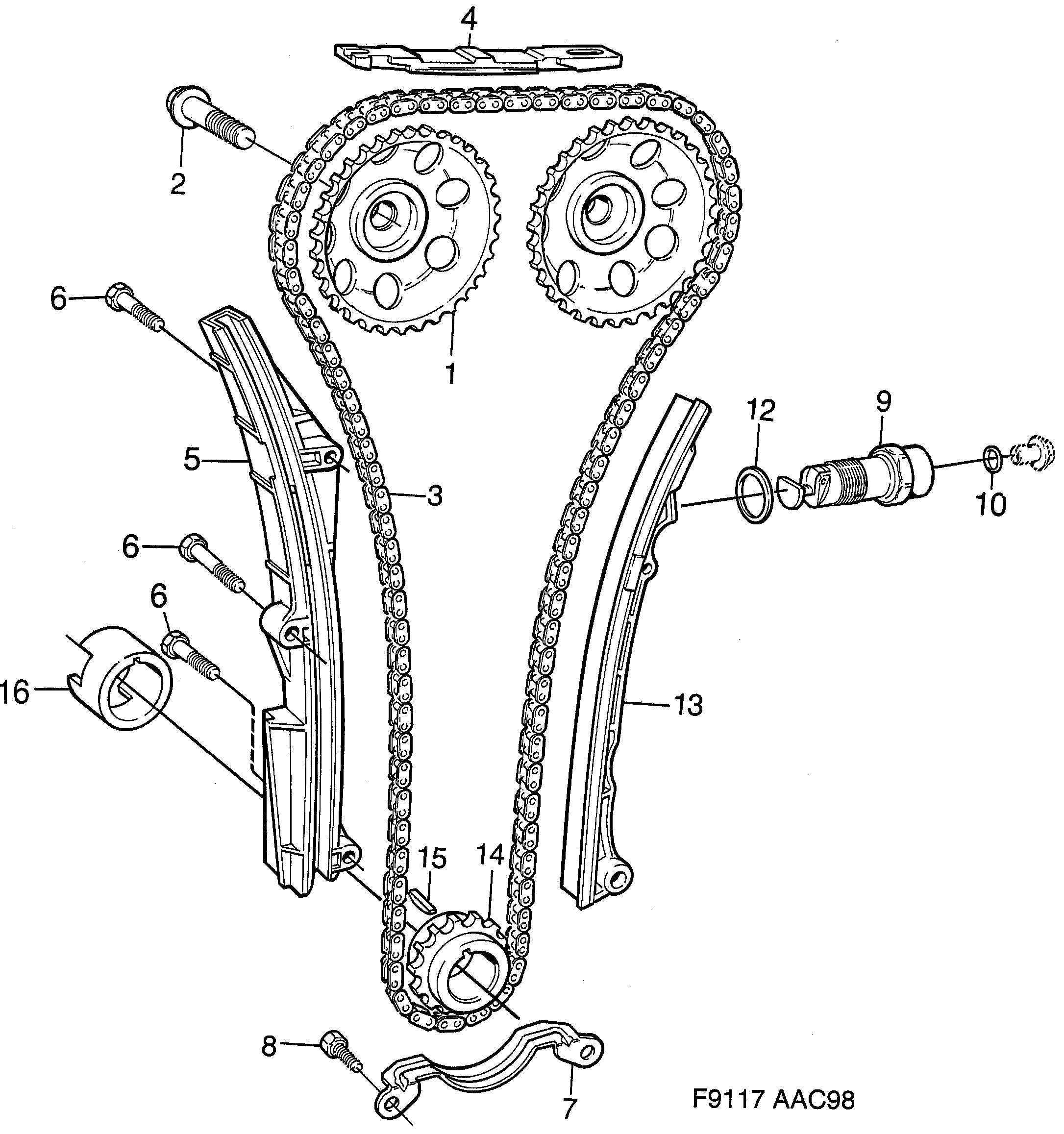

Saab 9-3 (9400) Transmission diagram

Pos	Article	Part No.
1	Chain gear	9115205
2	Screw	9107541
3	Chain	9131145
3	Chain	9321845
4	Chain guide	30518277 (replaces 8859324)
5	Chain guide	55557270 (replaces 9145350)
6	Hexagon screw	92150006 (replaces 7978141)
7	Chain protection	9136532
8	Screw	11900353 (replaces 7978091)
9	Chain tensioner	7585086
10	O-ring	8048670
12	Seal	7508690
13	Chain guide	55557269 (replaces 9145376)
14	Chain gear	30520419 (replaces 9115197)
15	Key	30520452 (replaces 9116864)
