Saab 9-3 (9400) 1998-2003 Belt tensioner

Group 2 Engine, section 280

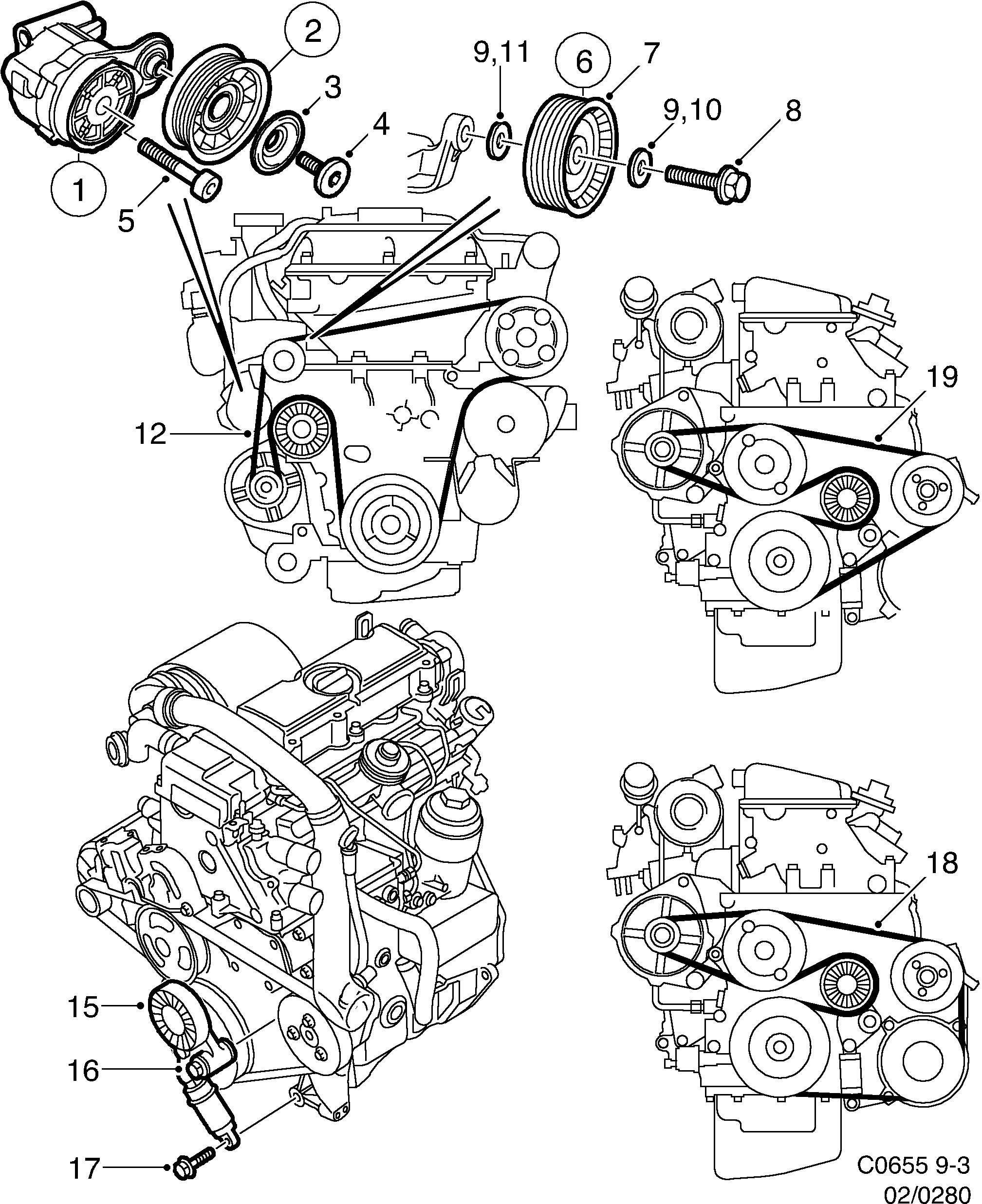

Saab 9-3 (9400) Belt tensioner diagram

Pos	Article	Part No.
1	Belt tensioner	4898755
2	Tension pulley	5172309
3	Washer	4752895
4	Screw	5172291
5	Screw	55562633 (replaces 4940367)
6	Idler pulley	4356127
8	Screw	4940847
9	Bearing shield	4961959
6	Idler pulley	55562635 (replaces 4967907)
7	Idler pulley	4968590
8	Screw	4968608
10	Bearing shield	4968616
11	Bearing shield	4968624
12	Belt	93185050 (replaces 4961066)
12	Belt	93185050
12	Belt	4961058
15	Belt tensioner	9180809 (replaces 4575478)
15	Belt tensioner	9180809 (replaces 5342456)
16	Screw	7979206
17	Hexagon screw	11900367 (replaces 7978216)
18	Belt	24452030 (replaces 4575528)
18	Belt	24452030 (replaces 5340534)
19	Belt	24413293 (replaces 4575486)
19	Belt	24413293 (replaces 5340526)
