Saab 9-3 (9400) 1998-2003 Cylinder block

Group 2 Engine, section 220

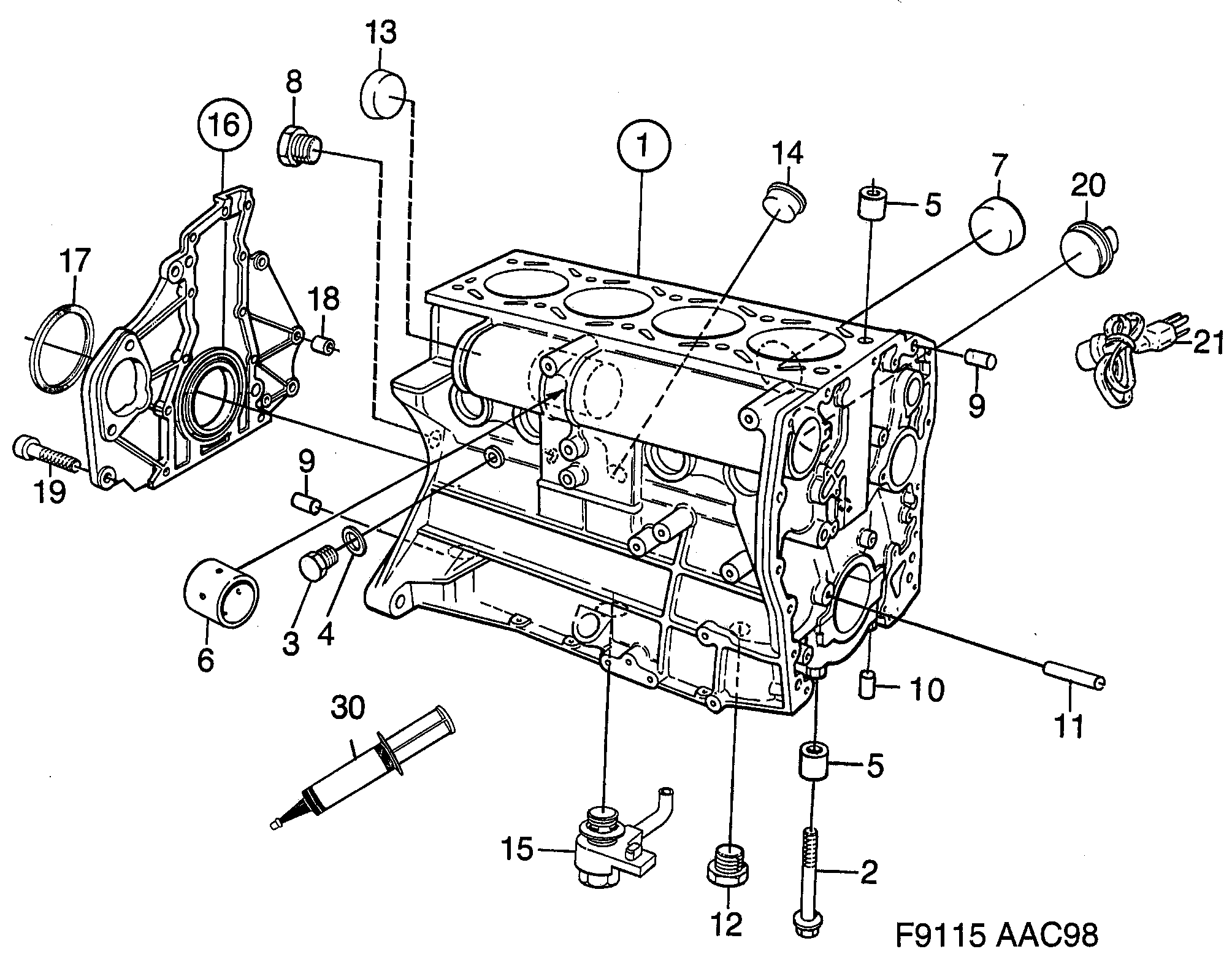

Saab 9-3 (9400) Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	9186610
1	Cylinder block	9186602
1	Cylinder block	9174285
2	Screw	9128687
3	Plug	7563042 (replaces 8123721)
3	Plug	5125232
4	Gasket	92150435 (replaces 8124141)
5	Guide	8346470
6	Bushing	7588684
7	Sealing washer	7985120
8	Plug	8348047
9	Guide	7585052
10	Pin	7949548
11	Pin	7950066
12	Plug	30520417 (replaces 9115049)
13	Sealing washer	92151501 (replaces 8123259)
14	Sealing washer	8123218
15	Piston cooling jet	9167677
16	Plate	55557715 (replaces 9174194)
17	Seal	55557240 (replaces 9174202)
18	Guide sleeve	9129800
19	Screw	11900354 (replaces 7978109)
20	Engine heater	4725883
21	Extension cable	4397311
30	Flange sealant	90297970
